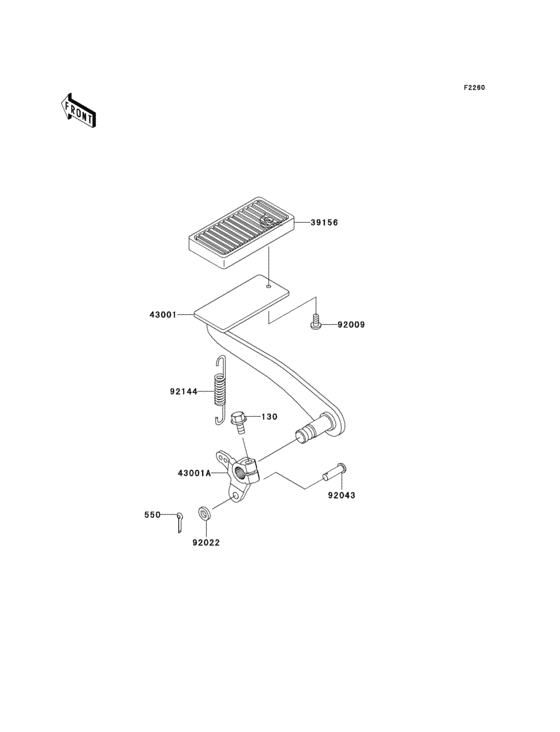

Brake pedal/torque link Diagram Kawasaki VN1500 Vulcan 1500 Classic
- Year
- 2004
- Colour
- Pearl Boulogne / Pearl Alpine White (2S)
- Model code
- VN1500-E7
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0825
BOLT-FLANGED,8X25,BLA
|
130J0825 |
— | ||
| replacements | |||||
|
130
|
130
130BB0825 BOLT-FLANGED,8X25,BLA |
130BB0825 |
from US $1.27 |
||
|
130
|
130
130CB0825 BOLT-FLANGED |
130CB0825 |
from US $1.96 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
|
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15 |
550AA2015 |
from US $0.63 |
||
|
39156
|
39156
39156-1540 PAD,BRAKE PEDAL |
39156-1540 |
from US $12.36 |
||
|
43001
|
43001
43001-1367 LEVER-BRAKE,PEDAL |
43001-1367 |
from US $112.05 |
||
|
43001A
|
43001A
43001-1368 LEVER-BRAKE |
43001-1368 |
from US $37.10 |
||
|
92009
|
92009
92009-1677 SCREW,6X8,BLACK |
92009-1677 |
from US $2.69 |
||
|
92022
|
92022
92022-1582
WASHER-PLAIN-SMALL,8M
|
92022-1582 |
— | ||
| replacement | |||||
|
92022
|
92022
410AA0800 WASHER-PLAIN-SMALL,8M |
410AA0800 |
from US $0.63 |
||
|
92043
|
92043
92043-1013 PIN |
92043-1013 |
from US $6.65 |
||
|
92144
|
92144
92144-1169 SPRING,BRAKE PEDAL RE |
92144-1169 |
from US $6.34 |
||
