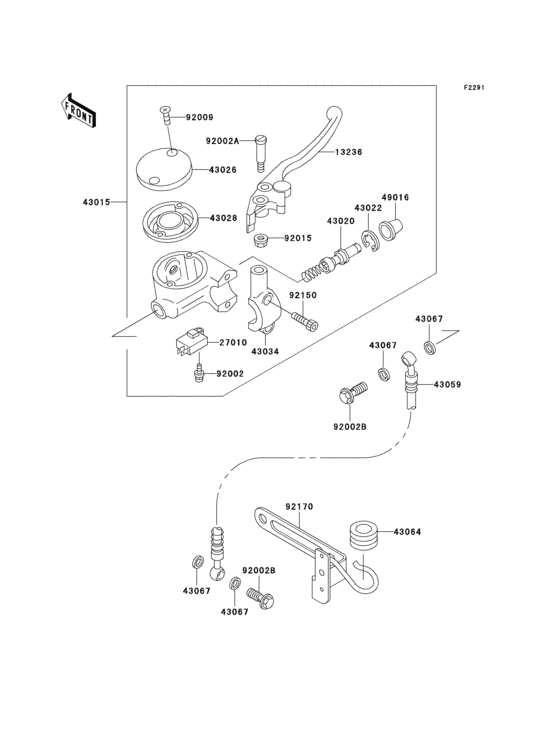

Front master cylinder Diagram Kawasaki VN1500 VN1500 Classic
- Year
- 1998
- Colour
- Candy Amaranth Red Mica / Pearl Ivory (2X)
- Model code
- VN1500-F1
- Sales region
- Austria
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13236
|
13236
13236-1287 LEVER-COMP,FRONT BRAK |
13236-1287 |
from US $40.84 |
||
|
27010
|
27010
27010-1170
SWITCH,BRAKE
|
27010-1170 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0025 SWITCH,BRAKE |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-1623 CYLINDER-ASSY-MASTER, |
43015-1623 |
from US $333.96 |
||
|
43020
|
43020
43020-1098 PISTON-COMP-BRAKE |
43020-1098 |
from US $34.41 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1083 CAP-BRAKE |
43026-1083 |
from US $47.72 |
||
|
43028
|
43028
43028-1071 DIAPHRAGM,MASTER CYLI |
43028-1071 |
from US $20.90 |
||
|
43034
|
43034
43034-1147 HOLDER-BRAKE |
43034-1147 |
from US $36.27 |
||
|
43059
|
43059
43059-1952 Hose-brake,fr |
43059-1952 |
US $112.23 |
||
| replacements | |||||
|
43059
|
43059
43095-1189 HOSE-BRAKE,FR |
43095-1189 |
from US $113.55 |
||
|
43059
|
43059
43095-1185 HOSE-BRAKE,FR |
43095-1185 |
US $129.87 |
||
|
43064
|
43064
43064006 DAMPER RUBBER,CYL HSE |
43064006 |
from US $3.17 |
||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
from US $1.27 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.08 |
||
|
92002
|
92002
92002-1323 BOLT |
92002-1323 |
from US $2.53 |
||
|
92002A
|
92002A
92002-1561 BOLT,LEVER SET |
92002-1561 |
from US $7.13 |
||
|
92002B
|
92002B
92002-1888
BOLT,OIL,L=23
|
92002-1888 |
— | ||
| replacement | |||||
|
92002B
|
92002B
92153-0627 BOLT,OIL,L=23 |
92153-0627 |
from US $2.85 |
||
|
92009
|
92009
92009-1440 SCREW |
92009-1440 |
from US $3.73 |
||
|
92015
|
92015
92015-1528 NUT,FLANGED,6MM |
92015-1528 |
from US $3.17 |
||
|
92150
|
92150
92150-1025 BOLT,SOCKET,6MM |
92150-1025 |
from US $4.44 |
||
|
92170
|
92170
92170-1653 Clamp,hose |
92170-1653 |
US $16.95 |
||
