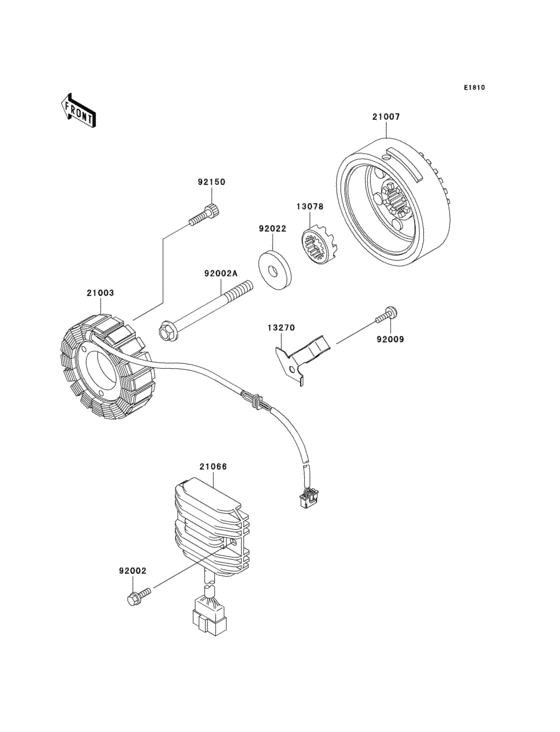

Generator Diagram Kawasaki VN1500 VN1500 Classic
- Year
- 1998
- Colour
- Candy Amaranth Red Mica / Pearl Ivory (2X)
- Model code
- VN1500-F1
- Sales region
- Austria
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13078
|
13078
13078-1056 RATCHET |
13078-1056 |
from US $43.83 |
||
|
13270
|
13270
13270-1727 PLATE |
13270-1727 |
US $8.55 |
||
|
21003
|
21003
21003-1301 STATOR |
21003-1301 |
US $631.12 |
||
| replacement | |||||
|
21003
|
21003
21003-1377 STATOR |
21003-1377 |
from US $463.45 |
||
|
21007
|
21007
21007-1308 ROTOR,GENERATOR |
21007-1308 |
from US $488.39 |
||
|
21066
|
21066
21066-1106 REGULATOR-VOLTAGE |
21066-1106 |
from US $185.86 |
||
|
92002
|
92002
92002-1086 BOLT,6X25 |
92002-1086 |
from US $3.90 |
||
|
92002A
|
92002A
92002-1901 BOLT,GENERATOR,12X112 |
92002-1901 |
from US $26.10 |
||
|
92009
|
92009
92009-1768 SCREW |
92009-1768 |
from US $1.67 |
||
|
92022
|
92022
92022-1904 WASHER,GENERATOR |
92022-1904 |
from US $8.71 |
||
|
92150
|
92150
92150-1484 BOLT,SOCKET,6X35 |
92150-1484 |
from US $3.48 |
||
