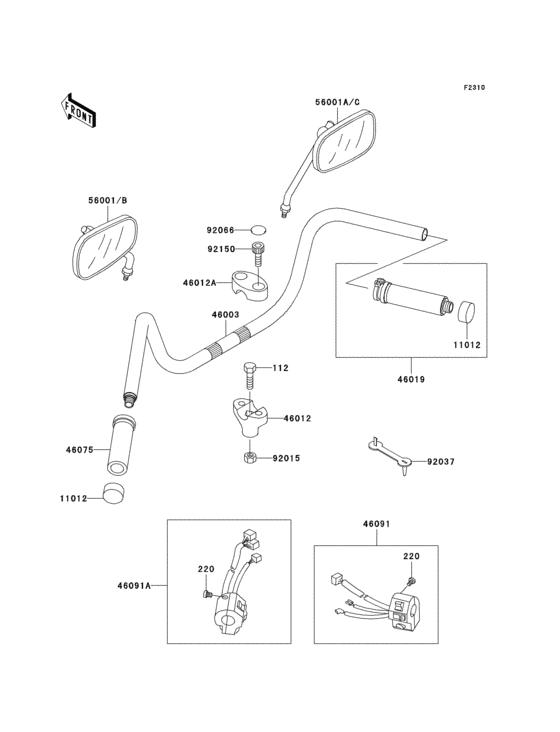

Handlebar Diagram Kawasaki VN1500 VN1500 Classic
- Year
- 1998
- Colour
- Candy Amaranth Red Mica / Pearl Ivory (2X)
- Model code
- VN1500-F1
- Sales region
- Austria
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112H1065 BOLT-UPSET,10X65 |
112H1065 |
from US $2.06 |
||
| replacement | |||||
|
112
|
112
112BA1065 BOLT-UPSET,10X65 |
112BA1065 |
from US $1.74 |
||
|
220
|
220
220E0525 SCREW-PAN-CROSS |
220E0525 |
US $1.43 |
||
|
11012
|
11012
11012-1975 CAP,GRIP END |
11012-1975 |
from US $17.52 |
||
|
46003
|
46003
46003-1479 HANDLE |
46003-1479 |
from US $136.29 |
||
|
46012
|
46012
46012-1272 HOLDER-HANDLE,LWR |
46012-1272 |
from US $73.89 |
||
| replacements | |||||
|
46012
|
46012
46012-0085 HOLDER-HANDLE,LWR |
46012-0085 |
from US $72.86 |
||
|
46012
|
46012
92154-0350 BOLT,SOCKET,10X25 |
92154-0350 |
from US $2.22 |
||
|
46012A
|
46012A
46012-1273 HOLDER-HANDLE,UPP |
46012-1273 |
from US $34.86 |
||
|
46019
|
46019
46019-1086 GRIP-ASSY,THROTTLE |
46019-1086 |
US $64.12 |
||
| replacement | |||||
|
46019
|
46019
46019-1109 GRIP-ASSY,THROTTLE |
46019-1109 |
from US $53.48 |
||
|
46075
|
46075
46075-1074 GRIP,LH |
46075-1074 |
from US $19.64 |
||
| replacement | |||||
|
46075
|
46075
46075-0652 GRIP, LH |
46075-0652 |
from US $22.40 |
||
|
46091
|
46091
46091-1719
Housing-assy-control,
|
46091-1719 |
— | ||
|
46091A
|
46091A
46091-1724 HOUSING-ASSY-CONTROL, |
46091-1724 |
US $239.49 |
||
|
56001B
|
56001B
56001-1453 MIRROR-ASSY,LH |
56001-1453 |
from US $77.96 |
||
|
56001C
|
56001C
56001-1454 MIRROR-ASSY,RH |
56001-1454 |
from US $77.96 |
||
|
92015
|
92015
92015-1717 NUT,LOCK,FLANGED,10MM |
92015-1717 |
from US $6.34 |
||
|
92037
|
92037
92037-1903 CLAMPL=80.5 |
92037-1903 |
from US $5.23 |
||
|
92066
|
92066
92066-1285 PLUG |
92066-1285 |
from US $5.23 |
||
|
92150
|
92150
92150-1942 BOLT,SOCKET,10X23 |
92150-1942 |
from US $3.96 |
||
