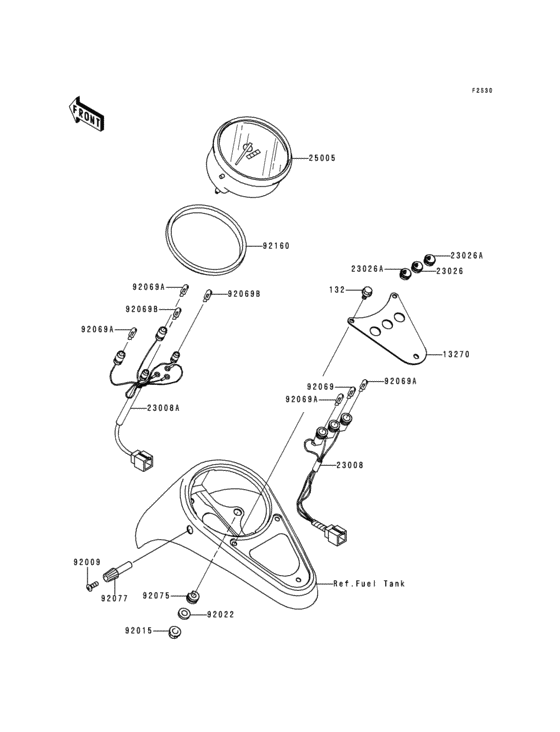

Meter(s) Diagram Kawasaki VN1500 VN1500 Classic
- Year
- 1999
- Colour
- Candy Ivy Green / Pearl Gentry Gray (99)
- Model code
- VN1500-F2
- Sales region
- Austria
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132E0612 BOLT-FLANGED-SMALL |
132E0612 |
from US $0.95 |
||
| replacement | |||||
|
132
|
132
92002-1608 BOLT |
92002-1608 |
from US $3.11 |
||
|
13270
|
13270
13270-1590 PLATE,PILOT LAMP |
13270-1590 |
from US $45.34 |
||
|
23008
|
23008
23008-1546 SOCKET-ASSY,PILOT LAM |
23008-1546 |
US $28.12 |
||
|
23008A
|
23008A
23008-1601 SOCKET-ASSY,SPEEDOMET |
23008-1601 |
US $76.45 |
||
|
23026
|
23026
23026-1171 LENS,GREEN |
23026-1171 |
from US $5.07 |
||
|
23026A
|
23026A
23026-1173 LENS,RED |
23026-1173 |
from US $5.23 |
||
|
25005
|
25005
25005-1651 Speedometer,kph |
25005-1651 |
US $453.50 |
||
|
92009
|
92009
92009-1799 SCREW,3X8 |
92009-1799 |
from US $2.69 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92022
|
92022
92022-263 WASHER,PLAIN,6MM |
92022-263 |
from US $2.19 |
||
|
92069
|
92069
92069-1007 BULB,12V3.4W |
92069-1007 |
from US $3.33 |
||
|
92069A
|
92069A
92069-1059 BULB,12V 1.7W |
92069-1059 |
from US $3.33 |
||
|
92069B
|
92069B
92069-1068 BULB,14V 3W |
92069-1068 |
from US $3.33 |
||
|
92075
|
92075
92075-1209 DAMPER RUBBER,METER |
92075-1209 |
US $3.96 |
||
|
92077
|
92077
92077-1117 KNOB,TRIP |
92077-1117 |
from US $22.14 |
||
|
92160
|
92160
92160-1713 DAMPER,METER |
92160-1713 |
from US $21.84 |
||
