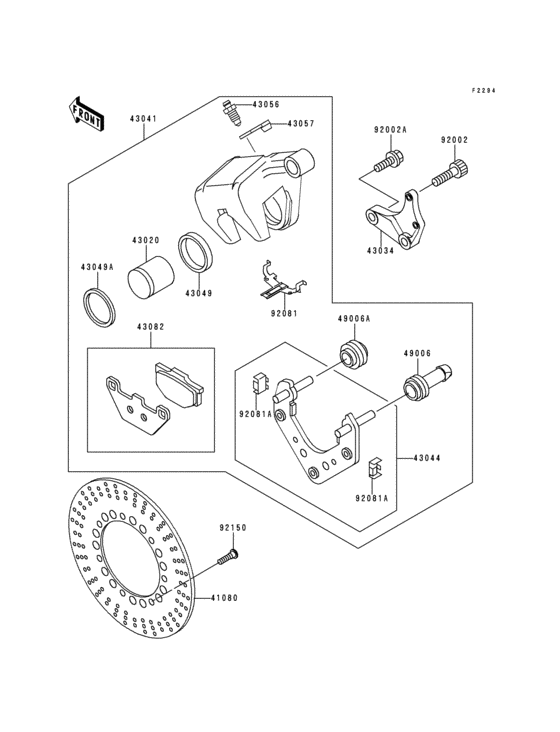

Rear brake Diagram Kawasaki VN1500 VN1500 Classic
- Year
- 1999
- Colour
- Candy Ivy Green / Pearl Gentry Gray (99)
- Model code
- VN1500-F2
- Sales region
- Austria
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-1378-CM DISC,RR,SILVER NO.1 |
41080-1378-CM |
from US $335.41 |
||
|
43020
|
43020
43020-1066 PISTON-COMP-BRAKE |
43020-1066 |
from US $75.85 |
||
|
43034
|
43034
43034-1080 Holder-brake,rear cal |
43034-1080 |
from US $142.27 |
||
|
43041
|
43041
43041-1598-GN CALIPER-ASSY,RR,SILVE |
43041-1598-GN |
from US $455.93 |
||
|
43044
|
43044
43044-1103 HOLDER-COMP-CALIPER,R |
43044-1103 |
from US $148.10 |
||
|
43049
|
43049
43049002
PACKING,PISTON SEAL
|
43049002 |
— | ||
| replacement | |||||
|
43049
|
43049
43049-1098 PACKING,PISTON SEAL |
43049-1098 |
from US $8.78 |
||
|
43049A
|
43049A
43049-1028 PACKING,PISTON |
43049-1028 |
from US $9.66 |
||
|
43056
|
43056
43056-1054
Breather-brake
|
43056-1054 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $14.69 |
||
|
43057
|
43057
43057-003 CAP,BREEDER |
43057-003 |
from US $3.01 |
||
|
43082
|
43082
43082-1194 PAD-ASSY-BRAKE |
43082-1194 |
from US $67.35 |
||
|
49006
|
49006
49006-1094 BOOT,CALIPER |
49006-1094 |
from US $8.87 |
||
|
49006A
|
49006A
49006-1095 BOOT,CALIPER |
49006-1095 |
from US $4.91 |
||
|
92002
|
92002
92002-1713 BOLT,SOCKET,10X17 |
92002-1713 |
from US $3.96 |
||
|
92002A
|
92002A
92002-1969 BOLT,FLANGED,12X40 |
92002-1969 |
from US $6.02 |
||
|
92081
|
92081
92081-1525 SPRING,PAD |
92081-1525 |
from US $13.15 |
||
|
92081A
|
92081A
92081-1661 SPRING,PAD STOPPER |
92081-1661 |
from US $8.24 |
||
|
92150
|
92150
92150-1771 BOLT,SOCKET,8X30 |
92150-1771 |
US $6.05 |
||
| replacement | |||||
|
92150
|
92150
92154-1865 BOLT,SOCKET,8X30 |
92154-1865 |
from US $2.85 |
||
