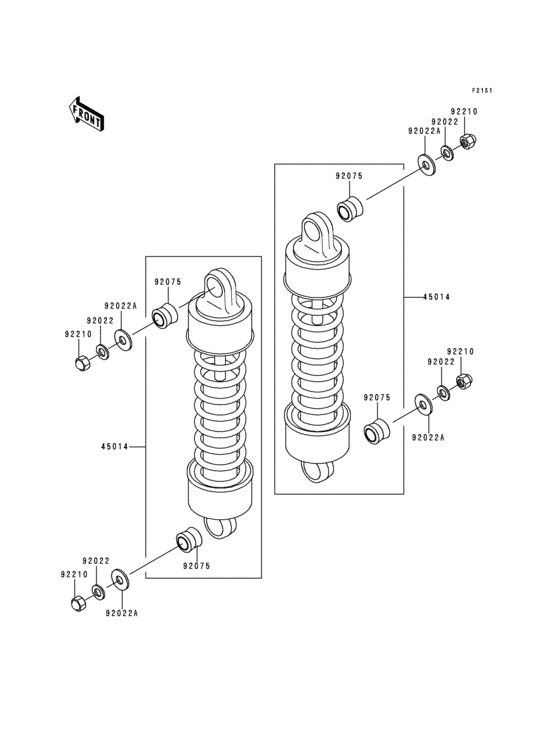

Suspension/shock absorber Diagram Kawasaki VN1500 VN1500 Classic
- Year
- 1999
- Colour
- Candy Ivy Green / Pearl Gentry Gray (99)
- Model code
- VN1500-F2
- Sales region
- Austria
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45014
|
45014
45014-1719 Shock Absorber |
45014-1719 |
from US $662.11 |
||
|
92022
|
92022
92022-1540 WASHER,SPRING,10MM |
92022-1540 |
from US $2.85 |
||
|
92022A
|
92022A
92022-246 WASHER,PLAIN,10MM |
92022-246 |
from US $3.80 |
||
|
92075
|
92075
92075-1387 Dampers, shock absorbers |
92075-1387 |
from US $9.35 |
||
|
92210
|
92210
92210-1128 NUT,CAP,10MM |
92210-1128 |
from US $1.74 |
