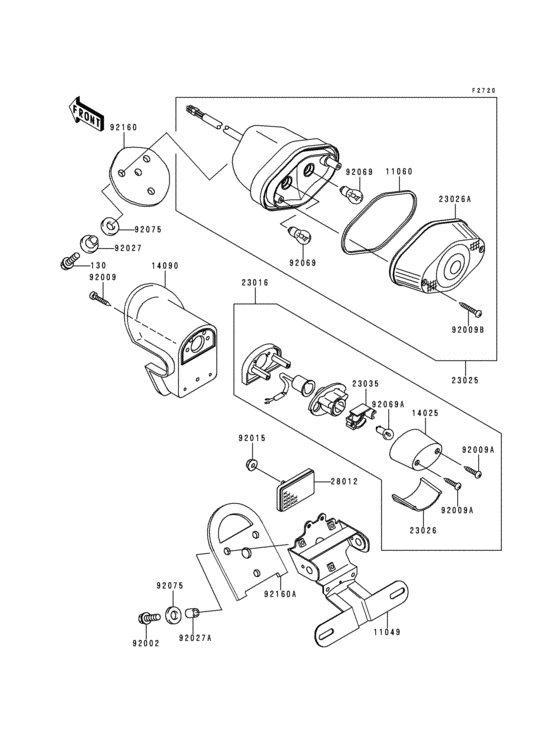

Taillight(s) Diagram Kawasaki VN1500 VN1500 Classic
- Year
- 1999
- Colour
- Candy Ivy Green / Pearl Gentry Gray (99)
- Model code
- VN1500-F2
- Sales region
- Austria
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic/ VN1500 Classic
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130H0622 BOLT-FLANGED,6X22 |
130H0622 |
US $2.02 |
||
| replacement | |||||
|
130
|
130
130BA0622 BOLT-FLANGED,6X22 |
130BA0622 |
from US $0.79 |
||
|
11049
|
11049
11049-1606
Bracket,license plate
|
11049-1606 |
— | ||
|
11060
|
11060
11060-1727
Gasket,tail lamp
|
11060-1727 |
— | ||
|
14025
|
14025
14025-1725 COVER,LICENSE LAMP |
14025-1725 |
from US $13.15 |
||
|
14090
|
14090
14090-1696
Cover,license lamp
|
14090-1696 |
— | ||
|
23016
|
23016
23016-1155
Lamp-assy,license
|
23016-1155 |
— | ||
|
23025
|
23025
23025-1253 Lamp-tail |
23025-1253 |
US $181.96 |
||
|
23026
|
23026
23026-1064
LENS,LICENSE LAMP
|
23026-1064 |
— | ||
| replacement | |||||
|
23026
|
23026
23026-0021 LENS,LICENSE LAMP |
23026-0021 |
from US $19.32 |
||
|
23026A
|
23026A
23026-1187 Lens,tail lamp |
23026-1187 |
US $58.78 |
||
|
23035
|
23035
23035-1066 REFLECTOR-LAMP,LICENS |
23035-1066 |
from US $14.10 |
||
|
28012
|
28012
28012-1078 Reflector-reflex |
28012-1078 |
from US $17.74 |
||
| replacement | |||||
|
28012
|
28012
28012-1088 Reflector-reflex |
28012-1088 |
from US $17.58 |
||
|
92002
|
92002
92002-1262
BOLT,6X22
|
92002-1262 |
— | ||
| replacement | |||||
|
92002
|
92002
92001-1774 BOLT,6X22 |
92001-1774 |
from US $0.63 |
||
|
92009
|
92009
92009-1264 SCREW,TAPPING,5X16 |
92009-1264 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1378 SCREW, TAPPING, 4X20 |
92009-1378 |
from US $2.69 |
||
|
92009B
|
92009B
92009-1761
Screw
|
92009-1761 |
— | ||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92027
|
92027
92027-1183 COLLAR |
92027-1183 |
from US $4.09 |
||
|
92027A
|
92027A
92027-162 COLLAR,REAR FENDER |
92027-162 |
from US $4.80 |
||
|
92069
|
92069
92069-063 BULB,12V 21/5W |
92069-063 |
from US $6.49 |
||
|
92069A
|
92069A
92069-1055 BULB,12V 5W |
92069-1055 |
from US $3.01 |
||
|
92075
|
92075
92075-121 DAMPER RUBBER,RR FEND |
92075-121 |
from US $4.09 |
||
|
92160
|
92160
92160-1684 Damper,tail lamp |
92160-1684 |
US $12.90 |
||
|
92160A
|
92160A
92160-1723
Damper,license lamp
|
92160-1723 |
— | ||
