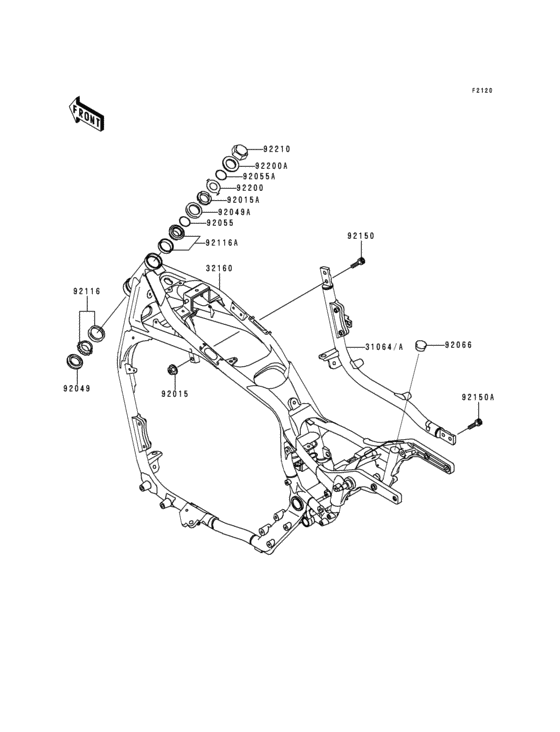

Frame Diagram Kawasaki VN1500 VN1500 Classic Tourer
- Year
- 1998
- Colour
- Pearl Boulogne / Candy Arsenit Green (E9)
- Model code
- VN1500-G1
- Sales region
- Spain
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer/ Vulcan 1500 Nomad
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31064
|
31064
31064-1206 PIPE-COMP,DOWNTUBE,RH |
31064-1206 |
from US $426.89 |
||
|
32160
|
32160
32160-1532
Frame-comp
|
32160-1532 |
— | ||
|
92015
|
92015
92015-1727 NUT |
92015-1727 |
from US $2.69 |
||
|
92015A
|
92015A
92015-1848 NUT,STEERING STEM,35M |
92015-1848 |
from US $25.73 |
||
|
92049
|
92049
92049-1383 SEAL-OIL,XMHE 43 55 4 |
92049-1383 |
from US $12.51 |
||
|
92049A
|
92049A
92049-1483 SEAL-OIL,MX043N2 |
92049-1483 |
from US $15.05 |
||
|
92055
|
92055
92055-1452 RING-O,34.5X2.0 |
92055-1452 |
from US $3.33 |
||
|
92055A
|
92055A
92055-1459 RING-O,ID=24.5 |
92055-1459 |
from US $2.85 |
||
|
92066
|
92066
92066-1444 PLUG |
92066-1444 |
from US $4.44 |
||
|
92116
|
92116
92116-1072 BEARING-ROLLER,32907J |
92116-1072 |
from US $48.46 |
||
|
92116A
|
92116A
92116-1074 BEARING-ROLLER,32907J |
92116-1074 |
from US $48.46 |
||
|
92150
|
92150
92150-1690 BOLT,SOCKET,10X30 |
92150-1690 |
from US $3.48 |
||
|
92150A
|
92150A
92150-1942 BOLT,SOCKET,10X23 |
92150-1942 |
from US $3.96 |
||
|
92200
|
92200
92200-1083 WASHER,CLAW,25.5X40X2 |
92200-1083 |
from US $3.80 |
||
|
92200A
|
92200A
92200-1084 WASHER,25.5X42X2.3 |
92200-1084 |
US $4.59 |
||
|
92210
|
92210
92210-1166 NUT |
92210-1166 |
from US $14.57 |
