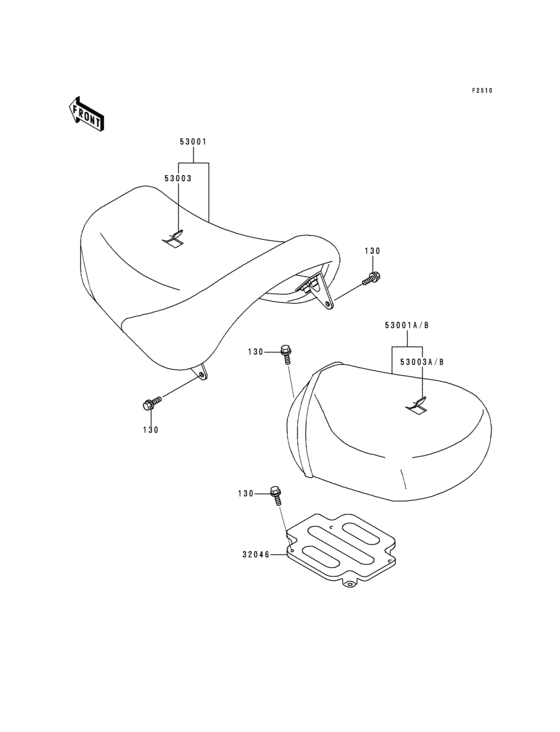

Seat Diagram Kawasaki VN1500 VN1500 Classic Tourer
- Year
- 1998
- Colour
- Pearl Boulogne / Candy Arsenit Green (E9)
- Model code
- VN1500-G1
- Sales region
- Spain
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer/ Vulcan 1500 Nomad
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0614
BOLT-FLANGED,6X14
|
130J0614 |
— | ||
| replacement | |||||
|
130
|
130
130BB0614 BOLT-FLANGED,6X14 |
130BB0614 |
from US $1.11 |
||
|
32046
|
32046
32046-1458 BRACKET-SEAT,RR |
32046-1458 |
from US $31.72 |
||
|
53001
|
53001
53001-1868-MA Seat-assy,fr,black |
53001-1868-MA |
US $496.80 |
||
| replacement | |||||
|
53001
|
53001
53001-1947-MA SEAT-ASSY,FR,BLACK |
53001-1947-MA |
from US $702.77 |
||
|
53001A
|
53001A
53001-1869-MA SEAT-ASSY,RR,W/BAND,B |
53001-1869-MA |
US $448.52 |
||
| replacement | |||||
|
53001A
|
53001A
53001-1906-MA SEAT-ASSY,RR,W/BAND,B |
53001-1906-MA |
from US $448.52 |
||
|
53003
|
53003
53003-1410-MA LEATHER,FORNT SEAT,BL |
53003-1410-MA |
from US $222.16 |
||
|
53003A
|
53003A
53003-1413-MA LEATHER,REAR SEAT,BLA |
53003-1413-MA |
from US $171.34 |
||
| replacement | |||||
|
53003A
|
53003A
53003-1438-MA LEATHER,REAR SEAT,BLA |
53003-1438-MA |
from US $180.05 |
||
