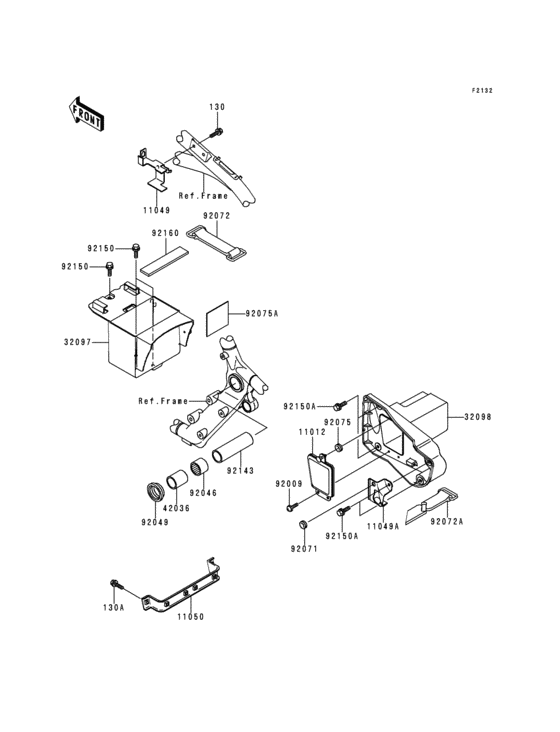

Battery case Diagram Kawasaki VN1500 VN1500 Classic Tourer
- Year
- 1999
- Colour
- Pearl Boulogne / Candy Arsenit Green (E9)
- Model code
- VN1500-G2
- Sales region
- Spain
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer/ Vulcan 1500 Nomad
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0610
BOLT-FLANGED,6X10
|
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
130A
|
130A
130J0616
BOLT-FLANGED,6X16
|
130J0616 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0616 BOLT-FLANGED,6X16 |
130BB0616 |
from US $0.95 |
||
|
11012
|
11012
11012-1956 CAP,TOOL CASE |
11012-1956 |
from US $21.09 |
||
|
11049
|
11049
11049-1599 BRACKET,FUEL PUMP |
11049-1599 |
from US $16.42 |
||
|
11049A
|
11049A
11049-1600 BRACKET,LOCK |
11049-1600 |
from US $14.26 |
||
|
11050
|
11050
11050-1694 BRACKET,REGULATOR |
11050-1694 |
from US $20.94 |
||
| replacement | |||||
|
11050
|
11050
11053-0434 BRACKET,REGULATOR |
11053-0434 |
from US $18.35 |
||
|
32097
|
32097
32097-1161 CASE-BATTERY |
32097-1161 |
from US $29.92 |
||
|
32098
|
32098
32098-1109 CASE-TOOL |
32098-1109 |
from US $118.93 |
||
|
42036
|
42036
42036-1330 SLEEVE,L=45 |
42036-1330 |
from US $20.91 |
||
|
92009
|
92009
92009-1635 SCREW,TAPPING,5X14 |
92009-1635 |
from US $2.30 |
||
| replacement | |||||
|
92009
|
92009
92172-0006 SCREW,TAPPING,5X14 |
92172-0006 |
from US $1.27 |
||
|
92046
|
92046
92046-1202 BEARING-NEEDLE,BM2824 |
92046-1202 |
from US $20.28 |
||
|
92049
|
92049
92049-1181 SEAL-OIL |
92049-1181 |
from US $8.86 |
||
|
92071
|
92071
92071-056 GROMMET |
92071-056 |
from US $3.17 |
||
|
92072
|
92072
92072-1173
BAND
|
92072-1173 |
— | ||
| replacement | |||||
|
92072
|
92072
92072-1384 BAND |
92072-1384 |
from US $7.92 |
||
|
92072A
|
92072A
92072-1331 BAND |
92072-1331 |
from US $16 |
||
|
92075
|
92075
92075-1629 DAMPER |
92075-1629 |
from US $3.90 |
||
|
92075A
|
92075A
92075-1864
DAMPER,BATTERY,LWR
|
92075-1864 |
— | ||
|
92143
|
92143
92143-1878 COLLAR,20.2X27X90 |
92143-1878 |
from US $20.79 |
||
|
92150
|
92150
92150-1133 BOLT,6X14 |
92150-1133 |
from US $2.69 |
||
|
92150A
|
92150A
92150-1198 BOLT |
92150-1198 |
from US $2.53 |
||
|
92160
|
92160
92160-1779 DAMPER |
92160-1779 |
from US $4.59 |
||
