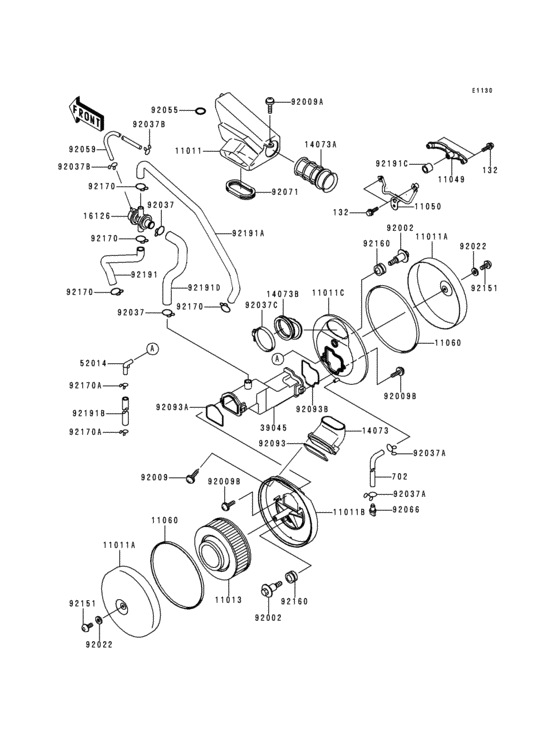

Air cleaner(1/2) Diagram Kawasaki VN1500 VN1500 Classic Tourer
- Year
- 1998
- Colour
- Pearl Boulogne / Candy Arsenit Green (E9)
- Model code
- VN1500-H1
- Sales region
- Austria
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer/ Vulcan 1500 Nomad
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0625
BOLT-FLANGED-SMALL,6X
|
132J0625 |
— | ||
| replacement | |||||
|
132
|
132
132BB0625 BOLT-FLANGED-SMALL,6X |
132BB0625 |
from US $1.27 |
||
|
702
|
702
702A07260 TUBE-RUBBER |
702A07260 |
from US $3.80 |
||
|
11011
|
11011
11011-1488 CASE-AIR FILTER,CENTE |
11011-1488 |
from US $65.20 |
||
|
11011A
|
11011A
11011-1489 CASE-AIR FILTER,OUTSI |
11011-1489 |
US $80.19 |
||
|
11011B
|
11011B
11011-1528 CASE-AIR FILTER,LH |
11011-1528 |
US $72.74 |
||
| replacement | |||||
|
11011B
|
11011B
11011-1570 CASE-AIR FILTER,LH |
11011-1570 |
from US $71.81 |
||
|
11011C
|
11011C
11011-1529 CASE-AIR FILTER,RH |
11011-1529 |
from US $86.55 |
||
|
11013
|
11013
11013-1248 Element-air filter |
11013-1248 |
from US $52.14 |
||
|
11049
|
11049
11049-1539 BRACKET,AIR FILTER,RH |
11049-1539 |
US $27.23 |
||
|
11050
|
11050
11050-1510 BRACKET,AIR FILTER,LH |
11050-1510 |
US $28.72 |
||
|
11060
|
11060
11060-1736 GASKET,AIR FILTER CAS |
11060-1736 |
from US $18.40 |
||
|
14073
|
14073
14073-1658 DUCT,AIR FILTER,LH |
14073-1658 |
from US $29.92 |
||
|
14073A
|
14073A
14073-1660 DUCT |
14073-1660 |
from US $26.30 |
||
|
14073B
|
14073B
14073-1712 DUCT,AIR FILTER,RH |
14073-1712 |
from US $24.53 |
||
|
16126
|
16126
16126-1356 VALVE,AIR SWITCH |
16126-1356 |
from US $166.28 |
||
|
39045
|
39045
39045-1056
DUCT-ASSY
|
39045-1056 |
— | ||
|
52014
|
52014
52014-1083 ELBOW |
52014-1083 |
from US $4.48 |
||
|
92002
|
92002
92002-1595 BOLT,HEAD COVER |
92002-1595 |
from US $8.40 |
||
|
92009
|
92009
92009-1264 SCREW,TAPPING,5X16 |
92009-1264 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1288
SCREW
|
92009-1288 |
— | ||
| replacements | |||||
|
92009A
|
92009A
92009-1662 SCREW |
92009-1662 |
from US $2.53 |
||
|
92009A
|
92009A
92172-0004 SCREW,6X14 |
92172-0004 |
from US $1.27 |
||
|
92009B
|
92009B
92009-1905 SCREW |
92009-1905 |
from US $1.11 |
||
|
92022
|
92022
92022-193 WASHER-PLAIN |
92022-193 |
from US $3.48 |
||
|
92037
|
92037
92037-1076 CLAMP |
92037-1076 |
from US $4.28 |
||
|
92037A
|
92037A
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92037B
|
92037B
92037-1712 CLAMP |
92037-1712 |
from US $3.90 |
||
|
92037C
|
92037C
92037-1859 CLAMP |
92037-1859 |
from US $5.54 |
||
|
92055
|
92055
92055-1282 RING-O,16MM |
92055-1282 |
from US $4.09 |
||
|
92059
|
92059
92059-1133 TUBE,4X9X290 |
92059-1133 |
US $6.55 |
||
| replacement | |||||
|
92059
|
92059
92059-1846 TUBE (4x9x650) |
92059-1846 |
from US $6.06 |
||
|
92066
|
92066
92066-1211 PLUG |
92066-1211 |
from US $5.54 |
||
|
92071
|
92071
92071-1233 GROMMET |
92071-1233 |
from US $9.66 |
||
|
92093
|
92093
92093-1408 SEAL,AIR FILTER CASE |
92093-1408 |
from US $4.12 |
||
|
92093A
|
92093A
92093-1459 SEAL,DUCT,LH |
92093-1459 |
from US $4.12 |
||
|
92093B
|
92093B
92093-1460 SEAL,DUCT,RH |
92093-1460 |
from US $4.28 |
||
|
92151
|
92151
92151-1503 BOLT,6X14 |
92151-1503 |
US $2.06 |
||
|
92160
|
92160
92160-1594 DAMPER |
92160-1594 |
from US $3.01 |
||
|
92170
|
92170
92170-1445 CLAMP,TUBE |
92170-1445 |
from US $3.48 |
||
|
92170A
|
92170A
92170-1695 CLAMP |
92170-1695 |
from US $1.74 |
||
|
92191
|
92191
92191-1050 TUBE,HEAD,FR-AIR SWIT |
92191-1050 |
from US $14.77 |
||
|
92191A
|
92191A
92191-1051 TUBE,HEAD,RR-AIR SWIT |
92191-1051 |
US $19.90 |
||
|
92191B
|
92191B
92191-1054 TUBE,BREATHER |
92191-1054 |
from US $15.21 |
||
|
92191C
|
92191C
92191-1089 TUBE,15.5X22.5X20 |
92191-1089 |
US $2.22 |
||
|
92191D
|
92191D
92191-1266 TUBE,AIR SWITCH-DUCT |
92191-1266 |
from US $9.49 |
||
