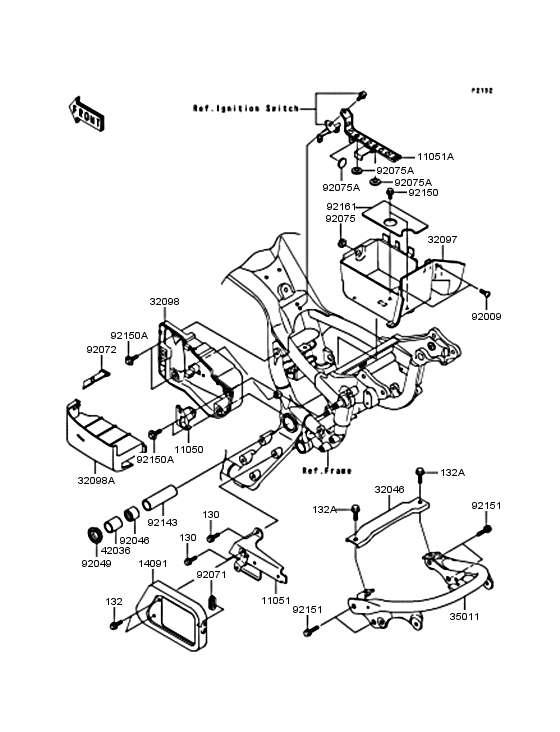

Battery case Diagram Kawasaki VN1500 Vulcan 1500 Drifter
- Year
- 1999
- Colour
- Deep Gooseberry (Q6)
- Model code
- VN1500-J1
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50J 000001 -
- Engine
- VNT50AE 000001 -
- Model
- Vulcan 1500 Drifter/ VN1500 Drifter
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0612
BOLT-FLANGED,6X12
ボルト(ツバツキ) |
130J0612 |
— | ||
| replacement | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12ボルト(ツバツキ) |
130BB0612 |
from US $1.43 |
||
|
132
|
132
132E0612 BOLT-FLANGED-SMALLボルト(コガタツバツキ) |
132E0612 |
from US $0.95 |
||
| replacement | |||||
|
132
|
132
92002-1608 BOLTボルト(コガタツバツキ) |
92002-1608 |
from US $3.11 |
||
|
132A
|
132A
132J0816
BOLT-FLANGED-SMALL,8X
ボルト(コガタツバツキ)，8X16 |
132J0816 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0816 BOLT-FLANGED-SMALL,8Xボルト(コガタツバツキ)，8X16 |
132BB0816 |
from US $1.61 |
||
|
11050
|
11050
11050-1958 BRACKET,SIDE COVER LOブラケツト，サイド カバ- ロツク |
11050-1958 |
from US $16.32 |
||
|
11051A
|
11051A
11051-1349 BRACKET,BATTERY BANDブラケツト，バツテリ バンド |
11051-1349 |
from US $19.66 |
||
|
11051
|
11051
11051-1163 BRACKET,REGULATORブラケツト，レギユレ-タ |
11051-1163 |
from US $53.56 |
||
|
14091
|
14091
14091-1079 COVER,REGULATORカバ-，レギユレ-タ |
14091-1079 |
from US $40.69 |
||
|
32046
|
32046
32046-1478 BRACKET-SEATブラケツト(シ-ト) |
32046-1478 |
US $18.37 |
||
|
32097
|
32097
32097-1175 CASE-BATTERYケ-ス(バツテリ) |
32097-1175 |
from US $27.83 |
||
|
32098
|
32098
32098-1125 CASE-TOOLケ-ス(ツ-ル) |
32098-1125 |
from US $109.96 |
||
|
32098A
|
32098A
32098-1126 CASE-TOOL,COVERケ-ス(ツ-ル)，カバ- |
32098-1126 |
from US $95.74 |
||
|
35011
|
35011
35011-1968
STAY,SEAT
ステ-，シ-ト |
35011-1968 |
— | ||
|
42036
|
42036
42036-1330 SLEEVE,L=45スリ-ブ，L=45 |
42036-1330 |
from US $20.91 |
||
|
92009
|
92009
92009-1402
SCREW, 6X10
スクリユ-，6X10 |
92009-1402 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0005 SCREW, 6X10スクリユ-，6X10 |
92172-0005 |
US $2.99 |
||
|
92046
|
92046
92046-1202 BEARING-NEEDLE,BM2824ベアリング(ニ-ドル)，BM2824 |
92046-1202 |
from US $20.28 |
||
|
92049
|
92049
92049-1181 SEAL-OILシ-ル(オイル) |
92049-1181 |
from US $8.86 |
||
|
92071
|
92071
92071-1187 GROMMETグロメツト |
92071-1187 |
from US $3.90 |
||
|
92072
|
92072
92072-1331 BANDバンド |
92072-1331 |
from US $16 |
||
|
92075
|
92075
92075-1067 DAMPER,SIDE COVERダンパ |
92075-1067 |
from US $3.73 |
||
|
92075A
|
92075A
92075-261 DAMPER,BATTERY CASEダンパ，ラバ- |
92075-261 |
from US $2.85 |
||
| replacement | |||||
|
92075A
|
92075A
92161-1200 DAMPER,RUBBERダンパ，ラバ- |
92161-1200 |
from US $3.54 |
||
|
92143
|
92143
92143-1878 COLLAR,20.2X27X90カラ-，20.2X27X90 |
92143-1878 |
from US $20.79 |
||
|
92150
|
92150
92150-1133 BOLT,6X14ボルト，6X14 |
92150-1133 |
from US $2.69 |
||
|
92150A
|
92150A
92150-1198 BOLTボルト，6X16 |
92150-1198 |
from US $2.53 |
||
|
92151
|
92151
92151-1440 BOLT,FLANGED,10X18ボルト，フランジド，10X18 |
92151-1440 |
from US $2.85 |
||
|
92161
|
92161
92161-1097 DAMPER,BATTERYダンパ-，バツテリ |
92161-1097 |
from US $3.64 |
||
