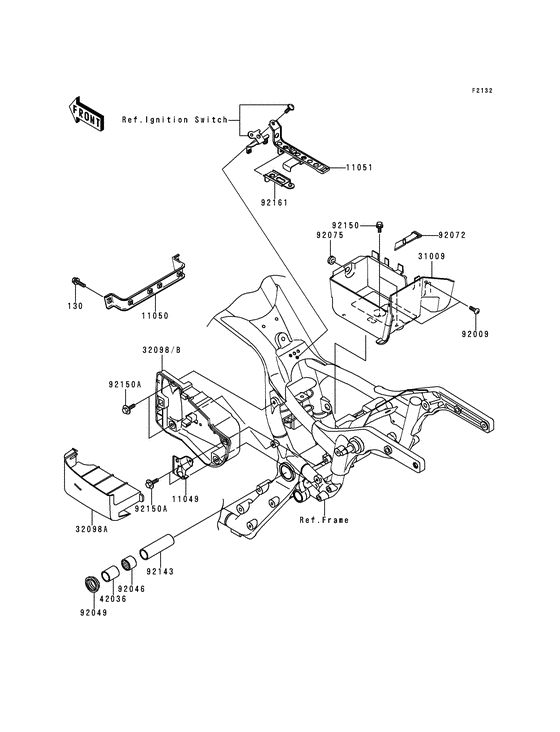

Battery case Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0616
BOLT-FLANGED,6X16
Bolt-flanged,6x16,black; |
130J0616 |
— | ||
| replacement | |||||
|
130
|
130
130BB0616 BOLT-FLANGED,6X16Bolt-flanged,6x16,black; |
130BB0616 |
from US $0.95 |
||
|
11049
|
11049
11049-1600 BRACKET,LOCKBracket,lock; |
11049-1600 |
from US $14.26 |
||
|
11050
|
11050
11050-1694 BRACKET,REGULATORBracket,regulator; |
11050-1694 |
from US $20.94 |
||
| replacement | |||||
|
11050
|
11050
11053-0434 BRACKET,REGULATORBracket,regulator; |
11053-0434 |
from US $18.35 |
||
|
11051
|
11051
11051-1327 BRACKET,BATTERY BANDBracket,battery band; |
11051-1327 |
US $24.53 |
||
| replacement | |||||
|
11051
|
11051
11051-1798 BRACKET,BATTERY BANDBracket,battery band; |
11051-1798 |
from US $21.23 |
||
|
31009
|
31009
31009-1054
Case-comp-battery
|
31009-1054 |
— | ||
|
32098
|
32098
32098-1125 CASE-TOOL |
32098-1125 |
from US $109.96 |
||
|
32098A
|
32098A
32098-1126 CASE-TOOL,COVERCase-tool,cover; |
32098-1126 |
from US $95.74 |
||
|
32098B
|
32098B
32098-1127 CASE-TOOL |
32098-1127 |
from US $113.10 |
||
|
42036
|
42036
42036-1330 SLEEVE,L=45Sleeve,l=45; |
42036-1330 |
from US $20.91 |
||
|
92009
|
92009
92009-1402
SCREW, 6X10
Screw,6x10; |
92009-1402 |
— | ||
| replacement | |||||
|
92009
|
92009
92172-0005 SCREW, 6X10Screw,6x10; |
92172-0005 |
US $2.99 |
||
|
92046
|
92046
92046-1202 BEARING-NEEDLE,BM2824Bearing-needle,bm2824; |
92046-1202 |
from US $20.28 |
||
|
92049
|
92049
92049-1181 SEAL-OIL |
92049-1181 |
from US $8.86 |
||
|
92072
|
92072
92072-1331 BANDBand,l=470; |
92072-1331 |
from US $16 |
||
|
92075
|
92075
92075-1067 DAMPER,SIDE COVER |
92075-1067 |
from US $3.73 |
||
|
92143
|
92143
92143-1878 COLLAR,20.2X27X90Collar,20.2x27x90; |
92143-1878 |
from US $20.79 |
||
|
92150
|
92150
92150-1133 BOLT,6X14Bolt,6x14; |
92150-1133 |
from US $2.69 |
||
|
92150A
|
92150A
92150-1198 BOLTBolt,6x16; |
92150-1198 |
from US $2.53 |
||
|
92161
|
92161
92161-1096 DAMPER,BATTERY BANDDamper,battery band; |
92161-1096 |
from US $8.24 |
||
