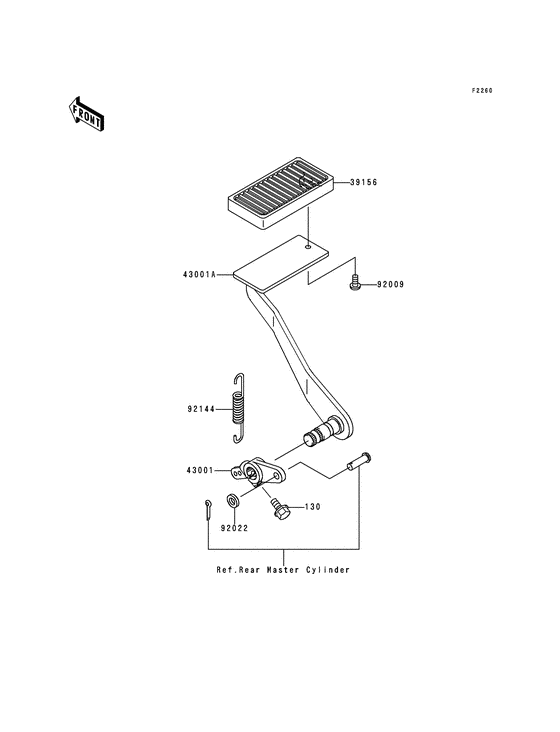

Brake pedal/torque link Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0830
BOLT-FLANGE,8X30
Bolt-flanged,8x30; |
130J0830 |
— | ||
| replacement | |||||
|
130
|
130
130BB0830 BOLT-FLANGE,8X30Bolt-flanged,8x30; |
130BB0830 |
from US $1.13 |
||
|
39156
|
39156
39156-1624 PAD,BRAKE PEDALPad,brake pedal; |
39156-1624 |
from US $12.36 |
||
|
43001
|
43001
43001-1399 LEVER-BRAKE |
43001-1399 |
from US $35.31 |
||
|
43001A
|
43001A
43001-1411 LEVER-BRAKE,PEDALLever-brake,pedal; |
43001-1411 |
from US $112.05 |
||
| replacement | |||||
|
43001A
|
43001A
43001-1433 LEVER-BRAKE,PEDALLever-brake,pedal; |
43001-1433 |
from US $103.52 |
||
|
92009
|
92009
92009-1677 SCREW,6X8,BLACKScrew,6x8,black; |
92009-1677 |
from US $2.69 |
||
|
92022
|
92022
92022-1582
WASHER-PLAIN-SMALL,8M
Washer,8.5x16x1.2; |
92022-1582 |
— | ||
| replacement | |||||
|
92022
|
92022
410AA0800 WASHER-PLAIN-SMALL,8MWasher,8.5x16x1.2; |
410AA0800 |
from US $0.63 |
||
|
92144
|
92144
92144-1169 SPRING,BRAKE PEDAL RESpring,brake pedal return; |
92144-1169 |
from US $6.34 |
||
