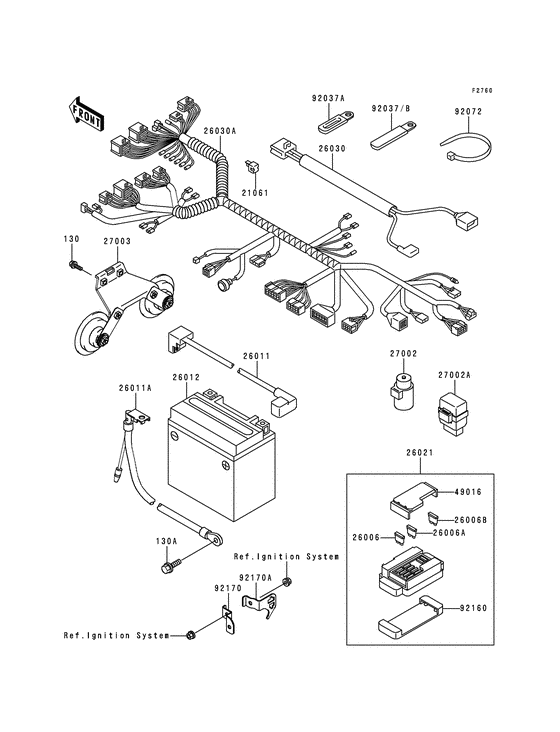

Chassis electrical equipment Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0630 BOLT-FLANGED,6X30,BLABolt-flanged,6x30,black; |
130J0630 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BB0630 BOLT-FLANGED,6X30,BLABolt-flanged,6x30,black; |
130BB0630 |
from US $1.27 |
||
|
130A
|
130A
130V0610
BOLT-FLANGED,6X10
Bolt-flanged,6x10; |
130V0610 |
— | ||
| replacement | |||||
|
130A
|
130A
130BA0610 BOLT-FLANGED,6X10Bolt-flanged,6x10; |
130BA0610 |
from US $0.79 |
||
|
21061
|
21061
21061-1003 RECTIFIER |
21061-1003 |
from US $23.94 |
||
|
26006
|
26006
26006-1067
FUSE,BLADE,30A,GREEN
Fuse,30a-g; |
26006-1067 |
— | ||
| replacement | |||||
|
26006
|
26006
26006-1006 FUSE,BLADE,30A,GREENFuse,30a-g; |
26006-1006 |
from US $2.82 |
||
|
26006A
|
26006A
26006-1068
FUSE,BLADE,10A,RED
Fuse,10a-r; |
26006-1068 |
— | ||
| replacement | |||||
|
26006A
|
26006A
26006-1007 FUSE,BLADE,10A,REDFuse,10a-r; |
26006-1007 |
from US $3.33 |
||
|
26006B
|
26006B
26006-1069 FUSE,BLADE,15A,BLUEX3Fuse,15a-b; |
26006-1069 |
from US $4.27 |
||
| replacement | |||||
|
26006B
|
26006B
26006-1061 FUSE,BLADE,15A,BLUEX3Fuse,15a-b; |
26006-1061 |
from US $3.80 |
||
|
26011
|
26011
26011-1703 WIRE-LEAD,BATTERY(+)Wire-lead,battery(+); |
26011-1703 |
US $40.82 |
||
| replacement | |||||
|
26011
|
26011
26011-1764 WIRE-LEAD,BATTERY(+)Wire-lead,battery(+); |
26011-1764 |
from US $30.97 |
||
|
26011A
|
26011A
26011-1704 Wire-lead,battery(-)Wire-lead,battery(-); |
26011-1704 |
US $23.20 |
||
| replacements | |||||
|
26011A
|
26011A
26011-1765 WIRE-LEAD,BATTERY(-)Wire-lead,battery(-); |
26011-1765 |
US $26.32 |
||
|
26011A
|
26011A
26011-1761 WIRE-LEAD,BATTERY(-)Wire-lead,battery(-); |
26011-1761 |
US $26.32 |
||
|
26012
|
26012
26012-1371 FTZ16-BS,12V 18AHBattery,mf,ftz16-bs,12v 18ah; |
26012-1371 |
from US $378.13 |
||
| replacements | |||||
|
26012
|
26012
XFFTZ16BS
バッテリ
Battery,mf,ftz16-bs,12v 18ah; |
XFFTZ16BS |
— | ||
|
26012
|
26012
26012-0954
Battery,ftz16-Bs,12V
Battery,mf,ftz16-bs,12v 18ah; |
26012-0954 |
— | ||
|
26021
|
26021
26021-1096 JUNCTION BOX |
26021-1096 |
from US $131.20 |
||
| replacements | |||||
|
26021
|
26021
26021-0061 JUNCTION BOX |
26021-0061 |
US $118.04 |
||
|
26021
|
26021
26021-0070 Junction Box |
26021-0070 |
from US $132.58 |
||
|
26030
|
26030
26030-1450 HARNESS,SUBHarness,sub; |
26030-1450 |
from US $15.52 |
||
|
26030A
|
26030A
26030-1665 HARNESS,MAINHarness,main; |
26030-1665 |
US $736.76 |
||
| replacement | |||||
|
26030A
|
26030A
26030-1751 HARNESS,MAINHarness,main; |
26030-1751 |
US $736.76 |
||
|
27002
|
27002
27002-1051 RELAY-ASSY |
27002-1051 |
from US $40.09 |
||
|
27002A
|
27002A
27002-1111 RELAY-ASSY,SIGNAL LAMRelay-assy,signal lamp; |
27002-1111 |
US $88.56 |
||
|
27003
|
27003
27003-1406 HORN |
27003-1406 |
from US $137.18 |
||
|
49016
|
49016
49016-1177
COVER-SEAL,FUSE
Cover-seal,fuse; |
49016-1177 |
— | ||
|
92037
|
92037
92037-1539 CLAMP,WIRING HARNESSClamp,l=45; |
92037-1539 |
from US $3.17 |
||
|
92037A
|
92037A
92037-1780 CLAMP |
92037-1780 |
from US $3.96 |
||
|
92037B
|
92037B
92037-1993 CLAMP |
92037-1993 |
from US $3.33 |
||
|
92072
|
92072
92072-1195 BAND,L=185Band,l=185; |
92072-1195 |
from US $2.07 |
||
|
92160
|
92160
92160-1650 DAMPER,JUNCTION BOXDamper,junction box; |
92160-1650 |
from US $9.03 |
||
|
92170
|
92170
92170-1699
CLAMP,IGNITION SWITCH
Clamp,ignition switch; |
92170-1699 |
— | ||
|
92170A
|
92170A
92170-1700 CLAMP,RR BRAKE SWITCHClamp,rr brake switch; |
92170-1700 |
from US $5.17 |
||
