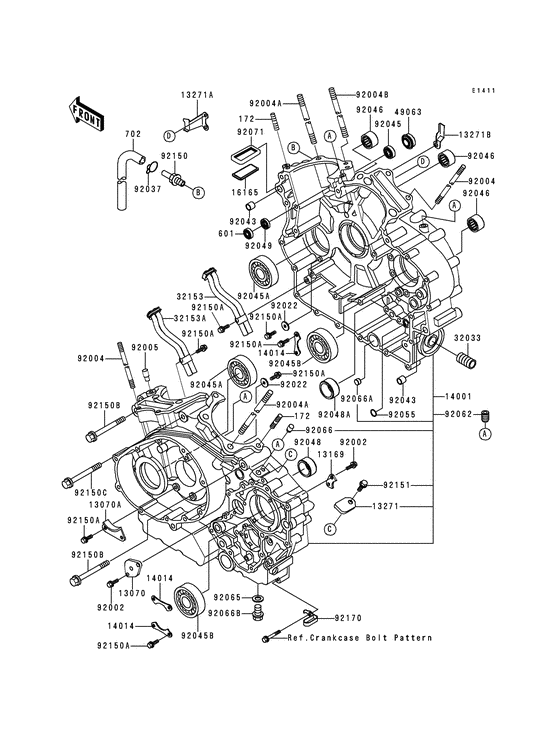

Crankcase Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13070
|
13070
13070-1167 GUIDE,PUSH RODGuide,push rod; |
13070-1167 |
from US $17.74 |
||
|
13070A
|
13070A
13070-1168 GUIDE,CAM CHAINGuide,cam chain; |
13070-1168 |
from US $4.12 |
||
|
13169
|
13169
13169014 PLATE,GEAR CHANGEPlate,gear change drum; |
13169014 |
from US $3.67 |
||
|
13271
|
13271
13271-1110 PLATE |
13271-1110 |
from US $3.64 |
||
| replacements | |||||
|
13271
|
13271
13271-0210 PLATE |
13271-0210 |
from US $3.27 |
||
|
13271
|
13271
13271-1448 PLATE |
13271-1448 |
from US $3.85 |
||
|
13271A
|
13271A
13271-1290 PLATE |
13271-1290 |
from US $3.71 |
||
|
13271B
|
13271B
13271-1291 PLATE |
13271-1291 |
from US $4.77 |
||
|
14001
|
14001
14001-5368 SET-CRANKCASE |
14001-5368 |
US $1,793.99 |
||
| replacements | |||||
|
14001
|
14001
13070-1372 GUIDE |
13070-1372 |
from US $18.37 |
||
|
14001
|
14001
14001-5394 SET-CRANKCASE |
14001-5394 |
from US $2,503.87 |
||
|
14001
|
14001
92046-1293 BEARING-NEEDLE,BN5022 |
92046-1293 |
from US $11.06 |
||
|
14001
|
14001
92048-1113 RACE |
92048-1113 |
from US $29.47 |
||
|
14001
|
14001
13271-1727 PLATE |
13271-1727 |
from US $4.12 |
||
|
14001
|
14001
92150-1868 BOLT,6X12 |
92150-1868 |
from US $1.90 |
||
|
14001
|
14001
14001-5374 SET-CRANKCASE |
14001-5374 |
from US $1,793.99 |
||
|
14014
|
14014
14014-1084 PLATE-POSITION |
14014-1084 |
from US $4.75 |
||
|
16165
|
16165
16165-1058 SEPARATOR |
16165-1058 |
from US $20.64 |
||
|
32033
|
32033
32033-1535 PIPEPipe,oil filter; |
32033-1535 |
from US $9.19 |
||
|
32153
|
32153
32153-1262 PIPE |
32153-1262 |
from US $30.07 |
||
|
32153A
|
32153A
32153-1263 PIPE |
32153-1263 |
from US $30.07 |
||
|
49063
|
49063
49063-1057 SEAL-MECHANICAL |
49063-1057 |
from US $39.10 |
||
|
92002
|
92002
92002-1439 BOLT,6X16Bolt,flanged,6x16; |
92002-1439 |
from US $2.85 |
||
|
92004
|
92004
92004-1174 STUD,8X231Stud,8x231; |
92004-1174 |
from US $8.55 |
||
|
92004A
|
92004A
92004-1225 STUD,12X250.12X24Stud,12x250; |
92004-1225 |
US $23.92 |
||
| replacement | |||||
|
92004A
|
92004A
92004-0017 STUD,12X250.12X24Stud,12x250; |
92004-0017 |
from US $15.55 |
||
|
92004B
|
92004B
92004-1240 STUD,12X250.12X24Stud,12x250; |
92004-1240 |
from US $19.32 |
||
| replacement | |||||
|
92004B
|
92004B
92004-0017 STUD,12X250.12X24Stud,12x250; |
92004-0017 |
from US $15.55 |
||
|
92005
|
92005
92005-1155 FITTING |
92005-1155 |
from US $5.86 |
||
|
92022
|
92022
92022-1517 WASHER,6X19.5X2Washer,6x19.5x2; |
92022-1517 |
from US $2.53 |
||
|
92037
|
92037
92037-1835 CLAMP |
92037-1835 |
from US $3.33 |
||
|
92043
|
92043
92043-1266 PIN,11X14X12.3Pin,11x14x12.3; |
92043-1266 |
from US $1.43 |
||
|
92045
|
92045
92045-1151 BEARING-BALL,6001LLUBearing-ball,6001llu; |
92045-1151 |
from US $22.58 |
||
|
92045A
|
92045A
92045-1189 BEARING-BALL,63/28Bearing-ball,63/28; |
92045-1189 |
from US $37.70 |
||
| replacement | |||||
|
92045A
|
92045A
92045-1183 Bearing-ball,tmb3/28jBearing-ball,63/28; |
92045-1183 |
from US $37.70 |
||
|
92045B
|
92045B
92045-1190 BEARING-BALL,6306SH2Bearing-ball,6306sh2; |
92045-1190 |
from US $30.82 |
||
|
92046
|
92046
92046-1163 BEARING-NEEDLE,HK1212Bearing-needle,hk1212; |
92046-1163 |
from US $15.05 |
||
|
92048
|
92048
92048-1069 RACE |
92048-1069 |
from US $28.12 |
||
|
92048A
|
92048A
92048-1103 RACE |
92048-1103 |
from US $18.69 |
||
|
92049
|
92049
92049-1228 SEAL-OIL,AC037AE0Seal-oil,ac037ae0; |
92049-1228 |
from US $6.81 |
||
|
92055
|
92055
92055-1373 RING-O,13.2X2.4Ring-o,13.2x2.4; |
92055-1373 |
from US $3.33 |
||
|
92062
|
92062
92062-1078 NOZZLENozzle,6x8,green; |
92062-1078 |
from US $3.01 |
||
|
92065
|
92065
92065-097 GASKET,12X22X2,DRAIN PLUGGasket,12x22x2,drain plug; |
92065-097 |
from US $1.61 |
||
|
92066
|
92066
92066-1012 PLUGPlug,oil line,7.2x8; |
92066-1012 |
from US $3.96 |
||
|
92066A
|
92066A
92066-1110 PLUG |
92066-1110 |
from US $3.96 |
||
|
92066B
|
92066B
92066-1174 PLUG,OIL DRAIN,12X15Plug,oil drain,12x15; |
92066-1174 |
from US $4.44 |
||
|
92071
|
92071
92071-1153 GROMMET,SEPARATORGrommet,separator; |
92071-1153 |
from US $5.70 |
||
| replacement | |||||
|
92071
|
92071
92071-1269 GROMMET,SEPARATORGrommet,separator; |
92071-1269 |
from US $5.86 |
||
|
92150
|
92150
92150-1161 BOLT |
92150-1161 |
from US $6.02 |
||
|
92150A
|
92150A
92150-1868 BOLT,6X12Bolt,6x12; |
92150-1868 |
from US $1.90 |
||
|
92150B
|
92150B
92150-1993 BOLT,10X105Bolt,10x105; |
92150-1993 |
from US $7.76 |
||
|
92150C
|
92150C
92150-1994 BOLT,10X115Bolt,10x115; |
92150-1994 |
from US $8.55 |
||
|
92151
|
92151
92151-1416 BOLTBolt,6x8; |
92151-1416 |
from US $1.21 |
||
|
172
|
172
172G0825 STUDBolt-stud,8x25; |
172G0825 |
US $15.30 |
||
| replacement | |||||
|
172
|
172
172BA0825 STUDBolt-stud,8x25; |
172BA0825 |
from US $2.95 |
||
|
601
|
601
601A6001 BEARING-BALL |
601A6001 |
from US $9.75 |
||
|
702
|
702
702A04330 TUBE-RUBBER,4X330Tube-rubber,4x330; |
702A04330 |
from US $6.97 |
||
|
92170
|
92170
92170-1691 CLAMP |
92170-1691 |
from US $5 |
||
| replacement | |||||
|
92170
|
92170
92171-1273 CLAMP |
92171-1273 |
from US $5.54 |
||
