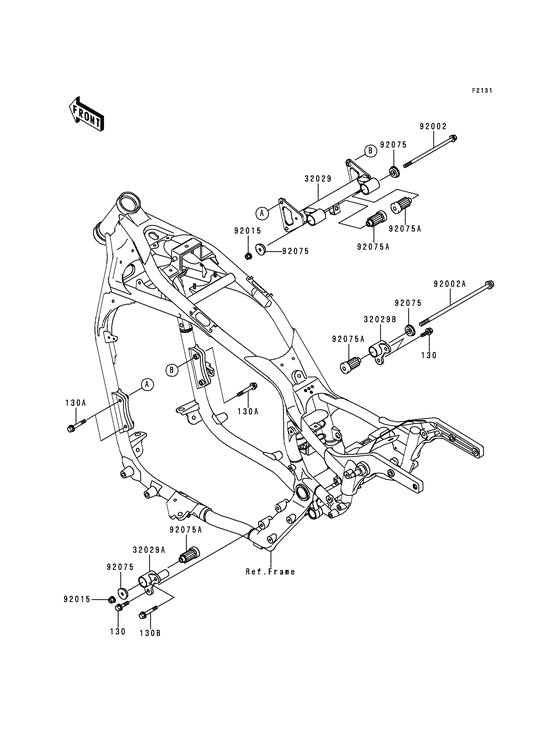

Frame fittings Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0825
BOLT-FLANGED,8X25,BLA
Bolt-flanged,8x25,black; |
130J0825 |
— | ||
| replacements | |||||
|
130
|
130
130BB0825 BOLT-FLANGED,8X25,BLABolt-flanged,8x25,black; |
130BB0825 |
from US $1.27 |
||
|
130
|
130
130CB0825 BOLT-FLANGEDBolt-flanged,8x25,black; |
130CB0825 |
from US $1.96 |
||
|
130A
|
130A
130J0840 BOLT-FLANGED,8X40Bolt-flanged,8x40; |
130J0840 |
from US $1.74 |
||
| replacement | |||||
|
130A
|
130A
130BB0840 BOLT-FLANGED,8X40Bolt-flanged,8x40; |
130BB0840 |
from US $1.27 |
||
|
130B
|
130B
130J0860 BOLT-FLANGED |
130J0860 |
from US $1.90 |
||
| replacement | |||||
|
130B
|
130B
130BB0860 BOLT-FLANGED |
130BB0860 |
from US $1.56 |
||
|
32029
|
32029
32029-1985 BRACKET-ENGINE,FRBracket-engine,fr; |
32029-1985 |
from US $128.96 |
||
| replacement | |||||
|
32029
|
32029
32190-0022 BRACKET-ENGINE,FRBracket-engine,fr; |
32190-0022 |
from US $131.35 |
||
|
32029A
|
32029A
32029-1986 BRACKET-ENGINE,RR,LHBracket-engine,rr,lh; |
32029-1986 |
from US $43.08 |
||
|
32029B
|
32029B
32029-1987 BRACKET-ENGINE,RR,RHBracket-engine,rr,rh; |
32029-1987 |
from US $37.70 |
||
|
92002
|
92002
92002-1206
BOLT,FLANGED,10X285
Bolt,flanged,10x285; |
92002-1206 |
— | ||
| replacement | |||||
|
92002
|
92002
92153-1909 BOLT,FLANGED,10X285Bolt,flanged,10x285; |
92153-1909 |
from US $12.04 |
||
|
92002A
|
92002A
92002-1540 BOLT,FLANGED,10X330Bolt,flanged,10x330; |
92002-1540 |
from US $16.63 |
||
|
92015
|
92015
92015-1180 NUT,FLANGED,10MM,BLACNut,flanged,10mm; |
92015-1180 |
from US $2.69 |
||
|
92075
|
92075
92075-1738 DAMPER,ENGINE BRACKETDamper,engine bracket; |
92075-1738 |
from US $14.89 |
||
|
92075A
|
92075A
92075-1739 DAMPER,ENGINE MOUNT,MDamper,engine mount,main; |
92075-1739 |
from US $26.93 |
||
