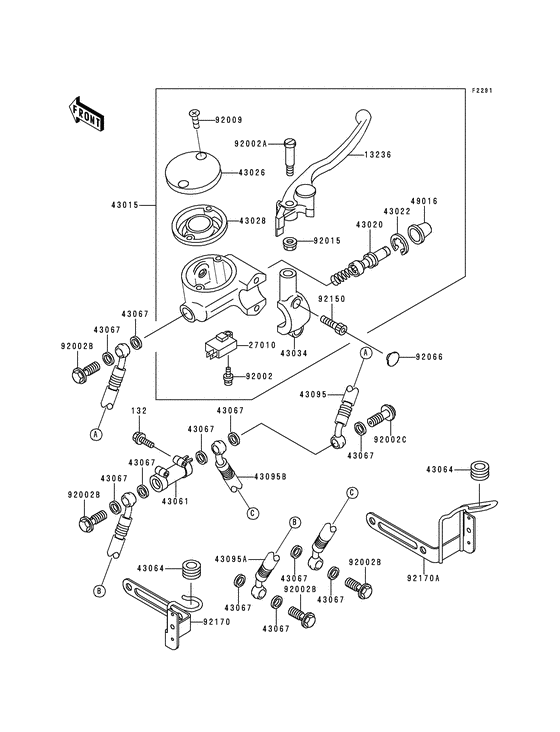

Front master cylinder Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132E0630 BOLT-FLANGED-SMALL |
132E0630 |
from US $1.90 |
||
|
13236
|
13236
13236-1315 LEVER, FRONT BRAKELever-comp,front brake; |
13236-1315 |
from US $37.10 |
||
|
27010
|
27010
27010-1170
SWITCH,BRAKE
Switch,brake; |
27010-1170 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0025 SWITCH,BRAKESwitch,brake; |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-1619 CYLINDER-ASSY-MASTER,Cylinder-assy-master,fr; |
43015-1619 |
from US $333.96 |
||
| replacement | |||||
|
43015
|
43015
43015-0014 CYLINDER-ASSY-MASTER,Cylinder-assy-master,fr; |
43015-0014 |
from US $351.38 |
||
|
43020
|
43020
43020-1054 FRONT BRAKE PISTON-COMPPiston-comp-brake,fr; |
43020-1054 |
from US $50.63 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERStopper-brake,piston; |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1083 CAP-BRAKE |
43026-1083 |
from US $47.72 |
||
|
43028
|
43028
43028-1071 DIAPHRAGM,MASTER CYLIDiaphragm,master cylinder; |
43028-1071 |
from US $20.90 |
||
|
43034
|
43034
43034-1147 HOLDER-BRAKE |
43034-1147 |
from US $36.27 |
||
|
43061
|
43061
43061-1002 JOINT,FR BRAKE HOSE |
43061-1002 |
from US $45.78 |
||
|
43064
|
43064
43064006 DAMPER RUBBER,CYL HSEGrommet,hose clamp; |
43064006 |
from US $3.17 |
||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5Washer,10.5x15x1.5; |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5Washer,10.5x15x1.5; |
49091-0001 |
from US $1.27 |
||
|
43095
|
43095
43095-1099 HOSE-BRAKE,FR,UPPHose-brake,fr,upp; |
43095-1099 |
from US $63.88 |
||
| replacements | |||||
|
43095
|
43095
43095-0152 HOSE-BRAKEHose-brake,fr,upp; |
43095-0152 |
US $74.02 |
||
|
43095
|
43095
43095-1317 HOSE-BRAKE,FR,UPPHose-brake,fr,upp; |
43095-1317 |
US $67.02 |
||
|
43095A
|
43095A
43095-1100 HOSE-BRAKE,FR,LWR,LHHose-brake,fr,lwr,lh; |
43095-1100 |
US $67.02 |
||
|
43095B
|
43095B
43095-1101 HOSE-BRAKE,FR,LWR,RHHose-brake,fr,lwr,rh; |
43095-1101 |
US $67.02 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERCover-seal,master cylinder; |
49016-1044 |
from US $10.08 |
||
|
92002
|
92002
92002-1323 BOLTBolt,screw,4x12; |
92002-1323 |
from US $2.53 |
||
|
92002A
|
92002A
92002-1561 BOLT,LEVER SETBolt,lever set; |
92002-1561 |
from US $7.13 |
||
|
92002B
|
92002B
92002-1888
BOLT,OIL,L=23
Bolt,oil,l=23; |
92002-1888 |
— | ||
| replacement | |||||
|
92002B
|
92002B
92153-0627 BOLT,OIL,L=23Bolt,oil,l=23; |
92153-0627 |
from US $2.85 |
||
|
92002C
|
92002C
92002-1909 BOLT,OIL,L=37Bolt,oil,l=37; |
92002-1909 |
from US $7.76 |
||
| replacement | |||||
|
92002C
|
92002C
92153-0628 BOLT,OIL,L=37Bolt,oil,l=37; |
92153-0628 |
from US $6.65 |
||
|
92009
|
92009
92009-1440 SCREWScrew,5mm; |
92009-1440 |
from US $3.73 |
||
|
92015
|
92015
92015-1528 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1528 |
from US $3.17 |
||
|
92066
|
92066
92066-1301 PLUG |
92066-1301 |
from US $3.80 |
||
|
92150
|
92150
92150-1025 BOLT,SOCKET,6MMBolt,socket,6mm; |
92150-1025 |
from US $4.44 |
||
|
92170
|
92170
92170-1858 CLAMP,BRAKE HOSE,LHClamp,brake hose,lh; |
92170-1858 |
from US $13.68 |
||
|
92170A
|
92170A
92170-1981 CLAMP,BRAKE HOSE,RHClamp,brake hose,rh; |
92170-1981 |
US $22.70 |
||
