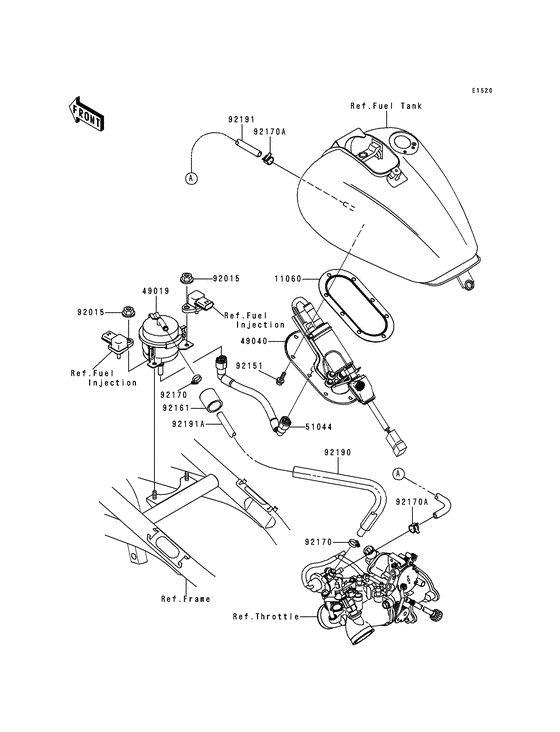

Fuel Pump Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11060
|
11060
11060-1929 GASKET |
11060-1929 |
from US $36.50 |
||
|
49019
|
49019
49019-1089 FILTER-FUEL |
49019-1089 |
from US $74.80 |
||
|
49040
|
49040
49040-1066 Pump-fuel |
49040-1066 |
US $714.38 |
||
|
51044
|
51044
51044-1209 TUBE-ASSY |
51044-1209 |
US $99.04 |
||
|
92015
|
92015
92015-1386 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1386 |
from US $3.48 |
||
| replacement | |||||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1233 |
from US $3.90 |
||
|
92151
|
92151
92151-1599 BOLT,FLANGED,5X12Bolt,flanged,5x12; |
92151-1599 |
from US $1.27 |
||
|
92161
|
92161
92161-1080 DAMPERDamper,23x29x30; |
92161-1080 |
from US $2.86 |
||
|
92170
|
92170
92170-1278 CLAMP |
92170-1278 |
from US $7.60 |
||
| replacement | |||||
|
92170
|
92170
92173-2458 Clamp |
92173-2458 |
US $10.88 |
||
|
92170A
|
92170A
92170-1492 CLAMP |
92170-1492 |
from US $3.17 |
||
|
92190
|
92190
92190-1462 TUBE,16.5X20.5X55Tube,16.5x20.5x55; |
92190-1462 |
from US $3.33 |
||
|
92191
|
92191
92191-1358 TUBE,5.8X12.2X391.5Tube,5.8x12.2x381.5; |
92191-1358 |
from US $37.19 |
||
|
92191A
|
92191A
92191-1370 TUBE,7.5X13.5X210Tube,7.5x13.5x210; |
92191-1370 |
from US $20.68 |
||
