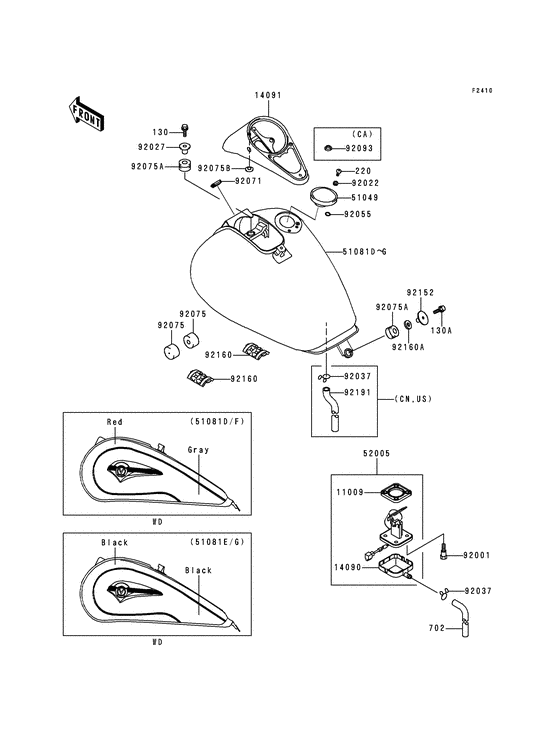

Fuel tank Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1656
GASKET,FUEL GAUGE
Gasket,fuel gauge; |
11009-1656 |
— | ||
| replacement | |||||
|
11009
|
11009
11061-0292 GASKET,FUEL GAUGE,W/BGasket,fuel gauge; |
11061-0292 |
from US $11.98 |
||
|
14090
|
14090
14090-1624 COVER,FUEL GAUGECover,fuel gauge; |
14090-1624 |
from US $12.67 |
||
|
14091
|
14091
14091-1131 COVER,METERCover,meter; |
14091-1131 |
US $133.94 |
||
|
51049
|
51049
51049-1103
CAP-TANK,FUEL
Cap-tank,fuel; |
51049-1103 |
— | ||
| replacement | |||||
|
51049
|
51049
51049-1132 CAP-TANK,FUELCap-tank,fuel; |
51049-1132 |
from US $70.31 |
||
|
51081D
|
51081D
51081-5216-C3 TANK-COMP-FUEL,RED/GRTank-comp-fuel,red/gray; |
51081-5216-C3 |
US $1,486.13 |
||
|
51081E
|
51081E
51081-5217-20 TANK-COMP-FUEL,BLACKTank-comp-fuel,black mica; |
51081-5217-20 |
US $1,486.13 |
||
|
51081F
|
51081F
51081-5262-C3 TANK-COMP-FUEL,RED/GRTank-comp-fuel,red/gray; |
51081-5262-C3 |
US $1,486.13 |
||
|
51081G
|
51081G
51081-5263-20 TANK-COMP-FUEL,BLACKTank-comp-fuel,black mica; |
51081-5263-20 |
US $1,322.75 |
||
|
52005
|
52005
52005-1129 GAUGE,FUELGauge,fuel; |
52005-1129 |
from US $105.62 |
||
| replacement | |||||
|
52005
|
52005
52005-5009 GAUGE,FUELGauge,fuel; |
52005-5009 |
from US $90.66 |
||
|
92001
|
92001
92001-1705
BOLT,FUEL GAGE
Bolt,fuel gauge; |
92001-1705 |
— | ||
|
92022
|
92022
92022-1977 WASHER,5.1X10X1.2Washer,5.1x10x1.0; |
92022-1977 |
from US $2.53 |
||
|
92027
|
92027
92027-1780 COLLAR,L=19.3Collar,l=19.3; |
92027-1780 |
from US $4.80 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERClamp,tube; |
92037-147 |
from US $4.95 |
||
|
92055
|
92055
92055-1023 O-RING |
92055-1023 |
from US $2.53 |
||
|
92071
|
92071
92071-1187 GROMMET |
92071-1187 |
from US $3.90 |
||
|
92075
|
92075
92075-125 DAMPER RUBBER,FL TANKDamper,fuel tank; |
92075-125 |
from US $4.44 |
||
|
92075A
|
92075A
92075-1736 DAMPER |
92075-1736 |
from US $3.96 |
||
|
92075B
|
92075B
92075-261 DAMPER,BATTERY CASEDamper,rubber; |
92075-261 |
from US $2.85 |
||
| replacement | |||||
|
92075B
|
92075B
92161-1200 DAMPER,RUBBERDamper,rubber; |
92161-1200 |
from US $3.54 |
||
|
92093
|
92093
92093-1030 OIL SEAL,FUEL TANKSeal,fuel tank cap; |
92093-1030 |
from US $5.23 |
||
|
92152
|
92152
92152-1100 COLLAR |
92152-1100 |
from US $6.97 |
||
|
92160
|
92160
92160-1907 DAMPER,FUEL TANKDamper,fuel tank; |
92160-1907 |
from US $13.31 |
||
|
92160A
|
92160A
92160-1941 DAMPER |
92160-1941 |
from US $1.87 |
||
|
92191
|
92191
92191-1272 TUBE,DRAINTube,drain; |
92191-1272 |
from US $16.16 |
||
|
130
|
130
130H0830 BOLT-FLANGED,8X30Bolt-flanged,8x30; |
130H0830 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BA0830 BOLT-FLANGED,8X30Bolt-flanged,8x30; |
130BA0830 |
from US $1.43 |
||
|
130A
|
130A
130J0835 BOLT-FLANGEDBolt-flanged,8x35,black; |
130J0835 |
US $34 |
||
| replacements | |||||
|
130A
|
130A
130BB0835 BOLT-FLANGEDBolt-flanged,8x35,black; |
130BB0835 |
from US $1.27 |
||
|
130A
|
130A
130CB0835 BOLT-FLANGEDBolt-flanged,8x35,black; |
130CB0835 |
from US $1.27 |
||
|
220
|
220
220D0510
SCREW-PAN-CROSS,5X10
|
220D0510 |
— | ||
| replacement | |||||
|
220
|
220
220AA0510 SCREW-PAN-CROSS,5X10 |
220AA0510 |
from US $0.48 |
||
|
702
|
702
702A07860
TUBE-BREATHER (BULK)
Tube-rubber,7x10x860; |
702A07860 |
— | ||
| replacement | |||||
|
702
|
702
702A071000 TUBE-BREATHER (BULK)Tube-rubber,7x10x860; |
702A071000 |
from US $11.40 |
||
