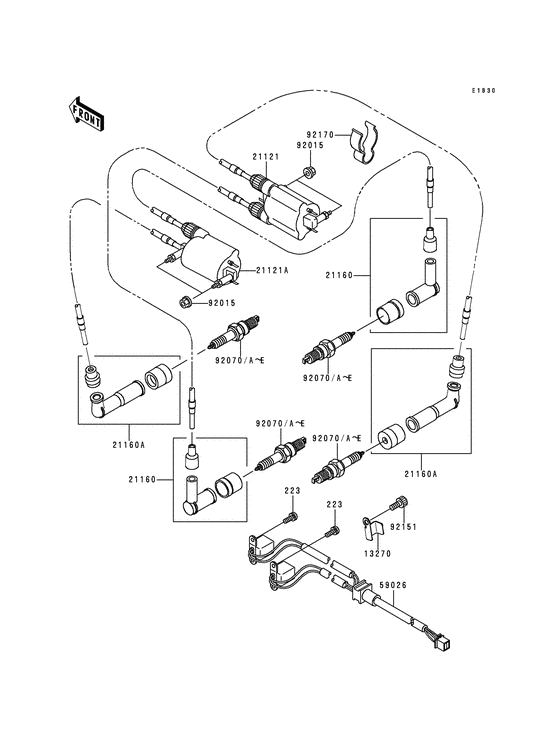

Ignition System Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223B0516 SCREW-PAN-WS-CROS |
223B0516 |
from US $1.27 |
||
| replacement | |||||
|
223
|
223
223AA0516 SCREW-PAN-WS-CROS |
223AA0516 |
from US $0.95 |
||
|
13270
|
13270
13270-1979 PLATE |
13270-1979 |
from US $2.14 |
||
|
21121
|
21121
21121-1288 COIL-IGNITION,RRCoil-ignition,rr; |
21121-1288 |
US $161.57 |
||
|
21121A
|
21121A
21121-1289 COIL-IGNITION,FRCoil-ignition,fr; |
21121-1289 |
from US $161.57 |
||
|
21160
|
21160
21160-1085 CAP-ASSY-PLUG |
21160-1085 |
from US $20.91 |
||
|
21160A
|
21160A
21160-1091 CAP-ASSY-PLUG |
21160-1091 |
from US $20.64 |
||
|
59026
|
59026
59026-1145 COIL-PULSING |
59026-1145 |
from US $94.40 |
||
|
92015
|
92015
92015-1170 NUTNut,cap,6mm,black; |
92015-1170 |
from US $0.38 |
||
| replacement | |||||
|
92015
|
92015
92210-0003 NUTNut,cap,6mm,black; |
92210-0003 |
from US $1 |
||
|
92070A
|
92070A
92070-1125 Plug-spark,dpr7ea9(ngPlug-spark,dpr7ea9(ngk); (option) |
92070-1125 |
US $7.44 |
||
|
92070B
|
92070B
92070-1138 SPARK PLUG DPR6EA9Plug-spark,dpr6ea9(ngk); |
92070-1138 |
US $7.44 |
||
|
92070D
|
92070D
92070-1250 SPARK PLUG DPR5EA-9Plug-spark,dpr5ea9(ngk); (option) |
92070-1250 |
from US $4.61 |
||
|
92151
|
92151
92151-3704 BOLT,SOCKET,6X10Bolt,socket,6x10; |
92151-3704 |
from US $2.69 |
||
|
92170
|
92170
92170-1930 CLAMP,HOSEClamp,hose; |
92170-1930 |
from US $5.86 |
||
