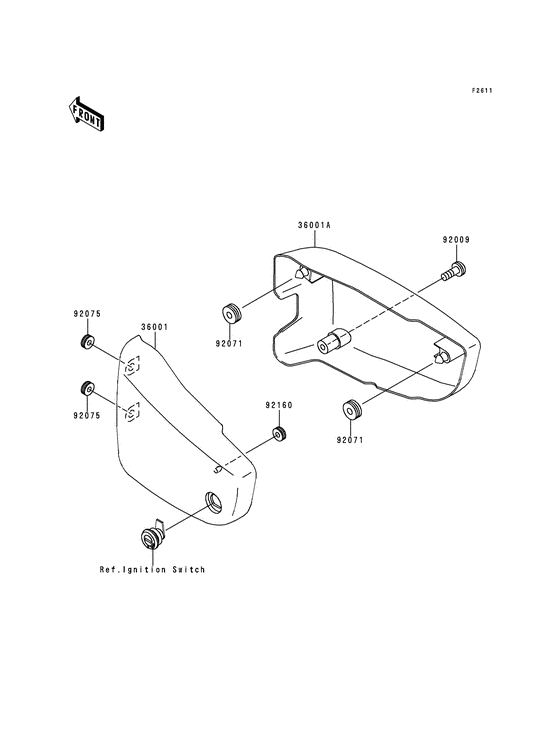

Side covers Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36001
|
36001
36001-1561-H8 COVER-SIDE,LH,EBONYCover-side,lh,ebony; |
36001-1561-H8 |
US $216.65 |
||
| replacement | |||||
|
36001
|
36001
36001-1645-H8 COVER-SIDE,LH,EBONYCover-side,lh,ebony; |
36001-1645-H8 |
from US $216.65 |
||
|
36001A
|
36001A
36001-1562-H8 COVER-SIDE,RH,EBONYCover-side,rh,ebony; |
36001-1562-H8 |
US $216.65 |
||
| replacement | |||||
|
36001A
|
36001A
36001-1646-H8 COVER-SIDE,RH,EBONYCover-side,rh,ebony; |
36001-1646-H8 |
from US $216.65 |
||
|
92009
|
92009
92009-1874 SCREWScrew,6x35; |
92009-1874 |
from US $2.22 |
||
|
92071
|
92071
92071-1131 GROMMET |
92071-1131 |
from US $5.23 |
||
|
92075
|
92075
92075-1629 DAMPER |
92075-1629 |
from US $3.90 |
||
|
92160
|
92160
92160-1944 DAMPER |
92160-1944 |
from US $1.90 |
||
