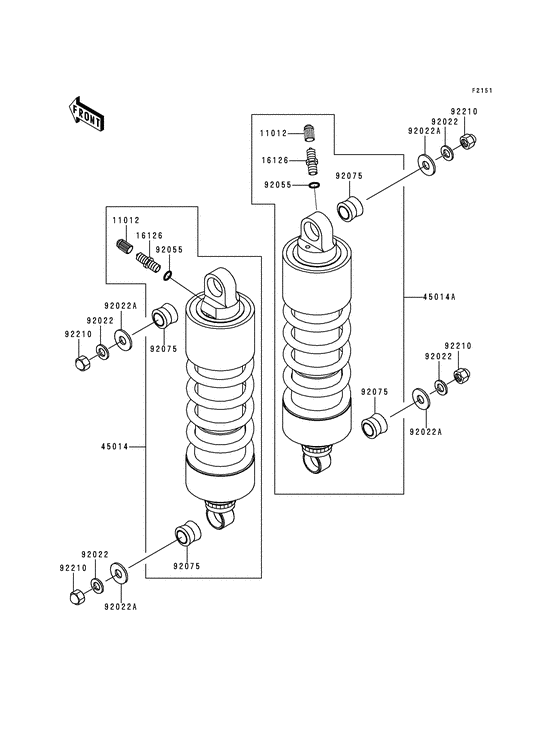

Suspension/shock absorber Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1283 CAP,FORK |
11012-1283 |
from US $6.18 |
||
|
16126
|
16126
16126-1105 VALVE,AIRValve,air; |
16126-1105 |
US $27.50 |
||
| replacement | |||||
|
16126
|
16126
16126-1043 VALVE,AIRValve,air; |
16126-1043 |
from US $20.38 |
||
|
45014
|
45014
45014-1702 SHOCK ABSORBER,LHShockabsorber,lh; |
45014-1702 |
US $811.13 |
||
| replacement | |||||
|
45014
|
45014
45014-1795 SHOCK ABSORBER,LHShockabsorber,lh; |
45014-1795 |
from US $662.11 |
||
|
45014A
|
45014A
45014-1703 SHOCK ABSORBER,RHShockabsorber,rh; |
45014-1703 |
US $811.13 |
||
| replacement | |||||
|
45014A
|
45014A
45014-1796 SHOCK ABSORBER,RHShockabsorber,rh; |
45014-1796 |
from US $662.11 |
||
|
92022
|
92022
92022-1540 WASHER,SPRING,10MMWasher,spring,10mm; |
92022-1540 |
from US $2.85 |
||
|
92022A
|
92022A
92022-246 WASHER,PLAIN,10MMWasher,10.5x26x2.3; |
92022-246 |
from US $3.80 |
||
|
92055
|
92055
92055-1130 RING-O |
92055-1130 |
from US $1.27 |
||
|
92075
|
92075
92075-1387 Dampers, shock absorbersDamper,shockabsorber; |
92075-1387 |
from US $9.35 |
||
|
92210
|
92210
92210-1128 NUT,CAP,10MMNut,cap,10mm; |
92210-1128 |
from US $1.74 |
||
