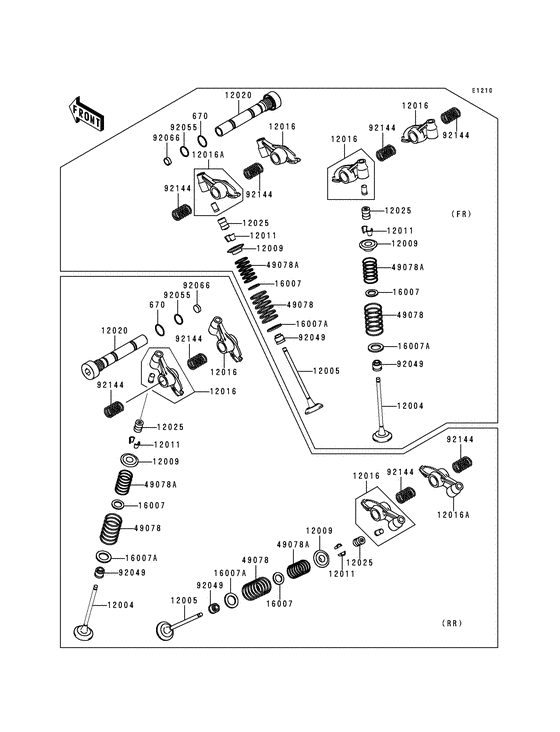

Valve Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
670
|
670
670B2020 0 RING,20MMO ring,20mm; |
670B2020 |
from US $1.68 |
||
|
12004
|
12004
12004-1072 VALVE-INTAKE |
12004-1072 |
from US $47.12 |
||
|
12005
|
12005
12005-1268 VALVE-EXHAUST |
12005-1268 |
from US $65.82 |
||
|
12009
|
12009
12009005 RETAINER,VALVE SPRING |
12009005 |
from US $9.19 |
||
|
12011
|
12011
12011-004 SPLIT KEEPERCollet,retainer; |
12011-004 |
from US $3.64 |
||
|
12016
|
12016
12016-1112 ARM-ROCKER |
12016-1112 |
US $169.58 |
||
|
12016A
|
12016A
12016-1113 ARM-ROCKER |
12016-1113 |
US $97.69 |
||
|
12020
|
12020
12020-1061 SHAFT-ROCKER |
12020-1061 |
from US $63.73 |
||
|
12025
|
12025
12025-1054
ADJUSTER-LASH
|
12025-1054 |
— | ||
| replacement | |||||
|
12025
|
12025
12025-1053 ADJUSTER-LASH |
12025-1053 |
from US $81.71 |
||
|
16007
|
16007
16007-1031 SEAT-SPRING |
16007-1031 |
from US $4.12 |
||
|
16007A
|
16007A
16007-1137 SEAT-SPRING,OUTERSeat-spring,outer; |
16007-1137 |
from US $3.94 |
||
|
49078
|
49078
49078-1157 SPRING-ENGINE VALVESpring-engine valve,outer; |
49078-1157 |
from US $12.36 |
||
|
49078A
|
49078A
49078-1158 SPRING-ENGINE VALVESpring-engine valve,inner; |
49078-1158 |
from US $12.36 |
||
|
92049
|
92049
92049-016 OIL SEAL,RV37129.5Seal-oil,rv37129.5; |
92049-016 |
from US $11.72 |
||
|
92055
|
92055
92055-025 0 RING |
92055-025 |
from US $2.85 |
||
|
92066
|
92066
92066-1198 PLUG |
92066-1198 |
from US $3.01 |
||
|
92144
|
92144
92144-1221 SPRINGSpring,rocker arm; |
92144-1221 |
from US $3.35 |
||
