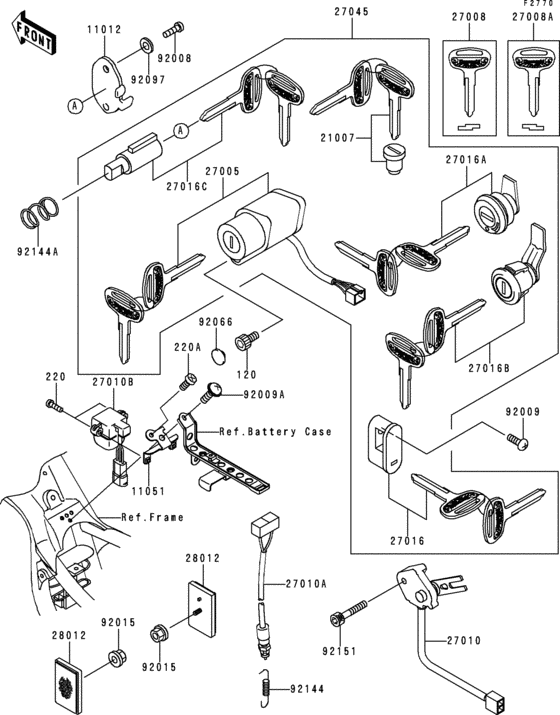

Ignition switch/locks/reflectors Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKBVNAL1 YA000001 - YA007000
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0512 BOLT-SOCKET,5X12 |
120CA0512 |
from US $0.63 |
||
|
220
|
220
220AB0420 SCREW-PAN-CROS,4X20 |
220AB0420 |
from US $1.29 |
||
|
220A
|
220A
220AB0612 SCREW-PAN-CROS,6X12 |
220AB0612 |
from US $1.09 |
||
|
11012
|
11012
11012-1586 CAP,STEERING LOCK |
11012-1586 |
from US $6.18 |
||
|
11051
|
11051
11051-1763 BRACKET,DOWN SENSOR |
11051-1763 |
from US $10.61 |
||
|
21007
|
21007
27045-5024 SWITCH-ASSY,TANK CAP |
27045-5024 |
from US $45.42 |
||
|
27005
|
27005
27005-1215 SWITCH-ASSY-IGNITION |
27005-1215 |
from US $204.73 |
||
|
27008
|
27008
27008-1179 KEY-LOCK,BLANK,#A |
27008-1179 |
from US $19.48 |
||
|
27008A
|
27008A
27008-1180 KEY-LOCK,BLANK,#B |
27008-1180 |
from US $19.48 |
||
|
27010
|
27010
27010-1464 SWITCH,SIDE STAND |
27010-1464 |
from US $51.31 |
||
|
27010A
|
27010A
27010-1412 SWITCH,REAR BRAKE |
27010-1412 |
from US $26.33 |
||
|
27010B
|
27010B
27010-1393 SWITCH |
27010-1393 |
US $147.66 |
||
|
27016
|
27016
27016-5311 LOCK-ASSY,HELMET |
27016-5311 |
from US $49.22 |
||
|
27016A
|
27016A
27016-5182 LOCK-ASSY,PAD |
27016-5182 |
from US $49.22 |
||
|
27016B
|
27016B
27016-5245 LOCK-ASSY,SIDE BAG |
27016-5245 |
from US $57.45 |
||
|
28012
|
28012
28012-1009 Reflector-reflex |
28012-1009 |
from US $15.71 |
||
|
92008
|
92008
92008-007 SCREW-TAPPING |
92008-007 |
from US $3.73 |
||
|
92009
|
92009
92009-1296 SCREW,5X12 |
92009-1296 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $5.13 |
||
|
92015
|
92015
92015-1656 NUT,FLANGED,5MM |
92015-1656 |
from US $2.38 |
||
|
92066
|
92066
92066-1435 PLUG |
92066-1435 |
from US $1.90 |
||
|
92097
|
92097
92097-003 WASHER |
92097-003 |
from US $3.17 |
||
|
92144
|
92144
92144-1141 SPRING,REAR BRAKE SWI |
92144-1141 |
from US $3.33 |
||
|
92144A
|
92144A
92144-1222 SPRING,STEERING LOCK |
92144-1222 |
from US $3.33 |
||
|
92151
|
92151
92151-1390 BOLT,SOCKET,6X35 |
92151-1390 |
from US $1.27 |
||
