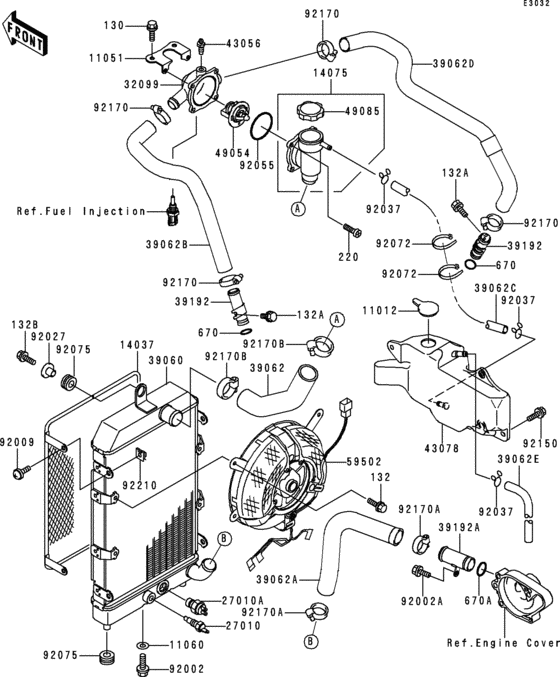

Radiator(1/2) Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2000
- Model code
- VN1500-L1
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKBVNAL1 YA000001 - YA007000
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
132
|
132
132BB0610 BOLT-FLANGED-SMALL,6X |
132BB0610 |
from US $1.11 |
||
|
132A
|
132A
92002-1569
BOLT-FLANGED-SMALL,6X
|
92002-1569 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
132B
|
132B
92150-1779 BOLT-FLANGED-SMALL,6X |
92150-1779 |
from US $2.69 |
||
| replacement | |||||
|
132B
|
132B
132BB0625 BOLT-FLANGED-SMALL,6X |
132BB0625 |
from US $1.27 |
||
|
220
|
220
220AA0514 SCREW-PAN HEAD,5X14 |
220AA0514 |
from US $0.79 |
||
|
670
|
670
670B2014 O RING,14MM |
670B2014 |
from US $1.50 |
||
|
670A
|
670A
670B2018 0 RING,18MM |
670B2018 |
from US $1.77 |
||
|
11012
|
11012
11012-1585 CAP |
11012-1585 |
from US $5.54 |
||
|
11051
|
11051
11051-1535 BRACKET,THERMOSTAT CA |
11051-1535 |
from US $7.13 |
||
|
11060
|
11060
11060-1767 GASKET,DRAIN PLUG |
11060-1767 |
from US $2.38 |
||
|
14037
|
14037
14037-1251 SCREEN |
14037-1251 |
from US $55.20 |
||
|
14075
|
14075
14075-1068 CAP-ASSY |
14075-1068 |
from US $125.22 |
||
|
27010
|
27010
27010-1305 SWITCH |
27010-1305 |
from US $62.53 |
||
|
27010A
|
27010A
27010-1364 SWITCH,FAN |
27010-1364 |
from US $116.69 |
||
|
32099
|
32099
32099-1201 CASE,THERMOSTAT |
32099-1201 |
US $43.83 |
||
|
39060
|
39060
39060-1165 Radiator |
39060-1165 |
from US $607.48 |
||
|
39062
|
39062
39062-1696 HOSE-COOLING,THERMO-R |
39062-1696 |
from US $22.74 |
||
|
39062A
|
39062A
39062-1850 HOSE-COOLING,RADIATOR |
39062-1850 |
from US $20.91 |
||
|
39062B
|
39062B
39062-1785
HOSE-COOLING
|
39062-1785 |
— | ||
|
39062C
|
39062C
39062-1796 HOSE-COOLING,THERMO-R |
39062-1796 |
from US $15.05 |
||
|
39062D
|
39062D
39062-1845 HOSE-COOLING,HEAD,RR- |
39062-1845 |
US $30.91 |
||
|
39062E
|
39062E
39062-1814 HOSE-COOLING |
39062-1814 |
from US $15.68 |
||
|
39192
|
39192
39192-1094 PIPE-WATER |
39192-1094 |
from US $21.07 |
||
|
39192A
|
39192A
39192-1096 PIPE-WATER |
39192-1096 |
from US $19.80 |
||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $14.69 |
||
|
43078
|
43078
43078-1164 RESERVOIR |
43078-1164 |
from US $27.83 |
||
|
49054
|
49054
49054-0004 THERMOSTAT |
49054-0004 |
from US $44.30 |
||
|
49085
|
49085
49085-1067 PRESSURE CAP-ASSY |
49085-1067 |
from US $47.30 |
||
|
59502
|
59502
59502-1127 FAN-ASSY |
59502-1127 |
from US $768.11 |
||
|
92002
|
92002
92002-1311 BOLT |
92002-1311 |
from US $3.80 |
||
|
92002A
|
92002A
92002-1569
BOLT-FLANGED-SMALL,6X
|
92002-1569 |
— | ||
| replacement | |||||
|
92002A
|
92002A
132BB0612 BOLT-FLANGED-SMALL,6X |
132BB0612 |
from US $0.95 |
||
|
92009
|
92009
92172-0005 SCREW, 6X10 |
92172-0005 |
US $2.99 |
||
|
92027
|
92027
92027-1450 COLLAR,L=13.1,BLACK |
92027-1450 |
from US $3.64 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILER |
92037-147 |
from US $4.95 |
||
|
92055
|
92055
92055-112 O-RING,53.5MM |
92055-112 |
from US $4.80 |
||
|
92072
|
92072
92072-1237 BAND,L=250 |
92072-1237 |
from US $2.74 |
||
|
92075
|
92075
92075-1690 DAMPER |
92075-1690 |
from US $3.90 |
||
|
92150
|
92150
92150-1504 BOLT |
92150-1504 |
from US $3.17 |
||
|
92170
|
92170
92170-1032 CLAMP,COOLING HOSE |
92170-1032 |
from US $17.42 |
||
|
92170A
|
92170A
92170-1034 CLAMP,COOLING HOSE |
92170-1034 |
from US $14.41 |
||
|
92170B
|
92170B
92171-0179 CLAMP |
92171-0179 |
from US $6.49 |
||
|
92210
|
92210
92210-1125 NUT |
92210-1125 |
from US $2.85 |
||
