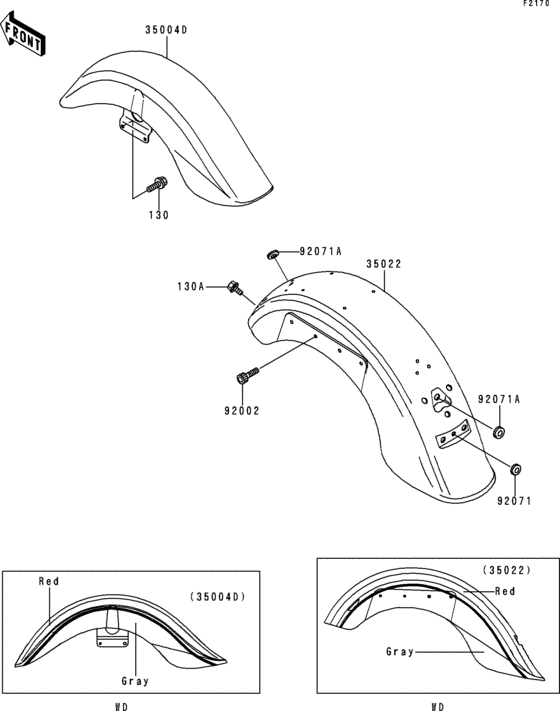

Fenders Diagram Kawasaki VN1500 VN1500 Classic Tourer Fi
- Year
- 2000
- Model code
- VN1500-L1H
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CB0814 BOLT-FLANGED,8X14 |
130CB0814 |
from US $1.20 |
||
|
130A
|
130A
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.14 |
||
|
35004D
|
35004D
35004-5153-C3 FENDER-FRONT,RED/GRAY |
35004-5153-C3 |
US $474.09 |
||
|
35022
|
35022
35022-5065-C3
Fender-comp-rear,red/
|
35022-5065-C3 |
— | ||
|
92002
|
92002
92002-1442 BOLT,SOCKET,8X25 |
92002-1442 |
from US $2.72 |
||
|
92071
|
92071
92071-019 GROMMET HARNESS 10MM |
92071-019 |
from US $2.27 |
||
|
92071A
|
92071A
92071-099 GROMMET,HARNESS |
92071-099 |
from US $2.38 |
