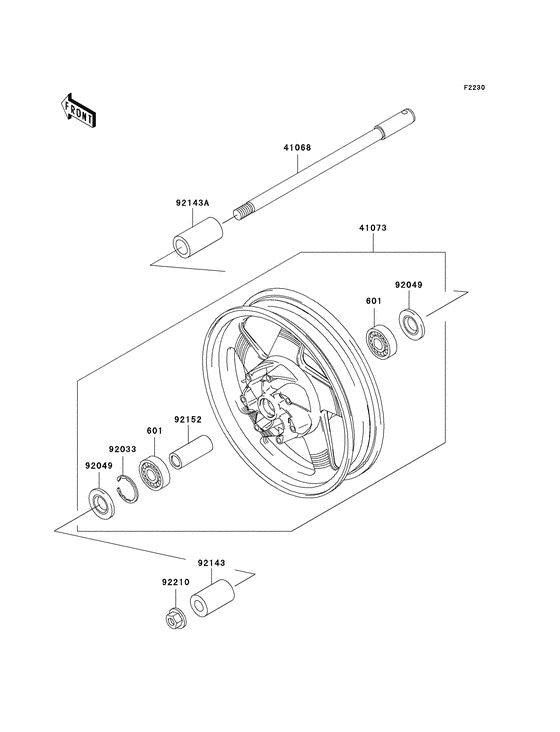

Front wheel Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2001
- Model code
- VN1500-L2
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601B6004UU BEARING,BALL,*6004UU*Bearing-ball,#6004uuc3; |
601B6004UU |
from US $25.58 |
||
|
41068
|
41068
41068-1411 AXLE,FRAxle,fr; |
41068-1411 |
from US $65.67 |
||
|
41073
|
41073
41073-1666-CX WHEEL-ASSY,FR,SILVERWheel-assy,fr,silver; |
41073-1666-CX |
from US $877.82 |
||
|
92033
|
92033
92033-1041 CIRCLIP,42MMRing-snap,42mm; |
92033-1041 |
from US $3.48 |
||
|
92049
|
92049
92049-1057 OIL SEAL,BJN30427-C3Seal-oil,bjn30427-c3; |
92049-1057 |
from US $8.86 |
||
|
92143
|
92143
92143-1837 COLLAR,FR AXLE,LH,L=4Collar,fr axle,lh,l=48.5; |
92143-1837 |
from US $21.84 |
||
|
92143A
|
92143A
92143-1854 COLLAR,FR AXLE,RH,L=5Collar,fr axle,rh,l=57.5; |
92143-1854 |
from US $21.84 |
||
|
92152
|
92152
92152-1057 COLLAR,FR HUB,L=100Collar,fr hub,l=100; |
92152-1057 |
from US $15.21 |
||
|
92210
|
92210
92210-1158 NUT,FLANGED,18MMNut,flanged,18mm; |
92210-1158 |
US $6.97 |
