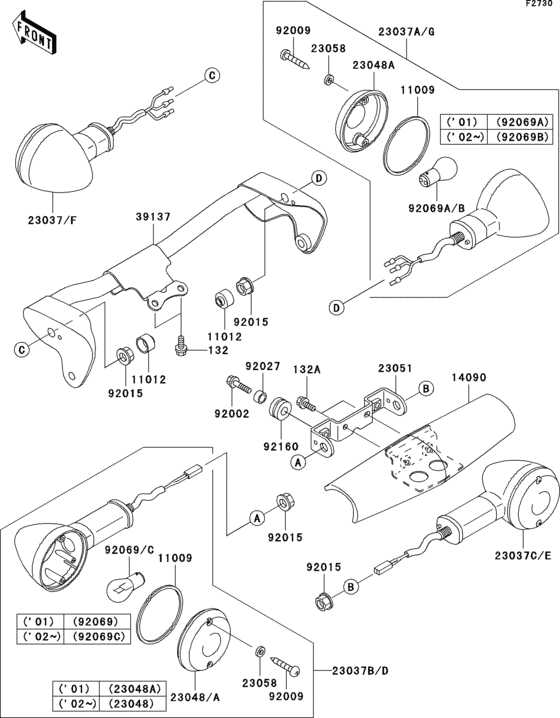

Turn signals Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2001
- Model code
- VN1500-L2
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKBVNAL1 1A007001 - 1A013000
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
92002-1608 BOLT |
92002-1608 |
from US $3.11 |
||
|
132A
|
132A
132BB0614 BOLT-FLANGED-SMALL,6X |
132BB0614 |
from US $1.43 |
||
|
11009
|
11009
11009-1413 GASKET,SIGNAL LAMP |
11009-1413 |
from US $3.48 |
||
|
11012
|
11012
11012-1367 CAP,SIGNAL LAMP |
11012-1367 |
from US $4.75 |
||
|
14090
|
14090
14090-1691 COVER |
14090-1691 |
from US $48.17 |
||
|
23037
|
23037
23037-1377 LAMP-ASSY-SIGNAL,FR |
23037-1377 |
from US $71.51 |
||
|
23048A
|
23048A
23048-1066
LENS-SIGNAL LAMP
|
23048-1066 |
— | ||
| replacement | |||||
|
23048A
|
23048A
23048-0036 LENS-SIGNAL LAMP |
23048-0036 |
from US $9.91 |
||
|
23051
|
23051
23051-1230 BRACKET-SIGNAL LAMP,R |
23051-1230 |
from US $15.05 |
||
|
23058
|
23058
23058002 WASHER-PLAIN,4MM |
23058002 |
from US $2.85 |
||
|
39137
|
39137
39137-1071 STAY-COMP,SIGNAL LAMP |
39137-1071 |
from US $77.04 |
||
|
92002
|
92002
92001-1774 BOLT,6X22 |
92001-1774 |
from US $0.63 |
||
|
92009
|
92009
92009-1637 SCREW,TAPPING,4X25 |
92009-1637 |
from US $2.53 |
||
|
92015
|
92015
92015-1428 NUT,FLANGED,10MM |
92015-1428 |
from US $3.01 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDER |
92027-162 |
from US $4.80 |
||
|
92069
|
92069
92069-055 BULB 12V 32CP |
92069-055 |
from US $4.09 |
||
|
92069A
|
92069A
92069-060 BULB,12V 23/8W |
92069-060 |
from US $6.65 |
||
|
92160
|
92160
92160-1162 DAMPER |
92160-1162 |
from US $3.90 |
||
