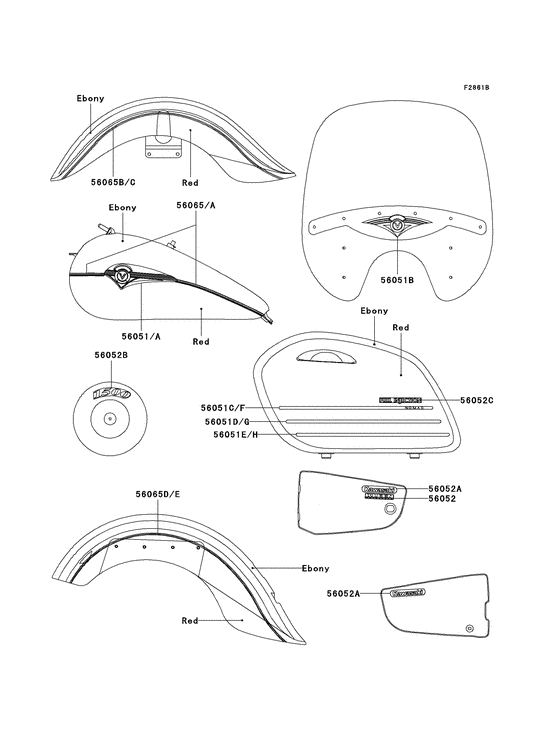

Decals (Ebony/red; vn1500-l3) Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2002
- Model code
- VN1500-L3
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56051
|
56051
56051-1808
MARK,FUEL TANK,LH
Mark,fuel tank,lh; |
56051-1808 |
— | ||
|
56051A
|
56051A
56051-1809 MARK,FUEL TANK,RHMark,fuel tank,rh; |
56051-1809 |
from US $80.44 |
||
|
56051B
|
56051B
56051-1810 VULCAN WNDSHLD EMBLEMMark,windshield bracket; |
56051-1810 |
from US $56.05 |
||
|
56051C
|
56051C
56051-1811 MARK,SIDE BAG COVER,UMark,side bag cover,upp,lh; |
56051-1811 |
from US $69.35 |
||
|
56051D
|
56051D
56051-1812 MARK,SIDE BAG COVER,CMark,side bag cover,cnt,lh; |
56051-1812 |
from US $65.97 |
||
|
56051E
|
56051E
56051-1813 MARK,SIDE BAG COVER,LMark,side bag cover,lwr,lh; |
56051-1813 |
from US $65.97 |
||
|
56051F
|
56051F
56051-1814 MARK,SIDE BAG COVER,UMark,side bag cover,upp,rh; |
56051-1814 |
US $76.50 |
||
|
56051G
|
56051G
56051-1815 MARK,SIDE BAG COVER,CMark,side bag cover,cnt,rh; |
56051-1815 |
from US $65.97 |
||
|
56051H
|
56051H
56051-1816 MARK,SIDE BAG COVER,LMark,side bag cover,lwr,rh; |
56051-1816 |
from US $65.97 |
||
|
56052
|
56052
56052-1384 MARK,SIDE COVER,KLEENMark,side cover,kleen; |
56052-1384 |
from US $17.46 |
||
|
56052A
|
56052A
56052-1533 MARK,SIDE COVER,KAWASMark,side cover,kawasaki; |
56052-1533 |
from US $18.53 |
||
|
56052B
|
56052B
56052-1545 MARK,AIR CLEANER COVEMark,air cleaner cover,rh,1500; |
56052-1545 |
from US $14.57 |
||
|
56052C
|
56052C
56052-1553 MARK,SIDE BAG,FUEL INMark,side bag,fuel injection; |
56052-1553 |
US $23.06 |
||
|
56065
|
56065
56065-1239 Pattern,fuel tank,lhPattern,fuel tank,lh; |
56065-1239 |
from US $52.96 |
||
|
56065A
|
56065A
56065-1240 Pattern,fuel tank,rhPattern,fuel tank,rh; |
56065-1240 |
from US $52.96 |
||
|
56065B
|
56065B
56065-1241 PATTERN,FR FENDER,LHPattern,fr fender,lh; |
56065-1241 |
from US $67.77 |
||
|
56065C
|
56065C
56065-1242 PATTERN,FR FENDER,RHPattern,fr fender,rh; |
56065-1242 |
from US $67.77 |
||
|
56065D
|
56065D
56065-1243 PATTERN,RR FENDER,LHPattern,rr fender,lh; |
56065-1243 |
US $72.56 |
||
|
56065E
|
56065E
56065-1244 PATTERN,RR FENDER,RHPattern,rr fender,rh; |
56065-1244 |
US $72.56 |
