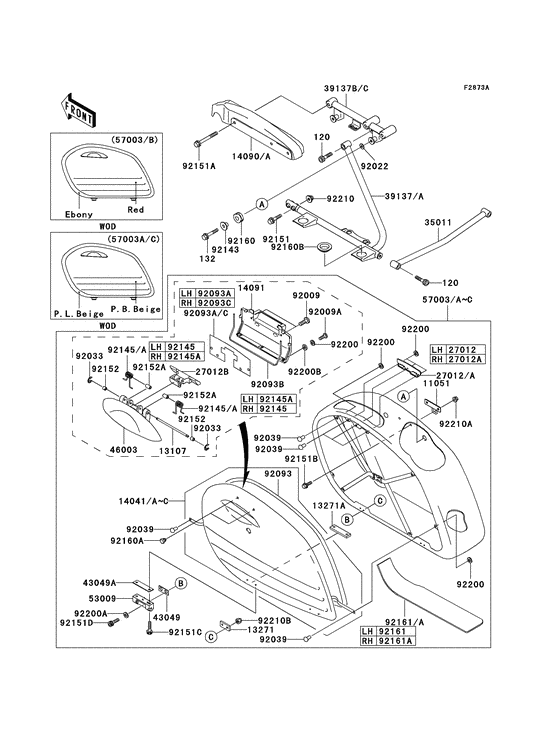

Saddlebags (Vn1500-l3) Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2002
- Model code
- VN1500-L3
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11051
|
11051
11051-1104 BRACKET,SIDE BAG BODYBracket,side bag body; |
11051-1104 |
from US $7.29 |
||
|
13107
|
13107
13107-1403 SHAFT |
13107-1403 |
from US $3.17 |
||
|
13271
|
13271
13271-1146 PLATE |
13271-1146 |
from US $3.01 |
||
|
13271A
|
13271A
13271-1147 PLATE |
13271-1147 |
from US $5.70 |
||
|
14041
|
14041
14041-1130-L1 COVER,SIDE BAG,LH,C.CCover,side bag,lh,c.c.red; |
14041-1130-L1 |
from US $527.08 |
||
|
14041A
|
14041A
14041-1130-X8 COVER,SIDE BAG,LH,P.BCover,side bag,lh,p.b.beige; |
14041-1130-X8 |
US $618.70 |
||
|
14041B
|
14041B
14041-1131-L1 COVER,SIDE BAG,RH,C.CCover,side bag,rh,c.c.red; |
14041-1131-L1 |
from US $477.71 |
||
|
14041C
|
14041C
14041-1131-X8 COVER,SIDE BAG,RH,P.BCover,side bag,rh,p.b.beige; |
14041-1131-X8 |
US $561.94 |
||
|
14090
|
14090
14090-1894 COVER,RR FENDER,LHCover,rr fender,lh; |
14090-1894 |
US $60.74 |
||
|
14090A
|
14090A
14090-1895 COVER,RR FENDER,RHCover,rr fender,rh; |
14090-1895 |
from US $60.74 |
||
|
14091
|
14091
14091-1069 COVERCover,lid maintenance; |
14091-1069 |
from US $14.10 |
||
|
27012
|
27012
27012-1571 HOOK,LOCK PLATE,LHHook,lock plate,lh; |
27012-1571 |
from US $9.98 |
||
|
27012A
|
27012A
27012-1572 HOOK,LOCK PLATE,RHHook,lock plate,rh; |
27012-1572 |
from US $9.98 |
||
|
27012B
|
27012B
27012-1575 HOOK,HANDLEHook,handle; |
27012-1575 |
from US $13.46 |
||
|
35011
|
35011
35011-1896 STAY,SIDE BAGStay,side bag; |
35011-1896 |
US $52.51 |
||
|
39137
|
39137
39137-1067 STAY-COMP,SIDE BAG,LHStay-comp,side bag,lh,lwr; |
39137-1067 |
US $330.84 |
||
|
39137A
|
39137A
39137-1068 STAY-COMP,SIDE BAG,RHStay-comp,side bag,rh,lwr; |
39137-1068 |
from US $148.85 |
||
|
39137B
|
39137B
39137-1075 STAY-COMP,SIDE BAG,LHStay-comp,side bag,lh,upp; |
39137-1075 |
from US $148.85 |
||
|
39137C
|
39137C
39137-1076 STAY-COMP,SIDE BAG,RHStay-comp,side bag,rh,upp; |
39137-1076 |
from US $148.85 |
||
|
43049
|
43049
43049-1084 PACKING |
43049-1084 |
from US $1.74 |
||
|
43049A
|
43049A
43049-1086 PACKING |
43049-1086 |
from US $1.74 |
||
|
46003
|
46003
46003-1505 HANDLE,SIDE BAGHandle,side bag; |
46003-1505 |
from US $136.73 |
||
|
53009
|
53009
53009-1104 HINGEHinge,side bag; |
53009-1104 |
from US $17.11 |
||
|
57003
|
57003
57003-1084-219 BAG-ASSY,LH,EBONY+REDBag-assy,lh,ebony+red; |
57003-1084-219 |
from US $1,684.32 |
||
|
57003A
|
57003A
57003-1084-220 BAG-ASSY,LH,BEIGE/BEIBag-assy,lh,beige/beige; |
57003-1084-220 |
US $1,986.35 |
||
|
57003B
|
57003B
57003-1085-219 BAG-ASSY,RH,EBONY+REDBag-assy,rh,ebony+red; |
57003-1085-219 |
from US $1,684.32 |
||
|
57003C
|
57003C
57003-1085-220 BAG-ASSY,RH,BEIGE/BEIBag-assy,rh,beige/beige; |
57003-1085-220 |
US $2,145.26 |
||
|
92009
|
92009
92009-1870 SCREWScrew,tapping,4x12; |
92009-1870 |
from US $0.95 |
||
|
92009A
|
92009A
92009-1871 SCREWScrew,tapping,3x8; |
92009-1871 |
from US $0.95 |
||
|
92022
|
92022
92022-1317 WASHER,8.5X20X1.6,BLAWasher,8.5x20x1.6,black; |
92022-1317 |
from US $2.69 |
||
|
92033
|
92033
92033-1300 RING-SNAP |
92033-1300 |
from US $0.95 |
||
|
92039
|
92039
92039-1236 RIVET |
92039-1236 |
from US $1.27 |
||
|
92093
|
92093
92093-1486 SEAL-SIDE BAG COVERSeal,side bag cover; |
92093-1486 |
from US $8.08 |
||
|
92093A
|
92093A
92093-1487 SEAL |
92093-1487 |
from US $3.64 |
||
|
92093B
|
92093B
92093-1488 SEAL |
92093-1488 |
from US $1.90 |
||
|
92093C
|
92093C
92093-1489 SEAL |
92093-1489 |
from US $3.64 |
||
|
92143
|
92143
92143-1450 COLLAR |
92143-1450 |
from US $6.65 |
||
|
92145
|
92145
92145-1175 SPRING |
92145-1175 |
from US $5.23 |
||
|
92145A
|
92145A
92145-1200 SPRING |
92145-1200 |
from US $5.23 |
||
|
92151
|
92151
92151-1402 BOLT,FLANGED,8X35Bolt,flanged,8x35; |
92151-1402 |
from US $1.27 |
||
|
120
|
120
120S0835 BOLT-SOCKET,8X35,BLACBolt-socket,8x35,black; |
120S0835 |
from US $1.74 |
||
| replacement | |||||
|
120
|
120
120CB0835 BOLT-SOCKET,8X35,BLACBolt-socket,8x35,black; |
120CB0835 |
from US $1.27 |
||
|
132
|
132
132J0845 BOLT-FLANGED-SMALL |
132J0845 |
from US $1.90 |
||
| replacement | |||||
|
132
|
132
132BB0845 BOLT-FLANGED-SMALL |
132BB0845 |
from US $1.56 |
||
|
92151A
|
92151A
92151-1403 BOLT,FLANGED,8X75Bolt,flanged,8x75; |
92151-1403 |
from US $3.24 |
||
|
92151B
|
92151B
92151-1435 BOLT,FLANGED,6X16Bolt,flanged,6x16; |
92151-1435 |
from US $1.11 |
||
|
92151C
|
92151C
92151-1436 BOLTBolt,socket,4x22; |
92151-1436 |
from US $1.27 |
||
|
92151D
|
92151D
92151-1437 BOLTBolt,socket,4x18; |
92151-1437 |
from US $1.27 |
||
|
92152
|
92152
92152-1121 COLLAR |
92152-1121 |
from US $2.38 |
||
|
92152A
|
92152A
92152-1122 COLLAR |
92152-1122 |
from US $1.90 |
||
|
92160
|
92160
92160-1012 DAMPER |
92160-1012 |
from US $3.33 |
||
|
92160A
|
92160A
92160-1976 DAMPER |
92160-1976 |
from US $1.43 |
||
|
92160B
|
92160B
92160-1981 DAMPER |
92160-1981 |
from US $7.13 |
||
|
92161
|
92161
92161-1171 DAMPER,SIDE BAG,LHDamper,side bag,lh; |
92161-1171 |
from US $24.38 |
||
|
92161A
|
92161A
92161-1176 DAMPER,SIDE BAG,RHDamper,side bag,rh; |
92161-1176 |
from US $24.38 |
||
|
92200
|
92200
92200-1442 WASHERWasher,3mm; |
92200-1442 |
from US $0.95 |
||
|
92200A
|
92200A
92200-1443 WASHERWasher,4mm; |
92200-1443 |
from US $0.95 |
||
|
92200B
|
92200B
92200-1444 WASHER,3MMWasher,3mm; |
92200-1444 |
from US $0.95 |
||
|
92210
|
92210
92210-1161 NUT,CAP,8MMNut,cap,8mm; |
92210-1161 |
from US $1.27 |
||
|
92210A
|
92210A
92210-1167 NUT,CAP,6MMNut,cap,6mm; |
92210-1167 |
from US $1.27 |
||
|
92210B
|
92210B
92210-1168 NUTNut,cap,4mm; |
92210-1168 |
from US $1.11 |
||
