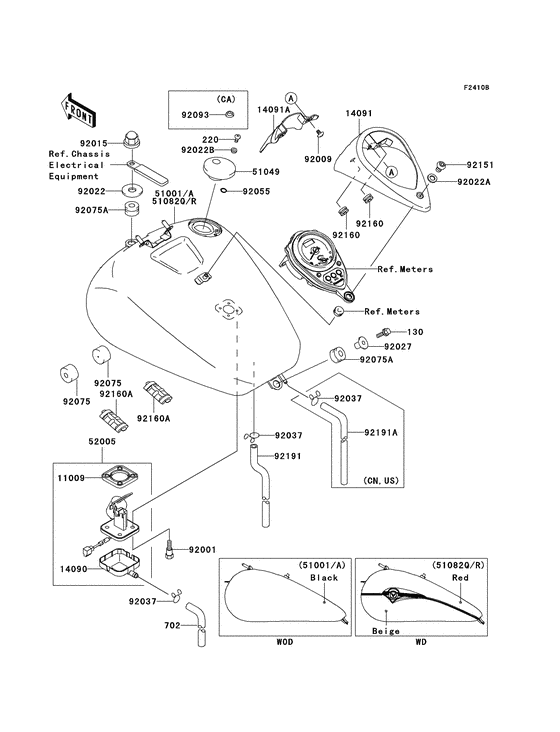

Fuel tank (Vn1500-l4) Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2003
- Model code
- VN1500-L4
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11009
|
11009
11009-1656
GASKET,FUEL GAUGE
Gasket,fuel gauge; |
11009-1656 |
— | ||
| replacement | |||||
|
11009
|
11009
11061-0292 GASKET,FUEL GAUGE,W/BGasket,fuel gauge; |
11061-0292 |
from US $11.98 |
||
|
14090
|
14090
14090-1624 COVER,FUEL GAUGECover,fuel gauge; |
14090-1624 |
from US $12.67 |
||
|
14091
|
14091
14091-1208 COVER,METERCover,meter; |
14091-1208 |
from US $133.14 |
||
|
14091A
|
14091A
14091-1301 COVER,METER,FRCover,meter,fr; |
14091-1301 |
from US $31.72 |
||
|
51001
|
51001
51001-1570-B5 TANK-COMP-FUEL,BLACKTank-comp-fuel,black; |
51001-1570-B5 |
US $1,256.02 |
||
|
51001A
|
51001A
51001-1586-B5 TANK-COMP-FUEL,BLACKTank-comp-fuel,black; |
51001-1586-B5 |
US $1,400.65 |
||
| replacement | |||||
|
51001A
|
51001A
51085-5055-B5 TANK-COMP-FUEL,BLACKTank-comp-fuel,black; |
51085-5055-B5 |
US $1,400.65 |
||
|
51049
|
51049
51049-1126
CAP-TANK,FUEL
Cap-tank,fuel; |
51049-1126 |
— | ||
| replacement | |||||
|
51049
|
51049
51049-0003 CAP-TANK,FUELCap-tank,fuel; |
51049-0003 |
from US $77.34 |
||
|
51082Q
|
51082Q
51082-5310-SI TANK-COMP-FUEL,RED/BEIGETank-comp-fuel,red/beige; |
51082-5310-SI |
from US $1,632.96 |
||
|
51082R
|
51082R
51082-5311-SI TANK-COMP-FUEL,RED/BETank-comp-fuel,red/beige; |
51082-5311-SI |
US $1,528.02 |
||
|
130
|
130
130H0830 BOLT-FLANGED,8X30Bolt-flanged,8x30; |
130H0830 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BA0830 BOLT-FLANGED,8X30Bolt-flanged,8x30; |
130BA0830 |
from US $1.43 |
||
|
220
|
220
220D0510
SCREW-PAN-CROSS,5X10
|
220D0510 |
— | ||
| replacement | |||||
|
220
|
220
220AA0510 SCREW-PAN-CROSS,5X10 |
220AA0510 |
from US $0.48 |
||
|
702
|
702
702A07860
TUBE-BREATHER (BULK)
Tube-rubber,7x10x860; |
702A07860 |
— | ||
| replacement | |||||
|
702
|
702
702A071000 TUBE-BREATHER (BULK)Tube-rubber,7x10x860; |
702A071000 |
from US $11.40 |
||
|
52005
|
52005
52005-1138 GAUGE,FUELGauge,fuel; |
52005-1138 |
from US $82.28 |
||
| replacement | |||||
|
52005
|
52005
52005-5006 GAUGE,FUELGauge,fuel; |
52005-5006 |
from US $95.49 |
||
|
92001
|
92001
92001-1705
BOLT,FUEL GAGE
Bolt,fuel gauge; |
92001-1705 |
— | ||
|
92009
|
92009
92009-1877 SCREW,6X12Screw,6x12; |
92009-1877 |
from US $1.43 |
||
|
92015
|
92015
92015-1174 NUT,CAP,8MM,BLACKNut,cap,8mm,black; |
92015-1174 |
from US $3.01 |
||
|
92022
|
92022
92022-1345 WASHER,8X26X2.3Washer,8x26x2.3; |
92022-1345 |
US $3.29 |
||
| replacement | |||||
|
92022
|
92022
92022-1564 WASHER,8X26X2.3Washer,8x26x2.3; |
92022-1564 |
from US $2.49 |
||
|
92022A
|
92022A
92022-183 WASHER-PLAINWasher,6.2x11x1.5; |
92022-183 |
from US $2.53 |
||
|
92022B
|
92022B
92022-1977 WASHER,5.1X10X1.2Washer,5.1x10x1.0; |
92022-1977 |
from US $2.53 |
||
|
92027
|
92027
92027-1780 COLLAR,L=19.3Collar,l=19.3; |
92027-1780 |
from US $4.80 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERClamp,tube; |
92037-147 |
from US $4.95 |
||
|
92055
|
92055
92055-1552 RING-ORing-o,id=9; |
92055-1552 |
from US $2.22 |
||
|
92075
|
92075
92075-125 DAMPER RUBBER,FL TANKDamper,fuel tank; |
92075-125 |
from US $4.44 |
||
|
92075A
|
92075A
92075-1736 DAMPER |
92075-1736 |
from US $3.96 |
||
|
92093
|
92093
92093-1030 OIL SEAL,FUEL TANKSeal,fuel tank cap; |
92093-1030 |
from US $5.23 |
||
|
92151
|
92151
92151-1449 BOLT,SOCKET,6X10Bolt,socket,6x10; |
92151-1449 |
from US $1.61 |
||
|
92160
|
92160
92160-1162 DAMPER |
92160-1162 |
from US $3.90 |
||
|
92160A
|
92160A
92160-1907 DAMPER,FUEL TANKDamper,fuel tank; |
92160-1907 |
from US $13.31 |
||
|
92191
|
92191
92191-1272 TUBE,DRAINTube,drain; |
92191-1272 |
from US $16.16 |
||
|
92191A
|
92191A
92191-1529 TUBE,5X10X650Tube,5x10x650; |
92191-1529 |
from US $10.77 |
||
