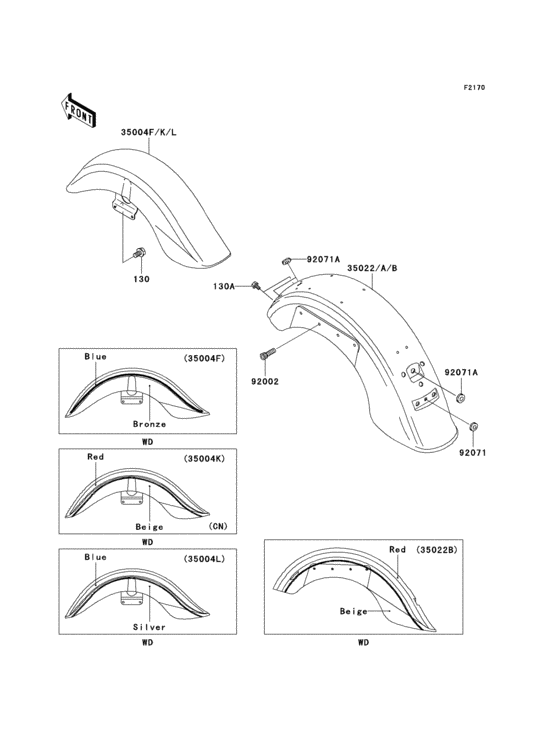

Fenders(1/2) Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2004
- Colour
- Metallic Dark Bronze (1Z)
- Model code
- VN1500-L5
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0814 BOLT-FLANGED |
130J0814 |
US $31.30 |
||
| replacements | |||||
|
130
|
130
130BB0814 BOLT-FLANGED |
130BB0814 |
from US $1.27 |
||
|
130
|
130
130CB0814 BOLT-FLANGED,8X14 |
130CB0814 |
from US $1.24 |
||
|
130A
|
130A
130J0816
BOLT-FLANGED
|
130J0816 |
— | ||
| replacement | |||||
|
130A
|
130A
130BB0816 BOLT-FLANGED |
130BB0816 |
from US $1.43 |
||
|
35004F
|
35004F
35004-5156-1Z FENDER-FRONT,M.D.BRON |
35004-5156-1Z |
from US $524.42 |
||
|
35022A
|
35022A
35022-1315-1Z FENDER-COMP-REAR,M.D. |
35022-1315-1Z |
from US $787.55 |
||
|
92002
|
92002
92002-1442 BOLT,SOCKET,8X25 |
92002-1442 |
from US $3.01 |
||
|
92071
|
92071
92071-019 GROMMET HARNESS 10MM |
92071-019 |
from US $2.69 |
||
|
92071A
|
92071A
92071-099 GROMMET,HARNESS |
92071-099 |
from US $3.01 |
||
