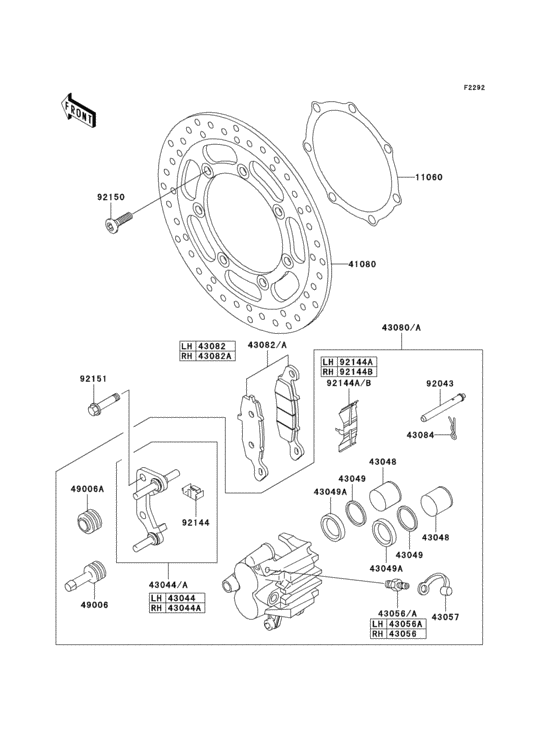

Front brake Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2004
- Colour
- Metallic Dark Bronze (1Z)
- Model code
- VN1500-L5
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11060
|
11060
11060-1865 GASKET,FRONT DISC |
11060-1865 |
from US $15.68 |
||
|
41080
|
41080
41080-1447-CM DISC,FR,SILVER |
41080-1447-CM |
from US $335.41 |
||
| replacement | |||||
|
41080
|
41080
41080-0015-CM DISC,FR,SILVER |
41080-0015-CM |
from US $342.14 |
||
|
43044
|
43044
43044-1117 HOLDER-COMP-CALIPER,F |
43044-1117 |
from US $145.71 |
||
|
43044A
|
43044A
43044-1129 HOLDER-COMP-CALIPER,R |
43044-1129 |
from US $163.06 |
||
|
43048
|
43048
43048-1052 PISTON-CALIPER |
43048-1052 |
from US $42.79 |
||
|
43049
|
43049
43049-1055 PACKING,PISTON |
43049-1055 |
from US $9.56 |
||
|
43049A
|
43049A
43049-1096 PACKING,PISTON SEALPacking, piston seal |
43049-1096 |
from US $9.56 |
||
|
43056
|
43056
43056-003
BLEEDER SET
|
43056-003 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SET |
43085-001 |
from US $14.69 |
||
|
43056A
|
43056A
43056-1054
Breather-brake
|
43056-1054 |
— | ||
| replacement | |||||
|
43056A
|
43056A
43085-001 BLEEDER SET |
43085-001 |
from US $14.69 |
||
|
43057
|
43057
43057-003 CAP,BREEDER |
43057-003 |
from US $3.01 |
||
|
43080
|
43080
43080-5008-GN CALIPER-SUB-ASSY,FR,L |
43080-5008-GN |
from US $331.26 |
||
|
43080A
|
43080A
43080-5009-GN CALIPER-SUB-ASSY,FR,R |
43080-5009-GN |
from US $331.26 |
||
|
43082
|
43082
43082-1245 BRAKE PAD-ASSY (LH) |
43082-1245 |
from US $54.35 |
||
|
43082A
|
43082A
43082-1246 BRAKE PAD-ASSY (RH) |
43082-1246 |
from US $53.53 |
||
|
43084
|
43084
43084003 CLIP |
43084003 |
from US $3.17 |
||
|
49006
|
49006
49006-1054 BOOT,CALIPER |
49006-1054 |
from US $8.55 |
||
|
49006A
|
49006A
49006-1095 BOOT,CALIPER |
49006-1095 |
from US $4.91 |
||
|
92043
|
92043
92043-1489 PIN,PAD |
92043-1489 |
from US $4.80 |
||
|
92144
|
92144
92144-1831 SPRING,STOPPER |
92144-1831 |
from US $4.09 |
||
|
92144A
|
92144A
92144-1832 SPRING,PAD |
92144-1832 |
from US $6.97 |
||
|
92144B
|
92144B
92144-1844 SPRING,PAD,RH |
92144-1844 |
from US $6.97 |
||
|
92150
|
92150
92150-1771 BOLT,SOCKET,8X30 |
92150-1771 |
US $6.05 |
||
| replacement | |||||
|
92150
|
92150
92154-1865 BOLT,SOCKET,8X30 |
92154-1865 |
from US $2.85 |
||
|
92151
|
92151
92151-1321 BOLT,FLANGED,10X47 |
92151-1321 |
from US $3.80 |
||
