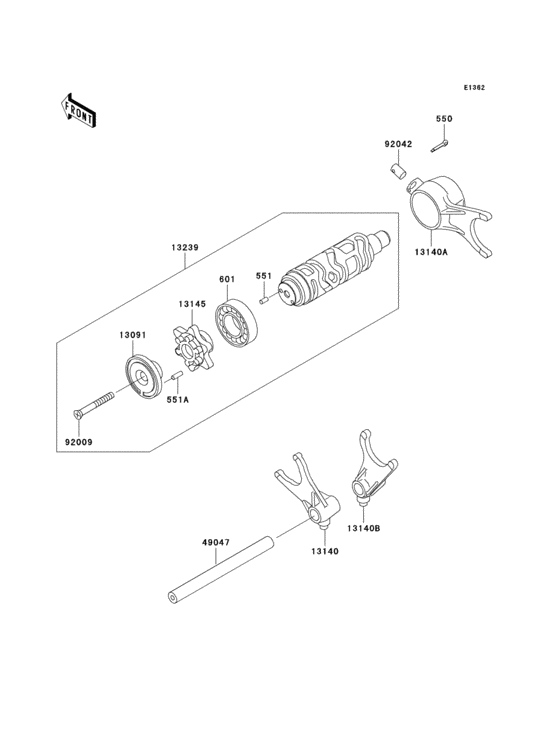

Gear change drum/shift fork(s) Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2004
- Colour
- Metallic Dark Bronze (1Z)
- Model code
- VN1500-L5
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
550
|
550
550D3020 PIN-COTTER,3.0X20 |
550D3020 |
US $1.11 |
||
| replacement | |||||
|
550
|
550
550AA3020 PIN-COTTER,3.0X20 |
550AA3020 |
from US $1.11 |
||
|
551
|
551
551A0408 PIN,DOWEL,4X8 |
551A0408 |
from US $1.17 |
||
|
551A
|
551A
551A0412 PIN-DOWEL |
551A0412 |
from US $2.09 |
||
|
601
|
601
601A6005 BEARING-BALL |
601A6005 |
from US $10.93 |
||
|
13091
|
13091
13091-1104 HOLDER,CHANGE DRUM PIN |
13091-1104 |
from US $17.58 |
||
|
13140
|
13140
13140-1270
FORK-SHIFT,OUTPUT TOP
|
13140-1270 |
— | ||
|
13140A
|
13140A
13140-1292 FORK-SHIFT,INPUT 3RD |
13140-1292 |
from US $80.04 |
||
|
13140B
|
13140B
13140-1293 FORK-SHIFT,OUTPUT 4TH |
13140-1293 |
from US $80.04 |
||
|
13145
|
13145
13145-1089 CAM-CHANGE DRUM |
13145-1089 |
US $37.25 |
||
|
13239
|
13239
13239-1210 DRUM-ASSY-CHANGE |
13239-1210 |
US $214.90 |
||
| replacement | |||||
|
13239
|
13239
13239-1214
DRUM-ASSY-CHANGE
|
13239-1214 |
— | ||
|
49047
|
49047
49047-1095 ROD-SHIFT,IN |
49047-1095 |
from US $19.80 |
||
|
92009
|
92009
92009-1599 SCREW |
92009-1599 |
from US $2.53 |
||
|
92042
|
92042
92042-021 DOWEL PIN,8X18 |
92042-021 |
from US $7.92 |
||
