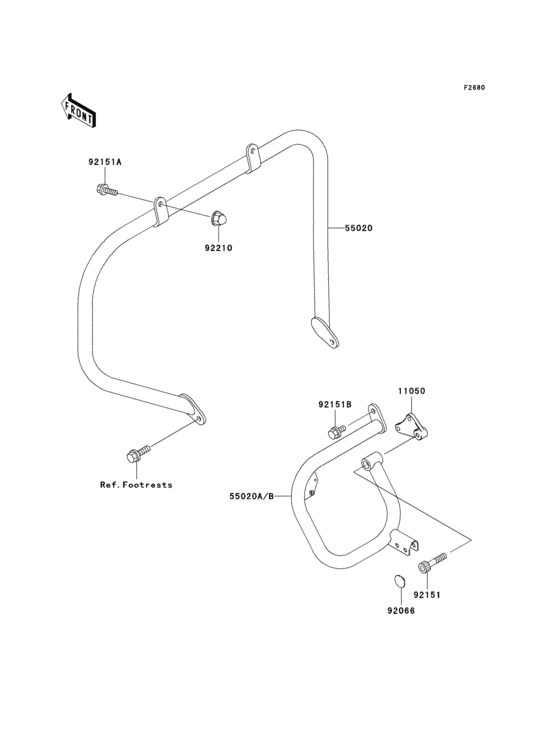

Guard(s) Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2004
- Colour
- Metallic Dark Bronze (1Z)
- Model code
- VN1500-L5
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11050
|
11050
11050-1697 BRACKET,REAR GUARD |
11050-1697 |
US $28.72 |
||
|
55020
|
55020
55020-1638 GUARD,FR |
55020-1638 |
from US $238.13 |
||
|
55020A
|
55020A
55020-1683 GUARD,RR,LH |
55020-1683 |
from US $122.22 |
||
|
55020B
|
55020B
55020-1684 GUARD,RR,RH |
55020-1684 |
US $122.22 |
||
|
92066
|
92066
92066-1285 PLUG |
92066-1285 |
from US $5.23 |
||
|
92151
|
92151
92151-1300 BOLT,SOCKET,10X50 |
92151-1300 |
from US $3.17 |
||
|
92151A
|
92151A
92151-1380 BOLT,FLANGED,10X25 |
92151-1380 |
from US $1.90 |
||
|
92151B
|
92151B
92151-1381 BOLT,FLANGED,10X20 |
92151-1381 |
from US $1.67 |
||
|
92210
|
92210
92210-1160
NUT,CAP,10MM
|
92210-1160 |
— |
