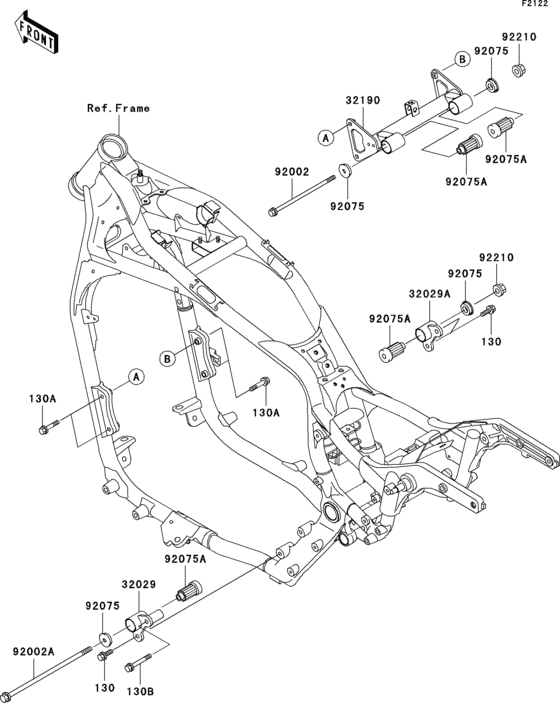

Engine mount Diagram Kawasaki VN1500 Vulcan 1500 Nomad Fi
- Year
- 2004
- Model code
- VN1500-L5
- Sales region
- Canada
- Engine Capacity
- 1500
- Frame
- JKBVNAL1 4A027001 - 999999
- Model
- Vulcan 1500 Classic Tourer Fi/ Vulcan 1500 Nomad Fi
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CB0825 BOLT-FLANGED |
130CB0825 |
from US $1.96 |
||
|
130A
|
130A
130BB0840 BOLT-FLANGED,8X40 |
130BB0840 |
from US $1.27 |
||
|
130B
|
130B
130J0860 BOLT-FLANGED |
130J0860 |
from US $1.90 |
||
| replacement | |||||
|
130B
|
130B
130BB0860 BOLT-FLANGED |
130BB0860 |
from US $1.56 |
||
|
32029
|
32029
32029-1986 BRACKET-ENGINE,RR,LH |
32029-1986 |
from US $43.08 |
||
|
32029A
|
32029A
32029-1987 BRACKET-ENGINE,RR,RH |
32029-1987 |
from US $37.70 |
||
|
32190
|
32190
32190-0022 BRACKET-ENGINE,FR |
32190-0022 |
from US $131.35 |
||
|
92002
|
92002
92153-1909 BOLT,FLANGED,10X285 |
92153-1909 |
from US $12.04 |
||
|
92002A
|
92002A
92002-1540 BOLT,FLANGED,10X330 |
92002-1540 |
from US $16.63 |
||
|
92075
|
92075
92075-1738 DAMPER,ENGINE BRACKET |
92075-1738 |
from US $14.89 |
||
|
92075A
|
92075A
92075-1739 DAMPER,ENGINE MOUNT,M |
92075-1739 |
from US $26.93 |
||
|
92210
|
92210
92210-1081 NUT |
92210-1081 |
from US $9.20 |
||
