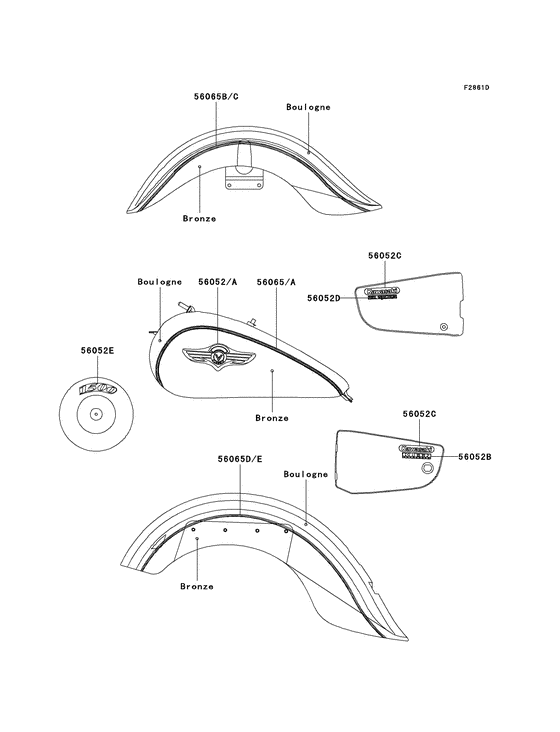

Decals (Boulogne/bronze) Diagram Kawasaki VN1500 Vulcan 1500 Classic FI
- Year
- 2002
- Model code
- VN1500-N3
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic FI/ VN1500 Classic FI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56052
|
56052
56052-1195 MARK,FUEL TANK,LHMark,fuel tank,lh; |
56052-1195 |
from US $113.10 |
||
|
56052A
|
56052A
56052-1196 MARK,FUEL TANK,RHMark,fuel tank,rh; |
56052-1196 |
from US $113.10 |
||
|
56052B
|
56052B
56052-1384 MARK,SIDE COVER,KLEENMark,side cover,kleen; |
56052-1384 |
from US $17.46 |
||
|
56052C
|
56052C
56052-1533 MARK,SIDE COVER,KAWASMark,side cover,kawasaki; |
56052-1533 |
from US $18.53 |
||
|
56052D
|
56052D
56052-1534 MARK,SIDE COVER,FUELMark,side cover,fuel injection; |
56052-1534 |
from US $17.17 |
||
|
56052E
|
56052E
56052-1545 MARK,AIR CLEANER COVEMark,air cleaner cover,rh,1500; |
56052-1545 |
from US $14.57 |
||
|
56065
|
56065
56065-1272 Pattern,fuel tank,lhPattern,fuel tank,lh; |
56065-1272 |
from US $138.23 |
||
|
56065A
|
56065A
56065-1273 Pattern,fuel tank,rhPattern,fuel tank,rh; |
56065-1273 |
from US $138.23 |
||
|
56065B
|
56065B
56065-1274 PATTERN,FR FENDER,LHPattern,fr fender,lh; |
56065-1274 |
from US $77.04 |
||
|
56065C
|
56065C
56065-1275 PATTERN,FR FENDER,RHPattern,fr fender,rh; |
56065-1275 |
from US $77.04 |
||
|
56065D
|
56065D
56065-1276 PATTERN,RR FENDER,LHPattern,rr fender,lh; |
56065-1276 |
from US $79.74 |
||
|
56065E
|
56065E
56065-1277 PATTERN,RR FENDER,RHPattern,rr fender,rh; |
56065-1277 |
from US $79.74 |
