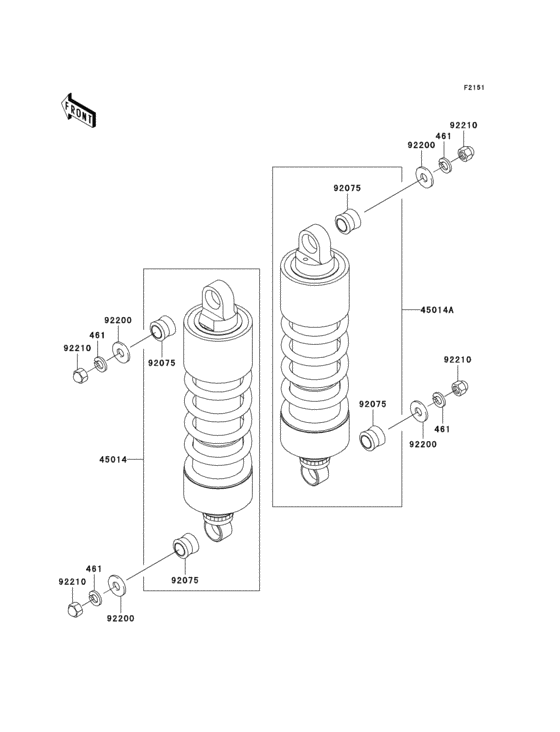

Suspension/shock absorber Diagram Kawasaki VN1500 Vulcan 1500 Classic FI
- Year
- 2005
- Colour
- Ebony (H8)
- Model code
- VN1500-N4
- Sales region
- Europe (General)
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Classic FI/ VN1500 Classic FI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
461
|
461
461S1000 WASHER-SPRING,10MM |
461S1000 |
from US $1.11 |
||
|
45014
|
45014
45014-0088 SHOCK ABSORBER,LH |
45014-0088 |
from US $677.45 |
||
|
45014A
|
45014A
45014-0089 SHOCK ABSORBER,RH |
45014-0089 |
from US $677.45 |
||
|
92075
|
92075
92075-1387 Dampers, shock absorbers |
92075-1387 |
from US $9.35 |
||
|
92200
|
92200
92200-1565 WASHER,10.5X26X2.5 |
92200-1565 |
from US $1.27 |
||
|
92210
|
92210
92210-1288 NUT,CAP,10MM |
92210-1288 |
from US $3.17 |
