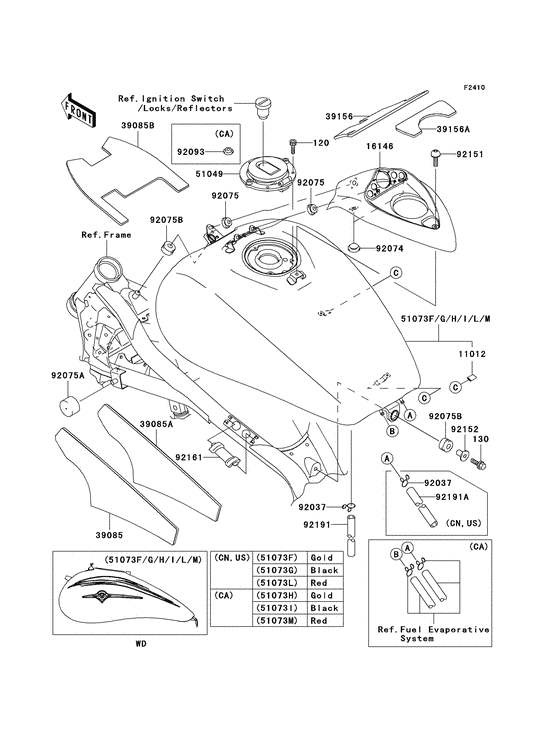

Fuel tank (Vn1500-p1) Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2002
- Model code
- VN1500-P1
- Sales region
- USA
- Engine Capacity
- 1500
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11012
|
11012
11012-1725 CAP |
11012-1725 |
US $3.48 |
||
|
16146
|
16146
16146-1220 COVER-ASSY,FUEL TANKCover-assy,fuel tank; |
16146-1220 |
from US $130.75 |
||
| replacement | |||||
|
16146
|
16146
16146-0006 COVER-ASSY,FUEL TANKCover-assy,fuel tank; |
16146-0006 |
US $133.14 |
||
|
39085
|
39085
39085-1065 PAD-TANK,FUEL TANK,LHPad-tank,fuel tank,lh; |
39085-1065 |
from US $42.49 |
||
|
39085A
|
39085A
39085-1066 PAD-TANK,FUEL TANK,RHPad-tank,fuel tank,rh; |
39085-1066 |
from US $42.49 |
||
|
39085B
|
39085B
39085-1067 PAD-TANK,FUEL TANK,CNPad-tank,fuel tank,cnt; |
39085-1067 |
from US $28.72 |
||
|
39156
|
39156
39156-1700 PAD,FUEL TANK COVER,FPad,fuel tank cover,fr; |
39156-1700 |
from US $27.98 |
||
|
39156A
|
39156A
39156-1701 PAD,FUEL TANK COVER,RPad,fuel tank cover,rr; |
39156-1701 |
from US $20.64 |
||
|
51049
|
51049
51049-1124 CAP-TANK,FUELCap-tank,fuel; |
51049-1124 |
from US $94.40 |
||
| replacement | |||||
|
51049
|
51049
51049-0019 CAP-TANK,FUELCap-tank,fuel; |
51049-0019 |
from US $82.11 |
||
|
51073F
|
51073F
51073-5011-217 TANK-ASSY-FUEL,C.GOLDTank-assy-fuel,c.gold; |
51073-5011-217 |
US $1,428.07 |
||
|
51073G
|
51073G
51073-5012-218
TANK-ASSY-FUEL,P.M.BL
Tank-assy-fuel,p.m.black; |
51073-5012-218 |
— | ||
|
51073H
|
51073H
51073-5013-217 TANK-ASSY-FUEL,C.GOLDTank-assy-fuel,c.gold; |
51073-5013-217 |
from US $1,632.96 |
||
|
51073I
|
51073I
51073-5014-218
TANK-ASSY-FUEL,P.M.BL
Tank-assy-fuel,p.m.black; |
51073-5014-218 |
— | ||
|
51073L
|
51073L
51073-5017-A5 TANK-ASSY-FUEL,C.P.RETank-assy-fuel,c.p.red; |
51073-5017-A5 |
US $1,650.26 |
||
|
51073M
|
51073M
51073-5018-A5 TANK-ASSY-FUEL,C.P.RETank-assy-fuel,c.p.red; |
51073-5018-A5 |
US $1,528.02 |
||
|
120
|
120
120S0512
BOLT-SOCKET,5X12
|
120S0512 |
— | ||
| replacement | |||||
|
120
|
120
120CB0512 BOLT-SOCKET,5X12 |
120CB0512 |
from US $0.95 |
||
|
130
|
130
130H0830 BOLT-FLANGED,8X30Bolt-flanged,8x30; |
130H0830 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BA0830 BOLT-FLANGED,8X30Bolt-flanged,8x30; |
130BA0830 |
from US $1.43 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERClamp,tube; |
92037-147 |
from US $4.95 |
||
|
92074
|
92074
92074-028 PLUG,RUBBERPlug,7x2; |
92074-028 |
from US $2.85 |
||
|
92075
|
92075
92075-1011 DAMPER,REAR FENDER |
92075-1011 |
from US $4.75 |
||
|
92075A
|
92075A
92075-125 DAMPER RUBBER,FL TANKDamper,fuel tank; |
92075-125 |
from US $4.44 |
||
|
92075B
|
92075B
92075-1736 DAMPER |
92075-1736 |
from US $3.96 |
||
|
92093
|
92093
92093-1030 OIL SEAL,FUEL TANKSeal,fuel tank cap; |
92093-1030 |
from US $5.23 |
||
|
92151
|
92151
92151-1940 BOLT,SOCKET,6X12Bolt,socket,6x12; |
92151-1940 |
from US $1.74 |
||
|
92152
|
92152
92152-1393 COLLAR |
92152-1393 |
from US $4.91 |
||
|
92161
|
92161
92161-1245 DAMPER,FUEL TANKDamper,fuel tank; |
92161-1245 |
from US $13.94 |
||
|
92191
|
92191
92191-1272 TUBE,DRAINTube,drain; |
92191-1272 |
from US $16.16 |
||
|
92191A
|
92191A
92191-1529 TUBE,5X10X650Tube,5x10x650; |
92191-1529 |
from US $10.77 |
||
