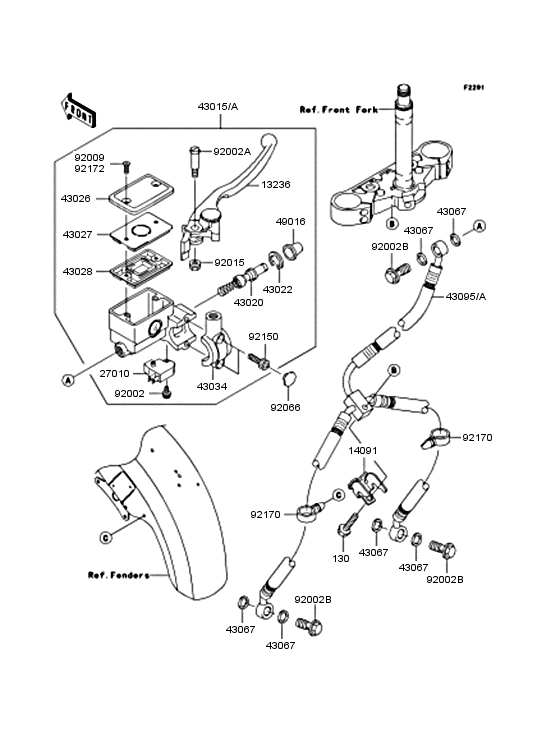

Front master cylinder Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2002
- Colour
- Candy Gold Spark (217)
- Model code
- VN1500-P1
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 000001 - 012000
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0630 BOLT-FLANGED,6X30,BLAボルト(ツバツキ)，6X30 |
130J0630 |
from US $1.74 |
||
| replacement | |||||
|
130
|
130
130BB0630 BOLT-FLANGED,6X30,BLAボルト(ツバツキ)，6X30 |
130BB0630 |
from US $1.27 |
||
|
13236
|
13236
13236-1315 LEVER, FRONT BRAKEレバ-コンプ，フロント ブレ-キ |
13236-1315 |
from US $37.10 |
||
|
14091
|
14091
14091-1450 COVER,3 WAY JOINTカバ-，3ウエイ ジヨイント |
14091-1450 |
from US $6.18 |
||
|
27010
|
27010
27010-1170
SWITCH,BRAKE
スイツチ，ブレ-キ |
27010-1170 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0025 SWITCH,BRAKEスイツチ，ブレ-キ |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-0007 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-0007 |
from US $351.38 |
||
|
43015A
|
43015A
43015-1680 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-1680 |
from US $333.96 |
||
| replacement | |||||
|
43015A
|
43015A
43015-0007 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，FR |
43015-0007 |
from US $351.38 |
||
|
43020
|
43020
43020-1054 FRONT BRAKE PISTON-COMPピストンコンプ(ブレ-キ)，FR |
43020-1054 |
from US $50.63 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERストツパ(ブレ-キ)，ピストン |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1085 CAP-BRAKEキヤツプ(ブレ-キ) |
43026-1085 |
from US $37.70 |
||
|
43027
|
43027
43027-1059 PLATE-DIAPHRAGMプレ-ト(ダイアフラム) |
43027-1059 |
from US $5.70 |
||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLIダイアフラム |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1172 HOLDER-BRAKEホルダ(ブレ-キ) |
43034-1172 |
from US $27.38 |
||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
49091-0001 |
from US $1.27 |
||
|
43095A
|
43095A
43095-1324 HOSE-BRAKEホ-ス(ブレ-キ)，FR |
43095-1324 |
from US $136.73 |
||
| replacement | |||||
|
43095A
|
43095A
43095-0151 HOSE-BRAKEホ-ス(ブレ-キ)，FR |
43095-0151 |
US $116.96 |
||
|
43095
|
43095
43095-1216 HOSE-BRAKEホ-ス(ブレ-キ)，FR |
43095-1216 |
US $130.15 |
||
| replacement | |||||
|
43095
|
43095
43095-0151 HOSE-BRAKEホ-ス(ブレ-キ)，FR |
43095-0151 |
US $116.96 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERカバ-(シ-ル) |
49016-1044 |
from US $10.08 |
||
|
92002
|
92002
92002-1323 BOLTボルト，スクリユ，4X12 |
92002-1323 |
from US $2.53 |
||
|
92002A
|
92002A
92002-1561 BOLT,LEVER SETボルト，レバ- セツト |
92002-1561 |
from US $7.13 |
||
|
92002B
|
92002B
92002-1888
BOLT,OIL,L=23
ボルト，オイル，L=23 |
92002-1888 |
— | ||
| replacement | |||||
|
92002B
|
92002B
92153-0627 BOLT,OIL,L=23ボルト，オイル，L=23 |
92153-0627 |
from US $2.85 |
||
|
92009
|
92009
92009-1795 SCREWスクリユ- |
92009-1795 |
from US $2.53 |
||
| replacement | |||||
|
92009
|
92009
92172-0083 SCREWスクリユ- |
92172-0083 |
from US $2.38 |
||
|
92015
|
92015
92015-1528 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1528 |
from US $3.17 |
||
|
92066
|
92066
92066-1301 PLUGプラグ |
92066-1301 |
from US $3.80 |
||
|
92150
|
92150
92150-1025 BOLT,SOCKET,6MMボルト，ソケツト，6MM |
92150-1025 |
from US $4.44 |
||
|
92170
|
92170
92170-1067 CLAMP,HOSEクランプ |
92170-1067 |
from US $5.07 |
||
|
92172
|
92172
92172-0083 SCREWスクリユ- |
92172-0083 |
from US $2.38 |
||
