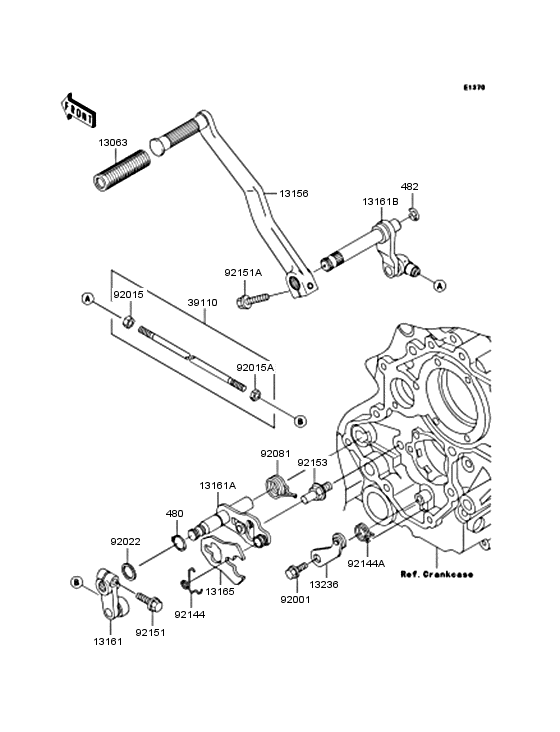

Gear change mechanism Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2002
- Colour
- Candy Gold Spark (217)
- Model code
- VN1500-P1
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 000001 - 012000
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
480
|
480
480J1300 CIRCLIP,13MMトメワ(ジクヨウ)，13MM |
480J1300 |
from US $1.11 |
||
|
482
|
482
482L0100 RING, SNAPトメワ(Eガタ)，10MM |
482L0100 |
from US $1.11 |
||
| replacement | |||||
|
482
|
482
482EA0100 CIRCLIP-TYPE-E,10MMトメワ(Eガタ)，10MM |
482EA0100 |
from US $0.72 |
||
|
13063
|
13063
13063-002 RUBBER, KICK PEDALブツシユ，ペダル |
13063-002 |
from US $3.48 |
||
|
13156
|
13156
13156-1456
LEVER-CHANGE
レバ-(チエンジ) |
13156-1456 |
— | ||
|
13161
|
13161
13161-1253 LEVER-COMP-CHANGE SHAFTレバ-コンプ(チエンジシヤフト) |
13161-1253 |
from US $54.16 |
||
|
13161A
|
13161A
13161-1254 LEVER-COMP-CHANGE SHAFTレバ-コンプ(チエンジシヤフト) |
13161-1254 |
from US $52.96 |
||
|
13161B
|
13161B
13161-1277 LEVER-COMP-CHANGE SHAレバ-コンプ(チエンジシヤフト)，FR |
13161-1277 |
US $58.64 |
||
|
13165
|
13165
13165-1120 PAWLポ-ル |
13165-1120 |
from US $9.98 |
||
|
13236
|
13236
13236-1126 LEVER-COMP,POSITIONレバ-コンプ，ポジシヨン |
13236-1126 |
from US $9.98 |
||
|
39110
|
39110
39110-1119 ROD-ASSY-TIEロツドアツシ(タイ) |
39110-1119 |
from US $9.98 |
||
|
92001
|
92001
92001-1715 BOLTボルト，ギヤ チエンジ レバ- |
92001-1715 |
from US $6.65 |
||
|
92015
|
92015
92015-1443 NUTナツト，LH |
92015-1443 |
from US $2.53 |
||
|
92015A
|
92015A
92015-1444 NUTナツト，RH |
92015-1444 |
from US $2.85 |
||
|
92022
|
92022
92022-1224 WASHER,13.2X20X0.5ワツシヤ，13.2X20X0.5 |
92022-1224 |
from US $3.37 |
||
|
92081
|
92081
92081-1869 SPRING,CHANGE PEDAL Rスプリング，チエンジ ペダル リタ-ン |
92081-1869 |
from US $6.81 |
||
|
92144
|
92144
92144-1029 SPRINGスプリング |
92144-1029 |
from US $5.23 |
||
|
92144A
|
92144A
92144-1140 SPRING,RETURNスプリング，リタ-ン |
92144-1140 |
from US $4.75 |
||
| replacement | |||||
|
92144A
|
92144A
92145-0008 SPRING,RETURNスプリング，リタ-ン |
92145-0008 |
from US $4.05 |
||
|
92151
|
92151
92151-1226 BOLT,6X20ボルト，6X20 |
92151-1226 |
from US $1.27 |
||
|
92151A
|
92151A
92151-1898 BOLTボルト，6X25 |
92151-1898 |
from US $1.90 |
||
|
92153
|
92153
92153-1076 Boltボルト |
92153-1076 |
from US $6.18 |
||
| replacement | |||||
|
92153
|
92153
92154-1838 BOLT,RETURN SPRINGボルト |
92154-1838 |
from US $5.39 |
||
