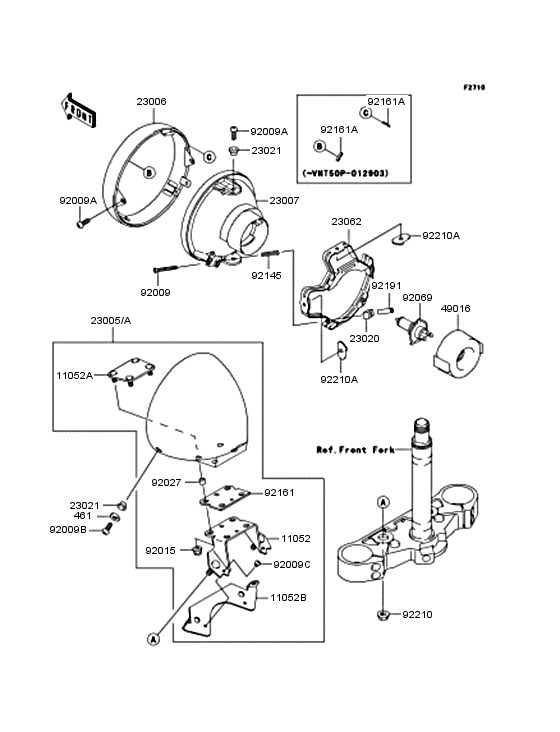

Headlight Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2002
- Colour
- Candy Gold Spark (217)
- Model code
- VN1500-P1
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 000001 - 012000
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
461
|
461
461F0500
WASHER-SPRING
バネザガネ，5MM |
461F0500 |
— | ||
| replacement | |||||
|
461
|
461
461DA0500 WASHER-SPRINGバネザガネ，5MM |
461DA0500 |
from US $0.48 |
||
|
11052
|
11052
11052-1265 BRACKET,HEAD LAMP BODブラケツト，ヘツド ランプ ボデイ |
11052-1265 |
from US $19.48 |
||
|
11052A
|
11052A
11052-1266 BRACKET,HEAD LAMP BODブラケツト，ヘツド ランプ ボデイ |
11052-1266 |
from US $16.95 |
||
|
11052B
|
11052B
11052-1371 BRACKET,HEAD LAMP BODブラケツト，ヘツド ランプ ボデイ |
11052-1371 |
from US $19.48 |
||
|
23005
|
23005
23005-1188 BODY-COMP-HEAD LAMPボデイコンプ(ヘツドランプ) |
23005-1188 |
US $232.32 |
||
| replacement | |||||
|
23005
|
23005
23005-1202 BODY-COMP-HEAD LAMPボデイコンプ(ヘツドランプ) |
23005-1202 |
from US $225.06 |
||
|
23005A
|
23005A
23005-1202 BODY-COMP-HEAD LAMPボデイコンプ(ヘツドランプ) |
23005-1202 |
from US $225.06 |
||
|
23006
|
23006
23006-1079 RIM-LAMPリム(ランプ) |
23006-1079 |
from US $72.56 |
||
| replacement | |||||
|
23006
|
23006
23006-0001 RIM-LAMPリム(ランプ) |
23006-0001 |
from US $90.79 |
||
|
23007
|
23007
23007-1359 Lens,head lampレンズコンプ，ヘツド ランプ |
23007-1359 |
from US $152.59 |
||
|
23020
|
23020
23020018 NUT,4MMナツト，フオ-カス アジヤスト，4MM |
23020018 |
from US $3.17 |
||
|
23021
|
23021
23021010 WASHERワツシヤ |
23021010 |
from US $3.01 |
||
|
23062
|
23062
23062-1131 BRACKET,HEADLAMPブラケツトコンプ，ヘツド ランプ |
23062-1131 |
from US $40.69 |
||
|
49016
|
49016
49016-1203 COVER-SEAL,SOCKETカバ-(シ-ル)，ソケツト |
49016-1203 |
from US $9.98 |
||
|
92009C
|
92009C
92009-1988 SCREW,4X5スクリユ-，4X5 |
92009-1988 |
from US $1.43 |
||
|
92009
|
92009
92009-1816 SCREWスクリユ-，フオ-カス アジヤスト，4X60 |
92009-1816 |
from US $3.17 |
||
|
92009A
|
92009A
92009-1879 SCREW,5X16スクリユ-，5X16 |
92009-1879 |
from US $0.79 |
||
|
92009B
|
92009B
92009-1947 SCREW,5MMスクリユ-，5MM |
92009-1947 |
from US $1.43 |
||
|
92015
|
92015
92015-1385 NUT,CAP,6MMナツト，キヤツプ，6MM |
92015-1385 |
from US $2.69 |
||
|
92027
|
92027
92027-103 COLLARカラ-，6.8X10X6 |
92027-103 |
from US $2.38 |
||
|
92069
|
92069
92069-1002
BULB,12V 60/55W,H4
バルブ，12V 60/55W，H4 |
92069-1002 |
— | ||
| replacement | |||||
|
92069
|
92069
92069-0050 BULB,12V 60/55W,H412V 60/55W,H4 バルブ，12V 60/55W，H4 |
92069-0050 |
from US $18.68 |
||
|
92145
|
92145
92145-1268 SPRING,HEAD LAMP LENSスプリング，ヘツド ランプ レンズ |
92145-1268 |
from US $3.01 |
||
|
92161
|
92161
92161-1212 DAMPER,HEAD LAMP BODYダンパ，ヘツド ランプ ボデイ |
92161-1212 |
from US $10.14 |
||
|
92161A
|
92161A
92161-1271 DAMPERダンパ; - VNT50P-012903 |
92161-1271 |
from US $2.85 |
||
|
92191
|
92191
92191-1217 TUBEチユ-ブ，3.5X5.5X19 |
92191-1217 |
from US $1.43 |
||
|
92210
|
92210
92210-0004 NUT,FLANGED,8MMナツト，フランジ，8MM |
92210-0004 |
from US $3.80 |
||
|
92210A
|
92210A
92210-1060 NUTナツト，スペシヤル，5MM |
92210-1060 |
from US $1.43 |
||
