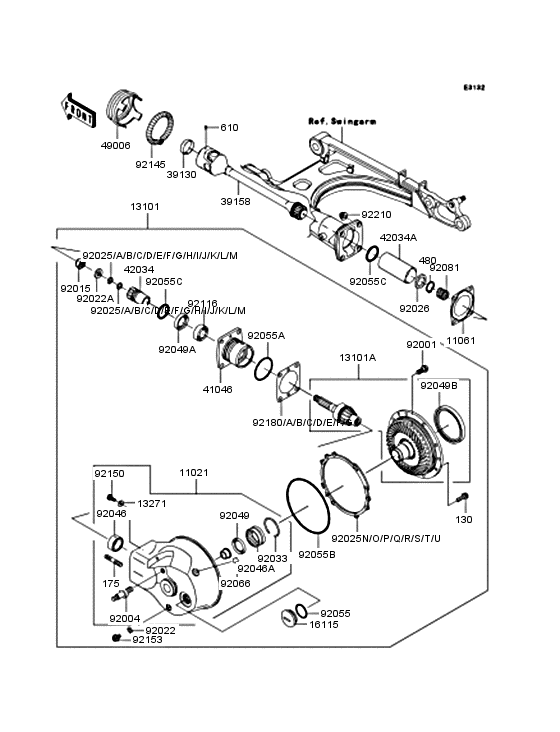

ドライブシャフト/ファイナルギヤ Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2002
- Colour
- Candy Gold Spark (217)
- Model code
- VN1500-P1
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 000001 - 012000
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11021
|
11021
11021-1133 CASE-ASSY,FINAL GEARケ-スアツシ，フアイナル ギヤ |
11021-1133 |
from US $1,334.39 |
||
|
11061
|
11061
11061-1088 GASKET,RR,SWINGARMガスケツト，RR，スイングア-ム |
11061-1088 |
from US $20.64 |
||
|
13101
|
13101
13101-1313 GEAR-ASSY,FINALギヤアツシ，フアイナル |
13101-1313 |
from US $3,310.56 |
||
| replacement | |||||
|
13101
|
13101
13101-0010 GEAR-ASSY,FINALギヤアツシ，フアイナル |
13101-0010 |
from US $2,970.43 |
||
|
13101A
|
13101A
13101-5086 GEAR-ASSYギヤアツシ，ベベル，RR |
13101-5086 |
from US $1,524.60 |
||
|
13271
|
13271
13271-1733 PLATEプレ-ト |
13271-1733 |
from US $2.38 |
||
|
16115
|
16115
16115-1069 CAP-OIL FILLERキヤツプ(オイルフイラ) |
16115-1069 |
from US $20.91 |
||
|
39130
|
39130
39130-1002 SPRING,LEAFスプリング(リ-フ) |
39130-1002 |
from US $3.33 |
||
|
39158
|
39158
39158-1112 SHAFT-ASSY-DRIVE,RR,Sシヤフトアツシ(ドライブ)，RR，スイングア-ム |
39158-1112 |
from US $445.76 |
||
|
41046
|
41046
41046-1103 HOUSING-BEARINGハウジング(ベアリング) |
41046-1103 |
from US $121.48 |
||
|
42034
|
42034
42034-1079 COUPLINGカツプリング |
42034-1079 |
from US $108.91 |
||
|
42034A
|
42034A
42034-1178 COUPLING,PROPELLER SHカツプリング，プロペラ シヤフト，アウタ |
42034-1178 |
from US $70.91 |
||
|
49006
|
49006
49006-1226 BOOT,PROPELLER SHAFTブ-ツ，プロペラ シヤフト |
49006-1226 |
from US $23.91 |
||
|
92001
|
92001
92001-1778 BOLT,FLANGED,10X23ボルト，フランジ，10X23 |
92001-1778 |
from US $3.48 |
||
|
92004
|
92004
92004-1278 STUD,RR,SHOCK ABSORBERスタツド，RR，シヨツクアブソ-バ |
92004-1278 |
US $12.20 |
||
|
92015
|
92015
92015-1059 NUT,16M/Mナツト，16MM |
92015-1059 |
US $7.60 |
||
|
92022
|
92022
92022-1086 WASHERワツシヤ，8.2X16X1 |
92022-1086 |
from US $3.20 |
||
|
92022A
|
92022A
92022-1105 WASHERワツシヤ，16X32X3.2 |
92022-1105 |
US $7.60 |
||
|
92025O
|
92025O
92025-1784 SHIM,T=0.50シム，T=0.50 |
92025-1784 |
from US $8.03 |
||
|
92025E
|
92025E
92025-1219 SHIM,T=0.10シム，T=0.10 |
92025-1219 |
from US $4.44 |
||
|
92025P
|
92025P
92025-1785 SHIM,T=0.60シム，T=0.60 |
92025-1785 |
from US $8.03 |
||
|
92025F
|
92025F
92025-1220 SHIM,T=0.20シム，T=0.20 |
92025-1220 |
from US $4.44 |
||
|
92025Q
|
92025Q
92025-1786 SHIM,T=0.70シム，T=0.70 |
92025-1786 |
from US $8.03 |
||
|
92025G
|
92025G
92025-1221 SHIM,T=0.30シム，T=0.30 |
92025-1221 |
from US $4.44 |
||
|
92025H
|
92025H
92025-1222 SHIM,T=0.50シム，T=0.50 |
92025-1222 |
from US $4.44 |
||
|
92025I
|
92025I
92025-1223 SHIM,T=0.60シム，T=0.60 |
92025-1223 |
from US $6.49 |
||
|
92025J
|
92025J
92025-1224 SHIM,T=0.70シム，T=0.70 |
92025-1224 |
from US $6.49 |
||
|
92025
|
92025
92025-1214 SHIM,T=1.30シム，T=1.30 |
92025-1214 |
from US $7.79 |
||
|
92025K
|
92025K
92025-1225 SHIM,T=0.80シム，T=0.80 |
92025-1225 |
from US $6.49 |
||
|
92025A
|
92025A
92025-1215 SHIM,T=1.32シム，T=1.32 |
92025-1215 |
from US $7.79 |
||
|
92025L
|
92025L
92025-1226 SHIM,T=0.90シム，T=0.90 |
92025-1226 |
from US $6.49 |
||
|
92025B
|
92025B
92025-1216 SHIM,T=1.34シム，T=1.34 |
92025-1216 |
from US $7.79 |
||
|
92025M
|
92025M
92025-1227 SHIM,T=1.00シム，T=1.00 |
92025-1227 |
from US $6.49 |
||
|
92025C
|
92025C
92025-1217 SHIM,T=1.36シム，T=1.36 |
92025-1217 |
from US $7.79 |
||
|
92025N
|
92025N
92025-1783 SHIM,T=0.15シム，T=0.15 |
92025-1783 |
from US $8.24 |
||
|
92025D
|
92025D
92025-1218 SHIM,T=1.38シム，T=1.38 |
92025-1218 |
from US $7.79 |
||
