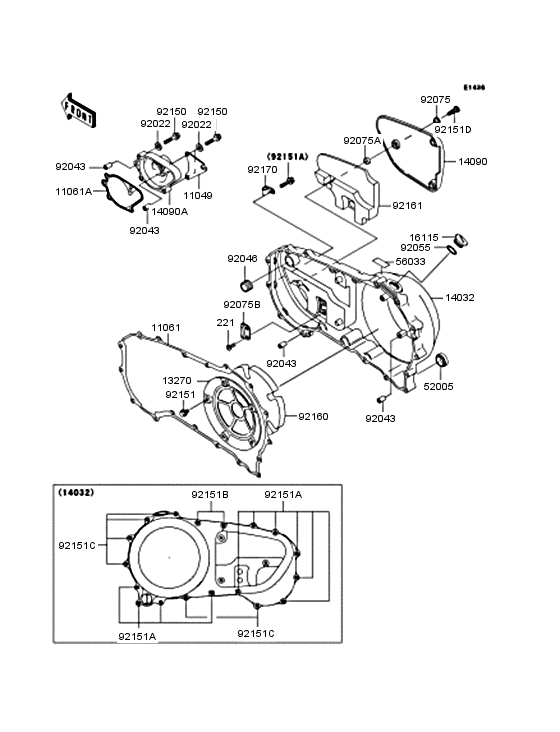

Right engine cover Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2002
- Colour
- Candy Gold Spark (217)
- Model code
- VN1500-P1
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 000001 - 012000
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
221
|
221
221B0612 SCREW-CSK-CROSS,6X12サラコネジ(+ジアナ)，6X12 |
221B0612 |
from US $1.27 |
||
| replacement | |||||
|
221
|
221
221AA0612 SCREW-CSK-CROSS,6X12サラコネジ(+ジアナ)，6X12 |
221AA0612 |
from US $0.95 |
||
|
11049
|
11049
11049-1789 BRACKETブラケツト |
11049-1789 |
from US $5.20 |
||
|
11061
|
11061
11061-1081 GASKET,COVER,LHガスケツト，クラツチ カバ- |
11061-1081 |
from US $27.83 |
||
|
11061A
|
11061A
11061-1172 GASKET,WATER PUMP COVERガスケツト，ウオ-タ ポンプ カバ- |
11061-1172 |
US $10.91 |
||
| replacement | |||||
|
11061A
|
11061A
11061-1527 GASKET,WATER PUMP COVERガスケツト，ウオ-タ ポンプ カバ- |
11061-1527 |
from US $10.30 |
||
|
13270
|
13270
13270-1592 PLATEプレ-ト |
13270-1592 |
from US $16.16 |
||
|
14032
|
14032
14032-1493 COVER-CLUTCHカバ-(クラツチ) |
14032-1493 |
from US $633.07 |
||
|
14090
|
14090
14090-1678 COVER,CLUTCH OUTERカバ-，クラツチ アウタ |
14090-1678 |
from US $91.85 |
||
|
14090A
|
14090A
14090-1932 COVER,WATER PUMPカバ-，ウオ-タ ポンプ |
14090-1932 |
US $53.56 |
||
|
16115
|
16115
16115-1063 CAP-OIL FILLERキヤツプ(オイルフイラ) |
16115-1063 |
from US $20.94 |
||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVELゲ-ジ，オイル レベル |
52005-1009 |
from US $13.15 |
||
|
56033
|
56033
56033-1172 ラベル(マニユアル)，オイル キヤパシテイラベル(マニユアル)，オイル キヤパシテイ |
56033-1172 |
US $5.23 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1ワツシヤ，6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92043
|
92043
92043-1263 PIN,6.2X8X14ピン，6.2X8X14 |
92043-1263 |
from US $0.75 |
||
|
92046
|
92046
92046-1163 BEARING-NEEDLE,HK1212ベアリング(ニ-ドル)，HK1212 |
92046-1163 |
from US $15.05 |
||
|
92055
|
92055
92055-049 O-RING,31MMリング(0)，31.7X2.4 |
92055-049 |
from US $3.37 |
||
|
92075
|
92075
92075-1855 DAMPERダンパ |
92075-1855 |
from US $5.39 |
||
|
92075A
|
92075A
92075-1856 DAMPERダンパ |
92075-1856 |
from US $6.34 |
||
|
92075B
|
92075B
92075-1905 DAMPERダンパ |
92075-1905 |
from US $7.92 |
||
|
92150
|
92150
92150-1021 BOLT,6X30ボルト，6X30 |
92150-1021 |
from US $3.37 |
||
| replacement | |||||
|
92150
|
92150
132BB0630 BOLT,6X30ボルト，6X30 |
132BB0630 |
from US $2.69 |
||
|
92151D
|
92151D
92151-1273 BOLT,L=22.5ボルト，L=22.5 |
92151-1273 |
from US $4.59 |
||
|
92151
|
92151
92151-1064 BOLT,6X10ボルト，6X10 |
92151-1064 |
from US $1.94 |
||
|
92151A
|
92151A
92151-1130
BOLT,6X25
ボルト，6X25 |
92151-1130 |
— | ||
| replacement | |||||
|
92151A
|
92151A
92151-1930 BOLT,6X25ボルト，6X25 |
92151-1930 |
from US $1.77 |
||
|
92151B
|
92151B
92151-1134 BOLT-FLANGED-SMALL,6Xボルト，6X30 |
92151-1134 |
from US $2.48 |
||
| replacement | |||||
|
92151B
|
92151B
132BC0630 BOLT-FLANGED-SMALL,6Xボルト，6X30 |
132BC0630 |
from US $1.25 |
||
|
92151C
|
92151C
92151-1135 BOLT,6X35ボルト，6X35 |
92151-1135 |
from US $3.37 |
||
|
92160
|
92160
92160-1716 DAMPERダンパ |
92160-1716 |
from US $20.79 |
||
|
92161
|
92161
92161-1139 DAMPER,DRAINダンパ- |
92161-1139 |
from US $53.86 |
||
|
92170
|
92170
92170-1804 CLAMPクランプ |
92170-1804 |
from US $3.17 |
||
