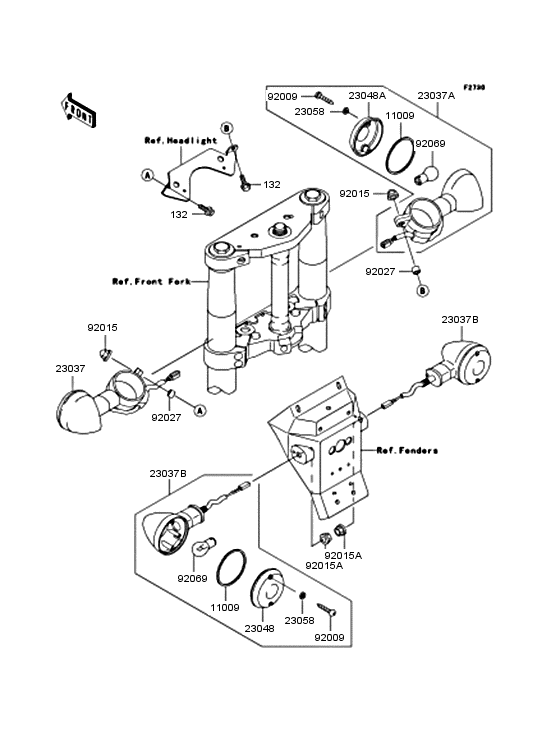

Turn signals Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2002
- Colour
- Candy Gold Spark (217)
- Model code
- VN1500-P1
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 000001 - 012000
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132E0620
BOLT
ボルト(コガタツバツキ) |
132E0620 |
— | ||
| replacement | |||||
|
132
|
132
92002-1607 BOLTボルト(コガタツバツキ) |
92002-1607 |
from US $2.85 |
||
|
11009
|
11009
11009-1413 GASKET,SIGNAL LAMPガスケツト，シグナル ランプ |
11009-1413 |
from US $3.48 |
||
|
23037
|
23037
23037-1408 Lamp-assy-signal,fr,lランプアツシ(シグナル)，FR，LH |
23037-1408 |
US $66.12 |
||
|
23037A
|
23037A
23037-1409 Lamp-assy-signal,fr,rランプアツシ(シグナル)，FR，RH |
23037-1409 |
US $66.12 |
||
|
23037B
|
23037B
23037-1412 LAMP-ASSY-SIGNAL,RRランプアツシ(シグナル)，RR |
23037-1412 |
from US $66.12 |
||
|
23048
|
23048
23048-1065
LENS-SIGNAL LAMP
レンズ(シグナルランプ) |
23048-1065 |
— | ||
| replacement | |||||
|
23048
|
23048
23048-0037 LENS-SIGNAL LAMPレンズ(シグナルランプ) |
23048-0037 |
from US $9.91 |
||
|
23048A
|
23048A
23048-1066
LENS-SIGNAL LAMP
レンズ(シグナルランプ) |
23048-1066 |
— | ||
| replacement | |||||
|
23048A
|
23048A
23048-0036 LENS-SIGNAL LAMPレンズ(シグナルランプ) |
23048-0036 |
from US $9.91 |
||
|
23058
|
23058
23058002 WASHER-PLAIN,4MMラバ- ワツシヤ，プレ-ン，4MM |
23058002 |
from US $2.85 |
||
|
92009
|
92009
92009-1637 SCREW,TAPPING,4X25スクリユ-，タツピング，4X25 |
92009-1637 |
from US $2.53 |
||
|
92015
|
92015
92015-1385 NUT,CAP,6MMナツト，キヤツプ，6MM |
92015-1385 |
from US $2.69 |
||
|
92015A
|
92015A
92015-1428 NUT,FLANGED,10MMナツト，フランジ，10MM |
92015-1428 |
from US $3.01 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDERカラ-，6.8X10X12; シハンヒン |
92027-162 |
from US $4.80 |
||
