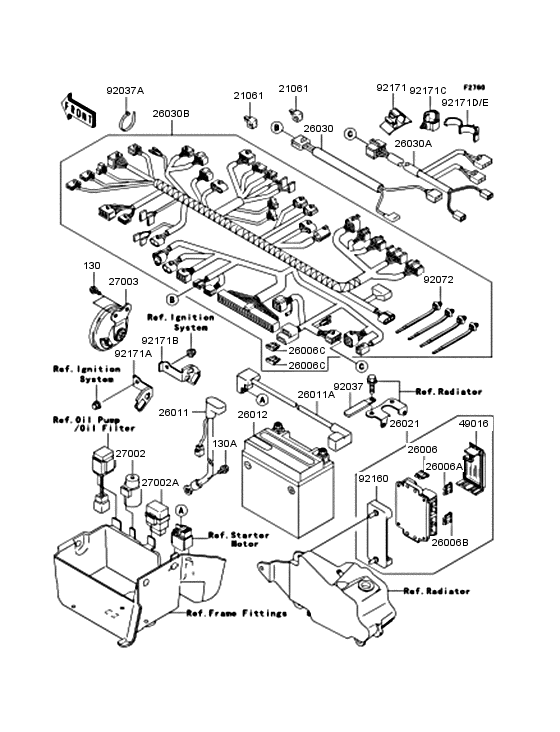

Chassis electrical equipment Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Metallic Midnight Purple (3F)
- Model code
- VN1500-P2
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 012001 -
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0612
BOLT-FLANGED,6X12
ボルト(ツバツキ) |
130J0612 |
— | ||
| replacement | |||||
|
130
|
130
130BB0612 BOLT-FLANGED,6X12ボルト(ツバツキ) |
130BB0612 |
from US $1.43 |
||
|
130A
|
130A
130V0610
BOLT-FLANGED,6X10
ボルト(ツバツキ)，6X10 |
130V0610 |
— | ||
| replacement | |||||
|
130A
|
130A
130BA0610 BOLT-FLANGED,6X10ボルト(ツバツキ)，6X10 |
130BA0610 |
from US $0.79 |
||
|
21061
|
21061
21061-1003 RECTIFIERレクテイフアイア |
21061-1003 |
from US $23.94 |
||
|
26006
|
26006
26006-1006 FUSE,BLADE,30A,GREENヒユ-ズ，30A-G |
26006-1006 |
from US $2.82 |
||
|
26006A
|
26006A
26006-1007 FUSE,BLADE,10A,REDヒユ-ズ，10A-R |
26006-1007 |
from US $3.33 |
||
|
26006B
|
26006B
26006-1061 FUSE,BLADE,15A,BLUEX3ヒユ-ズ，15A-B |
26006-1061 |
from US $3.80 |
||
|
26006C
|
26006C
26006-1069 FUSE,BLADE,15A,BLUEX3ヒユ-ズ，15A-B |
26006-1069 |
from US $4.27 |
||
| replacement | |||||
|
26006C
|
26006C
26006-1061 FUSE,BLADE,15A,BLUEX3ヒユ-ズ，15A-B |
26006-1061 |
from US $3.80 |
||
|
26011
|
26011
26011-1750 WIRE-LEAD,BATTERY(-)ワイヤ(リ-ド)，バツテリ(-) |
26011-1750 |
from US $39.64 |
||
|
26011A
|
26011A
26011-1764 WIRE-LEAD,BATTERY(+)ワイヤ(リ-ド)，バツテリ(+) |
26011-1764 |
from US $30.97 |
||
|
26012
|
26012
26012-1373 バツテリ，mf，ftz16-bs，12v 18aバツテリ，MF，FTZ16-BS，12V 18AH |
26012-1373 |
US $445.76 |
||
| replacement | |||||
|
26012
|
26012
XFFTZ16BS
バッテリ
バツテリ，MF，FTZ16-BS，12V 18AH |
XFFTZ16BS |
— | ||
|
26021
|
26021
26021-0002
JUNCTION BOX
ジヤンクシヨンボツクス |
26021-0002 |
— | ||
| replacements | |||||
|
26021
|
26021
26021-0065
JUNCTION BOX
ジヤンクシヨンボツクス |
26021-0065 |
— | ||
|
26021
|
26021
26021-0076
Junction Box
ジヤンクシヨンボツクス |
26021-0076 |
— | ||
|
26030
|
26030
26030-1450 HARNESS,SUBハ-ネス，サブ |
26030-1450 |
from US $15.52 |
||
|
26030A
|
26030A
26030-1877 HARNESS,RRハ-ネス，RR |
26030-1877 |
from US $73.75 |
||
|
26030B
|
26030B
26030-1880 ハ-ネス，メインハ-ネス，メイン |
26030-1880 |
US $487.87 |
||
|
27002
|
27002
27002-1051 RELAY-ASSYリレ-アツシ |
27002-1051 |
from US $40.09 |
||
|
27002A
|
27002A
27002-1113 RELAY-ASSY,SIGNAL LAMリレ-アツシ，シグナル ランプ |
27002-1113 |
from US $88.86 |
||
|
27003
|
27003
27003-1431
HORN
ホ-ン |
27003-1431 |
— | ||
|
49016
|
49016
49016-0005 COVER-SEAL,FUSEカバ-(シ-ル)，ヒユーズ |
49016-0005 |
from US $10.12 |
||
|
92037
|
92037
92037-1069
CLAMP
クランプ，L=60 |
92037-1069 |
— | ||
| replacement | |||||
|
92037
|
92037
92171-0652 CLAMPクランプ，L=60 |
92171-0652 |
from US $1.27 |
||
|
92037A
|
92037A
92037-1173 CLAMP,SPARK PLUG CAPクランプ |
92037-1173 |
from US $2.69 |
||
|
92072
|
92072
92072-1414 BANDバンド |
92072-1414 |
from US $1.74 |
||
|
92160
|
92160
92160-1650 DAMPER,JUNCTION BOXダンパ，ジヤンクシヨンボツクス |
92160-1650 |
from US $9.03 |
||
|
92171
|
92171
92171-1269 CLAMP,HARNESSクランプ，ハ-ネス |
92171-1269 |
from US $3.20 |
||
|
92171A
|
92171A
92171-1369 CLAMP,IGNITION COIL,Lクランプ，イグニシヨン コイル，LH |
92171-1369 |
from US $6.49 |
||
| replacement | |||||
|
92171A
|
92171A
92171-0204 CLAMP,IGNITION COIL,Lクランプ，イグニシヨン コイル，LH |
92171-0204 |
from US $5.44 |
||
|
92171B
|
92171B
92171-1370 CLAMP,IGNITION COIL,Rクランプ，イグニツシヨン コイル，RH |
92171-1370 |
from US $6.81 |
||
|
92171C
|
92171C
92171-1415 CLAMP,C CRIP,DIA=13クランプ，ダイア=13 |
92171-1415 |
from US $1.27 |
||
|
92171D
|
92171D
92171-1423 CLAMP,DIA=10クランプ，DIA=10 |
92171-1423 |
from US $2.38 |
||
|
92171E
|
92171E
92171-1424 CLAMP,DIA=15クランプ，DIA=15 |
92171-1424 |
from US $2.38 |
||
