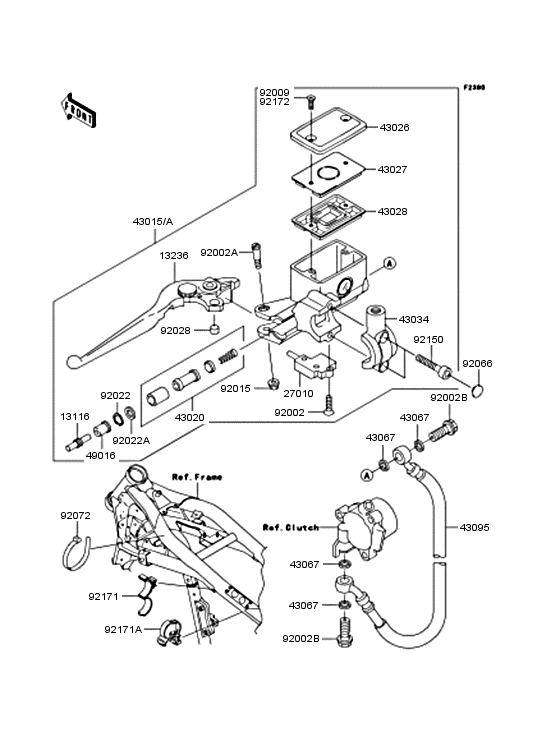

Clutch master cylinder Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Metallic Midnight Purple (3F)
- Model code
- VN1500-P2
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 012001 -
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13116
|
13116
13116-1110 ROD-PUSH,MASTER CYLINロツド(プツシユ) |
13116-1110 |
from US $21.84 |
||
|
13236
|
13236
13236-1316 LEVER-COMP,CLUTCHレバ-コンプ，クラツチ |
13236-1316 |
from US $40.84 |
||
|
27010
|
27010
27010-1406 SWITCH,CLUTCHスイツチ，クラツチ |
27010-1406 |
from US $23.19 |
||
|
43015
|
43015
43015-0006 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，クラツチ |
43015-0006 |
from US $351.38 |
||
|
43015A
|
43015A
43015-1679 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，クラツチ |
43015-1679 |
from US $333.96 |
||
| replacement | |||||
|
43015A
|
43015A
43015-0006 CYLINDER-ASSY-MASTER,シリンダアツシ(マスタ)，クラツチ |
43015-0006 |
from US $351.38 |
||
|
43020
|
43020
43020-1055 PISTON-COMP-BRAKE,CLUTCHピストンコンプ(ブレ-キ)，クラツチ |
43020-1055 |
from US $50.63 |
||
|
43026
|
43026
43026-1085 CAP-BRAKEキヤツプ(ブレ-キ) |
43026-1085 |
from US $37.70 |
||
|
43027
|
43027
43027-1059 PLATE-DIAPHRAGMプレ-ト(ダイアフラム) |
43027-1059 |
from US $5.70 |
||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLIダイアフラム |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1172 HOLDER-BRAKEホルダ(ブレ-キ) |
43034-1172 |
from US $27.38 |
||
|
43067
|
43067
43067-001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
43067-001 |
US $4.12 |
||
| replacement | |||||
|
43067
|
43067
49091-0001 WASHER-SEAL,10.1X14.5ワツシヤ-(オイル)，10.5X15X1.5 |
49091-0001 |
from US $1.27 |
||
|
43095
|
43095
43095-1215 HOSE-BRAKE,CLUTCHホ-ス(ブレ-キ)，クラツチ |
43095-1215 |
from US $144.36 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERカバ-(シ-ル) |
49016-1044 |
from US $10.08 |
||
|
92002
|
92002
92002-1325 BOLTスクリユ，4X16 |
92002-1325 |
from US $5.23 |
||
|
92002A
|
92002A
92002-1561 BOLT,LEVER SETボルト，レバ- セツト |
92002-1561 |
from US $7.13 |
||
|
92002B
|
92002B
92002-1888
BOLT,OIL,L=23
ボルト，オイル，L=23 |
92002-1888 |
— | ||
| replacement | |||||
|
92002B
|
92002B
92153-0627 BOLT,OIL,L=23ボルト，オイル，L=23 |
92153-0627 |
from US $2.85 |
||
|
92009
|
92009
92009-1795 SCREWスクリユ- |
92009-1795 |
from US $2.53 |
||
| replacement | |||||
|
92009
|
92009
92172-0083 SCREWスクリユ- |
92172-0083 |
from US $2.38 |
||
|
92015
|
92015
92015-1528 NUT,FLANGED,6MMナツト，フランジ，6MM |
92015-1528 |
from US $3.17 |
||
|
92022
|
92022
92022-1605 WASHER,PISTONサ-クリツプ |
92022-1605 |
from US $3.01 |
||
|
92022A
|
92022A
92022-1606 WASHER,PISTONワツシヤ，ピストン |
92022-1606 |
from US $2.85 |
||
|
92028
|
92028
92028-1310 BUSHING,MASTER CYLINDブツシング，マスタ シリンダ |
92028-1310 |
from US $9.35 |
||
|
92066
|
92066
92066-1301 PLUGプラグ |
92066-1301 |
from US $3.80 |
||
|
92072
|
92072
92072-1197 BANDバンド，L=365 |
92072-1197 |
from US $5.07 |
||
|
92150
|
92150
92150-1025 BOLT,SOCKET,6MMボルト，ソケツト，6MM |
92150-1025 |
from US $4.44 |
||
|
92171
|
92171
92171-1424 CLAMP,DIA=15クランプ，DIA=15 |
92171-1424 |
from US $2.38 |
||
|
92171A
|
92171A
92171-1440 CLAMP,HOSEクランプ，ホ-ス |
92171-1440 |
from US $4.91 |
||
|
92172
|
92172
92172-0083 SCREWスクリユ- |
92172-0083 |
from US $2.38 |
||
