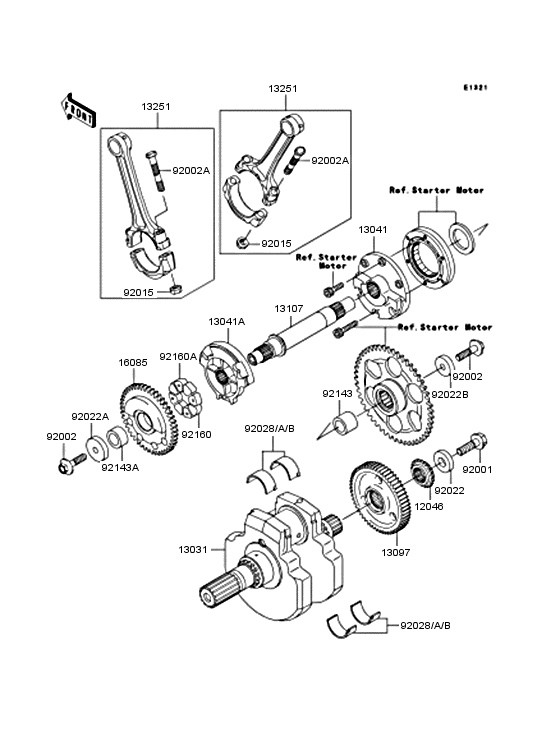

Crankshaft Diagram Kawasaki VN1500 Vulcan 1500 Mean Streak
- Year
- 2003
- Colour
- Metallic Midnight Purple (3F)
- Model code
- VN1500-P2
- Sales region
- Japan
- Engine Capacity
- 1500
- Frame
- VNT50P 012001 -
- Engine
- VNT50AE 000031 -
- Model
- Vulcan 1500 Mean Streak/ VN1500 Mean Streak
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12046
|
12046
12046-1103 SPROCKET,WATER PUMPスプロケツト，ウオ-タ ポンプ |
12046-1103 |
from US $64.42 |
||
|
13031
|
13031
13031-1457 Crankshaft-compクランクシヤフトコンプ |
13031-1457 |
from US $1,356.78 |
||
|
13041
|
13041
13041-1089 BALANCERバランサ，RH |
13041-1089 |
from US $125.07 |
||
|
13041A
|
13041A
13041-1093 BALANCER,LHバランサ，LH |
13041-1093 |
from US $157.08 |
||
|
13097
|
13097
13097-1369 GEAR-PRIMARY SPUR,56Tギヤ(プライマリスパ-)，56T |
13097-1369 |
from US $131.35 |
||
|
13107
|
13107
13107-1352 SHAFT,BALANCERシヤフト，バランサ |
13107-1352 |
from US $194.57 |
||
| replacement | |||||
|
13107
|
13107
13107-1524 SHAFT,BALANCERシヤフト，バランサ |
13107-1524 |
from US $174.18 |
||
|
13251
|
13251
13251-1080-EE Rod-assy-connecting,eロツドアツシ(コネクテイング)，E |
13251-1080-EE |
from US $323.78 |
||
| replacements | |||||
|
13251
|
13251
13251-1080-II ROD-ASSY-CONNECTING,Iロツドアツシ(コネクテイング)，E |
13251-1080-II |
from US $332.51 |
||
|
13251
|
13251
13251-1080-GG ROD-ASSY-CONNECTING,Iロツドアツシ(コネクテイング)，E |
13251-1080-GG |
from US $332.51 |
||
|
16085
|
16085
16085-1286 GEAR,BALANCERギヤ，バランサ |
16085-1286 |
from US $277.33 |
||
|
92001
|
92001
92001-1146 BOLT,12X40ボルト，フランジ，12X40 |
92001-1146 |
from US $6.34 |
||
|
92002
|
92002
92002-1296 BOLT,10X40ボルト，フランジ，10X40 |
92002-1296 |
from US $6.65 |
||
|
92002A
|
92002A
92002-1896 BOLT,CONNECTING RODボルト，コネクテイング ロツド |
92002-1896 |
from US $7.44 |
||
|
92015
|
92015
92015-1643 NUT,CONNECTING RODナツト，コネクテイング ロツド |
92015-1643 |
from US $6.02 |
||
|
92022
|
92022
92022-1904 WASHER,GENERATORワツシヤ，ゼネレ-タ |
92022-1904 |
from US $8.71 |
||
|
92022A
|
92022A
92022-1905 WASHERワツシヤ，LH，10X40X9 |
92022-1905 |
from US $8.71 |
||
|
92022B
|
92022B
92022-1906 WASHERワツシヤ，10X33X9 |
92022-1906 |
from US $8.71 |
||
|
92028
|
92028
92028-1474 BUSHING,CONNECTING ROD,BLUEブツシング，コネクテイング ロツド，ブル- |
92028-1474 |
from US $14.26 |
||
|
92028A
|
92028A
92028-1475 BUSHING,CONNECTING ROD,BLACKブツシング，コネクテイング ロツド，フラツク |
92028-1475 |
from US $14.26 |
||
|
92028B
|
92028B
92028-1476 BUSHING,CONNECTING ROD,BROWNブツシング，コネクテイング ロツド，ブラウン |
92028-1476 |
from US $14.26 |
||
|
92143
|
92143
92143-1093 COLLAR,20X30X24カラ-，20X30X24 |
92143-1093 |
from US $22.29 |
||
|
92143A
|
92143A
92143-1821
COLLAR,20X31X16
カラ-，20X31X16 |
92143-1821 |
— | ||
|
92160
|
92160
92160-1725 DAMPERダンパ |
92160-1725 |
from US $5.86 |
||
|
92160A
|
92160A
92160-1726 DAMPERダンパ |
92160-1726 |
from US $6.05 |
||
